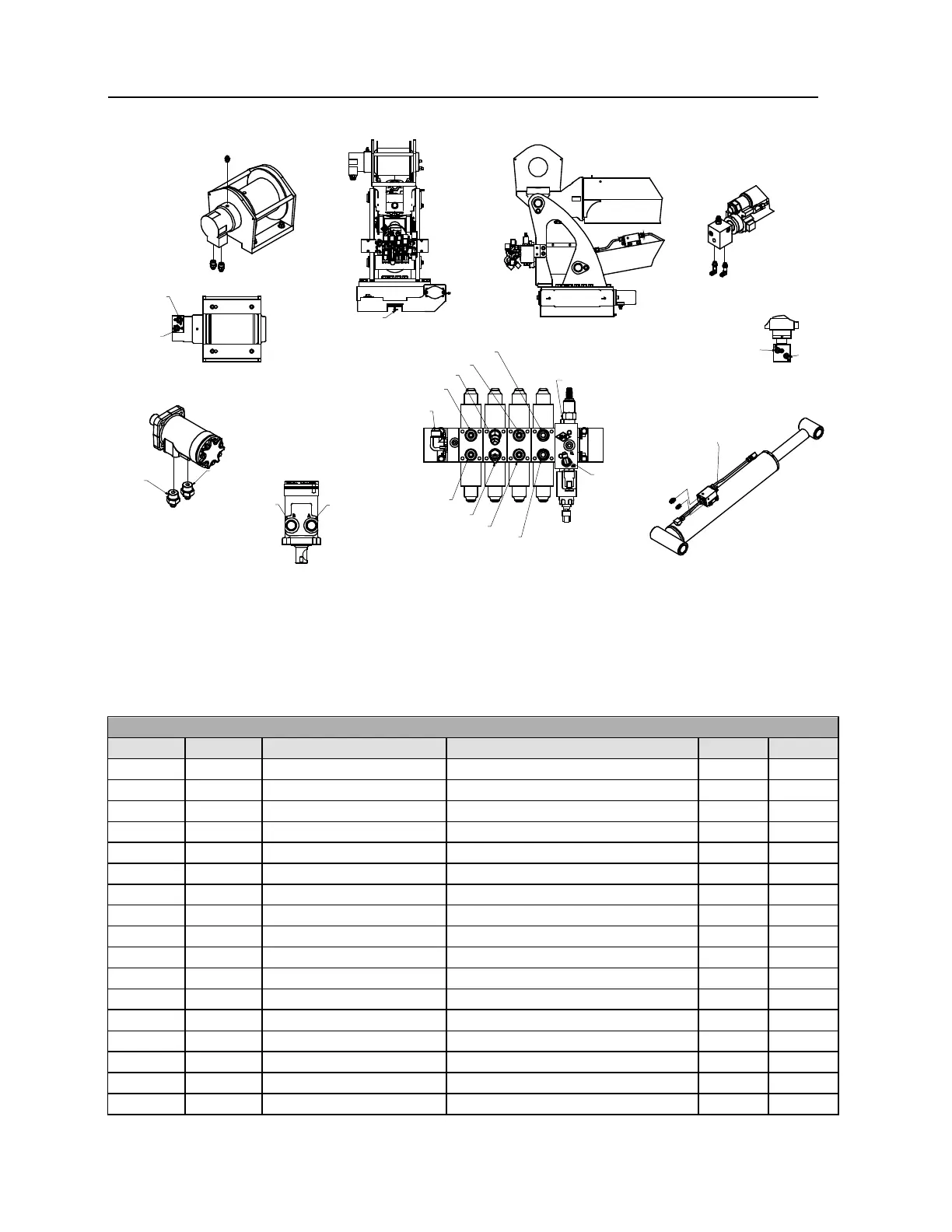

84 Model 10000 30-foot Parts & Specifications Manual Part # 99905185
WINCH
ROTATION
HYD MOTOR
HYD MOTOR
PORT IDENTIFICATION
VALVE BANK
PORT IDENTIFICATION
PORT A
PORT B
PORT B
PORT A
PORT B
PORT A
RETURN (TANK)
ROTATION CW
MAIN CYL (RETRACT)
EXT CYL (RETRACT)
WINCH (DOWN)
PRESSURE
CASE DRAIN
ROTATION CCW
MAIN CYL (EXTEND)
EXT CYL (EXTEND)
WINCH (UP)
MAIN CYLINDER
PORT IDENTIFICATIONS
COUNTERBALANCE
VALVE
PORT E
(EXTEND)
PORT R
(RETRACT)
WINCH (BOTTOM VIEW)
GREASE HOSE
NOTES:
1 INSTALL SLEEVE #32, 60350141, ON EXTENSION CYLINDER, LOWER CYLINDER AND ROTATION HOSES.
2 INSTALL SLEEVE #33, 60350142, ON WINCH HOSES AND PRESSURE & RETURN VALVE BANK HOSES.
3 INSTALL SLEEVE #34, 60350105, ON PRESSURE & RETURN HOSES AND ROTATION HOSES THROUGH
THE MAST.
99905596 PARTS LIST
ITEM
PART #
DESCRIPTION
DETAILS
KIT #
QTY
1.
91725088
HYDRAULIC KIT-A40-60
2.
73734472
VALVE BANK
1 REF
3.
72532355
ADAPTER
M STR/M JIC 6 6
#1
1
5.
72532357
ADAPTER
M STR/M JIC 6 8
#1
1
7.
72532359
ADAPTER
M STR/M JIC 10 8
#1
2
9.
72532670
ELBOW
M JIC/45/F JIC 8 8
#1
1
11.
72532700
ELBOW
M STR/90/M JIC XLG 6 6
#1
2
13.
72533583
ELBOW
M STR/45/M JIC 8 6
#1
1
14.
72533613
ADAPTER
M STR/M JIC 10 6
#1
2
15.
72533648
SWIVEL
M JIC/90/M JIC 8 8
#1
3
16.
72534412
SWIVEL
M JIC/90/M JIC 10 10
#1
1
17.
72533490
ADAPTER
M BSPP/M JIC 4 4
#1
1
18.
51395121
HOSE-AA
.13 X 13.50 (2-2) 100R17
#1
1
19.
51396017
HOSE-FJ
.50 X 30.00 (8-8) 100R17
#1
1
20.
51397080
HOSE-FJ
.62 X 30.00 (10-10) 100R17
#1
1
21.
51397081
HOSE-FZ
.50 X 31.50 (8-8) 100R17
#1
1
22.
51397082
HOSE-FJ
.50 X 31.00 (8-8) 100R17
#1
1
