8 Specifications and Model Selection
-
109
-
8
8.2.3 Overall Dimensions of MD500T200G to MD500T450G

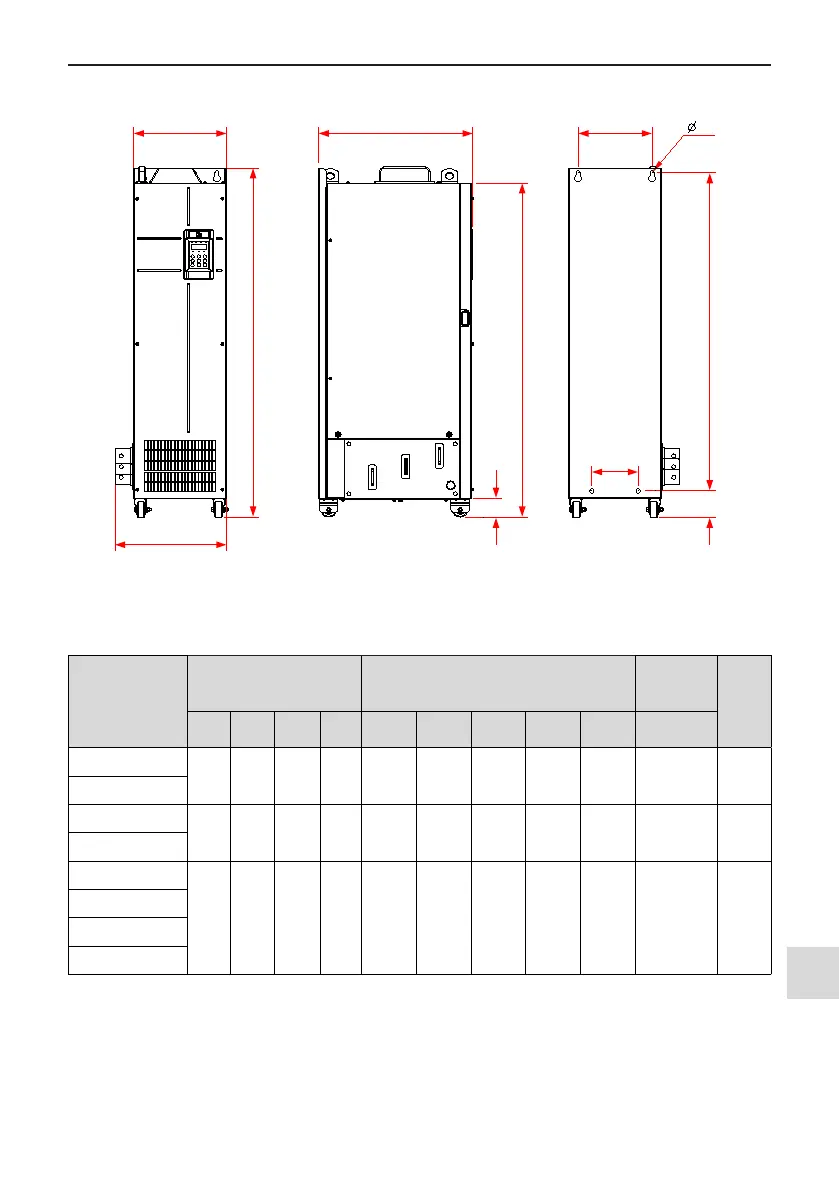

Figure 8-13 Mounting Dimensions of MD500T200G to MD500T450G
Table 8-4 Mounting Hole Dimensions of MD500T200G to MD500T450G
AC Drive Model
Hole Dimensions (mm) Overall Dimensions (mm)
Hole
Diameter
(mm)
Weight
(kg)
A1 A2 B1 B2 H H1 W W1 D D1
MD500T200G
240 150 1035 86 1086 1134 300 360 500 Ø13 110
MD500T220G
MD500T250G
225 185 1175 97 1248 1284 330 390 545 Ø13 155
MD500T280G
MD500T315G
240 200 1280 101 1355 1405 340 400 545 Ø16 185
MD500T355G
MD500T400G
MD500T450G
To Next Page
