Inovance MD500

8 Specifications and Model Selection
-
110
-
8
8.2.4 Overall Dimensions of MD500T200G-L to MD500T450G-L
D1
62
B2
B1
D A1
A2
W
W1
H1 H

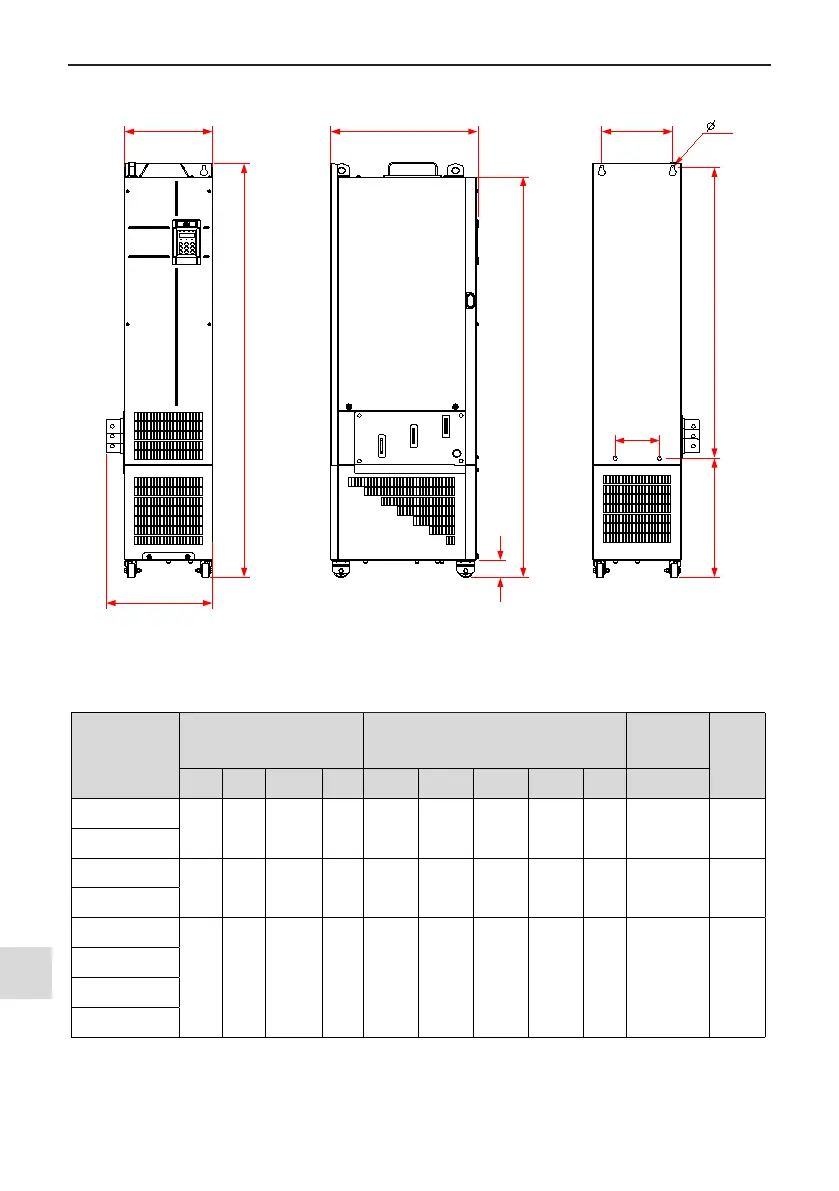

Figure 8-14 Mounting Dimensions of MD500T200G to MD500T450G
Table 8-5 Mounting hole dimensions of MD500T200G-L to MD500T450G-L (with reactor base)
AC Drive Model
Hole Dimensions (mm) Overall Dimensions (mm)
Hole
Diameter
(mm)
Weight
(kg)
A1 A2 B1 B2 H H1 W W1 D D1
MD500T200G-L
240 150 1035 424 1424 1472 300 360 500 Ø13 160
MD500T220G-L
MD500T250G-L
225 185 1175 435 1586 1622 330 390 545 Ø13 215
MD500T280G-L
MD500T315G-L
240 200 1280 432 1683 1733 340 400 545 Ø16 245
MD500T355G-L
MD500T400G-L
MD500T450G-L
