Inovance MD500

Appendix A
-
125
-
Appendix A Expansion Optional Cards
The MD500 AC Drive supports abundant eld buses, different types of encoders and custom programming via
connection with the expansion optional cards.
This chapter introduce the optional cards installation guideline for MD38IO, MD38TX1 and PG cards. For other
more information, please refer to the Advanced User Manual with MD500.
A.1 Installation and Function Guidelines
A.1.1 Installation
The MD500 AC Drive support two types I/O cards, one type PC programming card, four types led bus cards
(Modbus-RTU, Probus-DP2, CANLink, CANOpen) and seven types PG cards. Please remove the front cover
before installation, and refer to chapter 3.1.5 for the details.
Mounting position
of extension card
MD38IO1
MD38IO2
MD38DP2
MD38PC1
MD38CAN1
MD38CAN2
MD38TX1
MD38PGMD / MD38PG1 / MD38PG4 / MD38PG5 / MD38PG5D / MD38PG6 / MD38PG6D
Extension
communication
card
PG card
Function extension card
Mounting position
of PG card

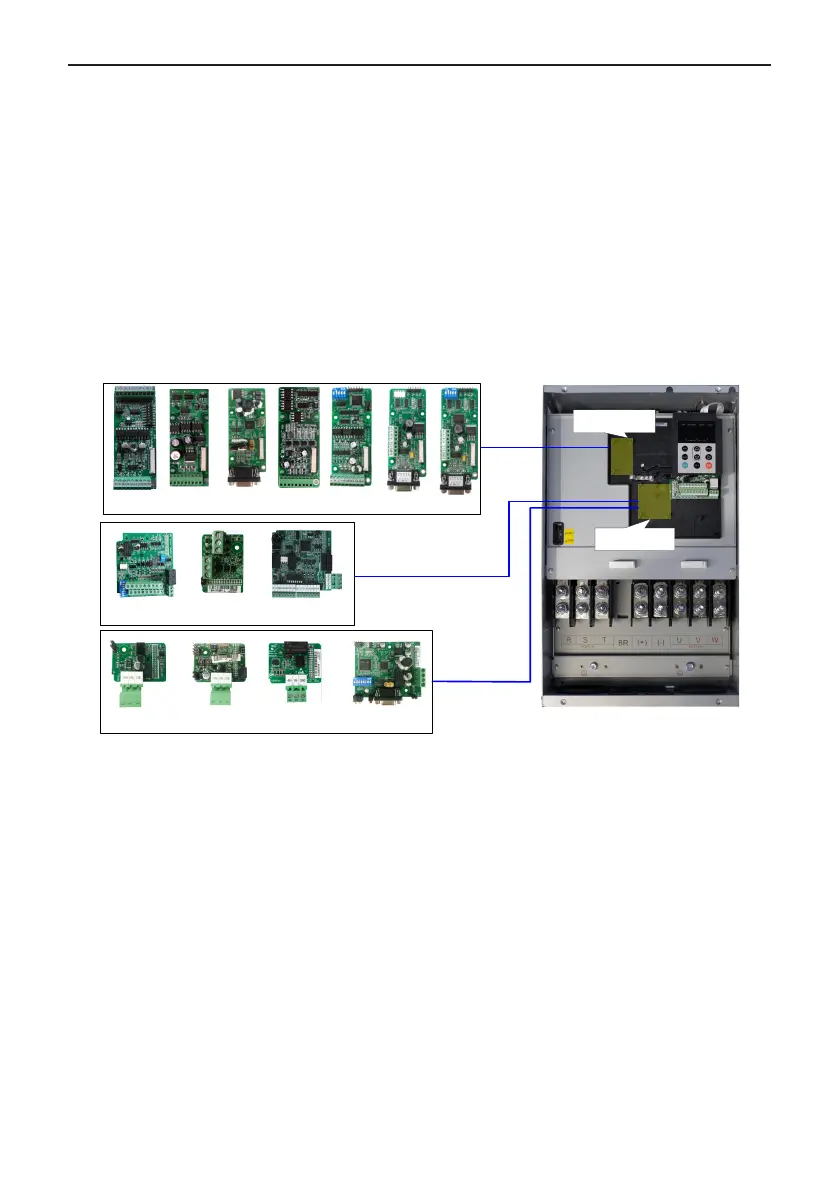

Figure A-1 Mounting positions of extension cards
