Inovance MD500

8 Specifications and Model Selection
-
118
-
8

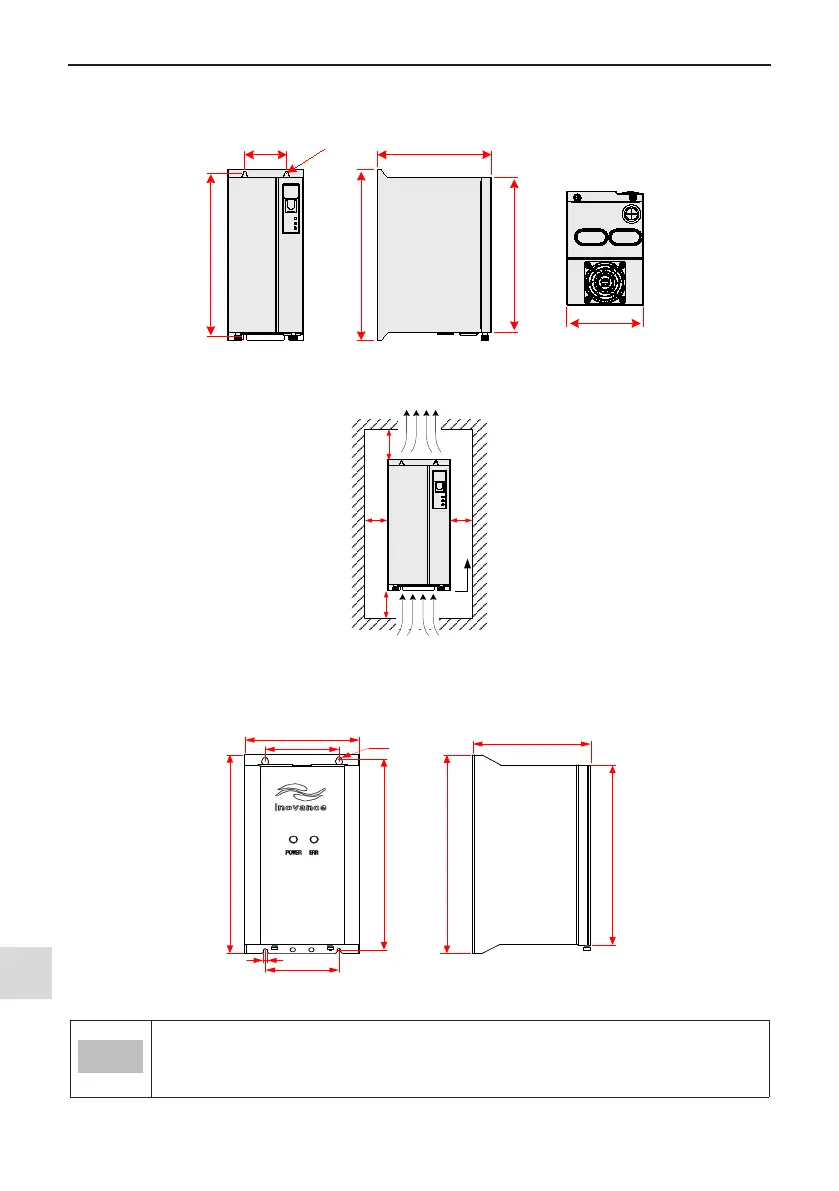

8.5.4 Appearance and Mounting Dimensions of Braking Units
1. Mounting Dimensions of MDBUN Series Braking Unit (mm)
Φ
5
60
236
247
165
224
110
Figure 8-18 Mounting dimensions of MDBUN series braking unit (mm)
Upright
Hot wind
Cold wind
100
50 50
100
Figure 8-19 Mounting clearance of MDBUN series braking unit (mm)
2. Mounting Dimensions of MDBU Series Braking Unit (mm)
187
430
2-Φ6
415
120
2-6
192
120
430
390
Figure 8-20 Mounting dimensions of MDBU series braking unit (mm)
Note
● For use and installation of MDBUN series braking unit, refer to the MDBUN Series Braking Unit User
Guide.
● For use and installation of MDBU series braking unit, refer to the MDBU Series Braking Unit User
Guide.
