Inovance MD500

8 Specifications and Model Selection
-
112
-
8
■

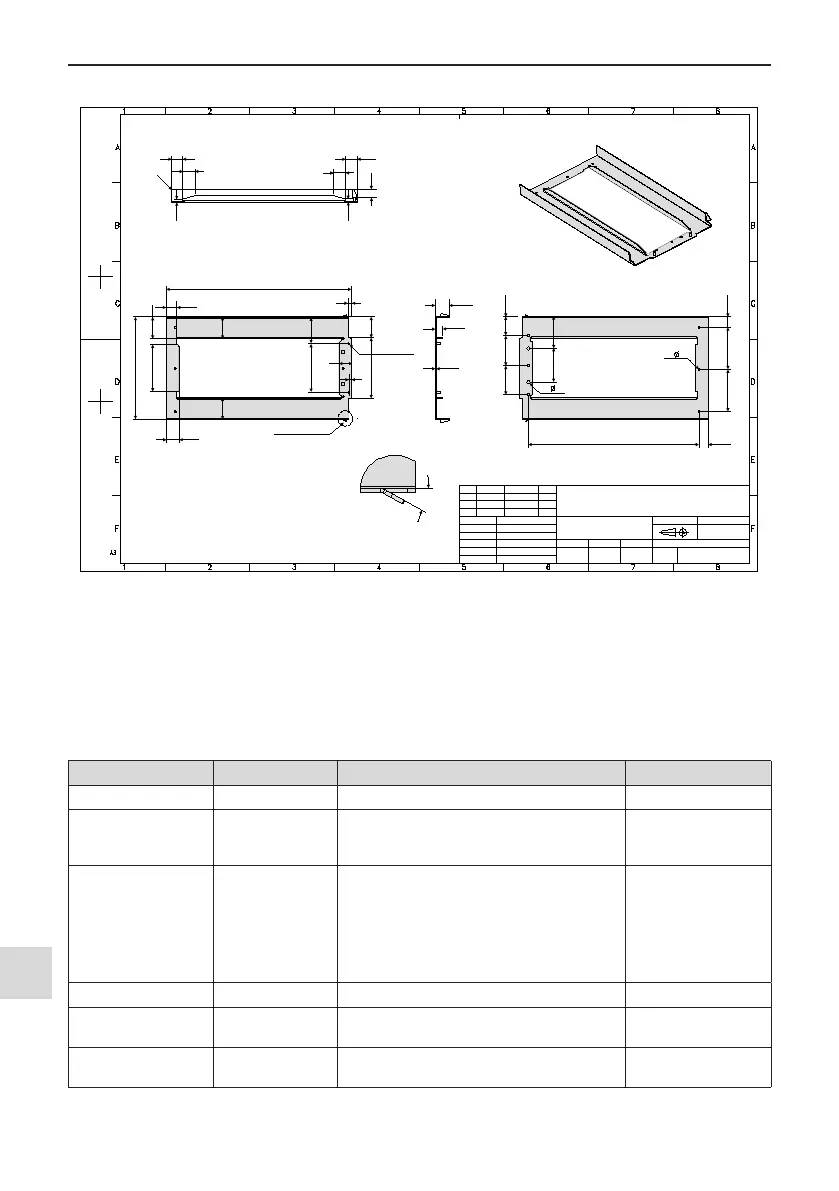

Dimensions of mounting bracket of MD500T315G(-L) to MD500T450G(-L)
30°
Detail A
Scale: 11
42.5
22.5
2.5
Note:
Cabinet mounting bracket
MD500T315G(-L) to MD500T450G(-L)
Change order No.
Date
Designed by
Audited by
Processed by
Standardized by
Approved by
Projection symbol Code
Scale Page 1 of 1
Product
All rights reserved
580 (780)
32.5
9
39.5
62
221
180
17.5
65
65
100.5
65
144
2-FH-M6 x 15
View detail A
345
9
40
2 - 10
100
100
66.5
104.4
125
525 (725)
27.5
125 125 41.5
6 - 6
35.5
38
R5
38
35.5
10.5
27
10.5
20180105
Version
Change mode
1: 5
1. This DIN rail figure is applicable to the PS cabinet:
width 800 x depth 600 (width 800 x depth 800).
2. It is applicable to a standard PS cabinet of depth of
800 mm.
Figure 8-17 Dimensions of mounting bracket of MD500T315G(-L) to MD500T450G(-L) (factory standard)
8.3 Options
Peripherals and options include braking units and function extension cards, as listed in the following table. For
use of each option, refer to its user manual. If you need to purchase the following options, specify the required
option in the order.
Table 8-6 Options of MD500 Series AC drive
Parameter Name MD500 Model Functions Remark
Onboard braking unit Marked by "B" 0.4 kW to 75 kW -
External braking unit
MDBUN and
MDBU
90 kW or above
Multiple braking units
of 90 kW or above are
connected in parallel.
I/O extension card 1 MD38IO1
Provides:
Five extra DI terminals
An analog input (AI3)
A relay output
A digital output
An analog output
Can connect to PT100 and PT1000
Available for models of
15 kW or above
I/O extension card 2 MD38IO2 Provides three extra DI terminals. Available for all models
RS-485 communication
card
MD38TX1
Provides isolated Modbus communication
adapter card
Available for all models
CANlink communication
card
MD38CAN1 CANlink communication adapter card Available for all models
