Inovance MD500

3 Installation and Wiring
-
21
-
3
3.1.2 Mounting Clearance and Orientation
1. Mounting Clearance
2. The mounting clearance varies with the power rating of the AC drive.
■
Mounting of a single drive
B1
B1
A1 A1
C1
Upright
(Side view)(Front view)
0.4kW~15kW
30kW~37kW
A1≥10
45kW~160kW
A1≥50
A1≥
50
Clearance Requirements
Power Rating
Clearance Requirements (mm)
B1≥100
B1≥200
B1≥300
C1≥40
C1≥40
C1≥40
18.5kW~22kW
A1≥10 B1≥200 C1≥40

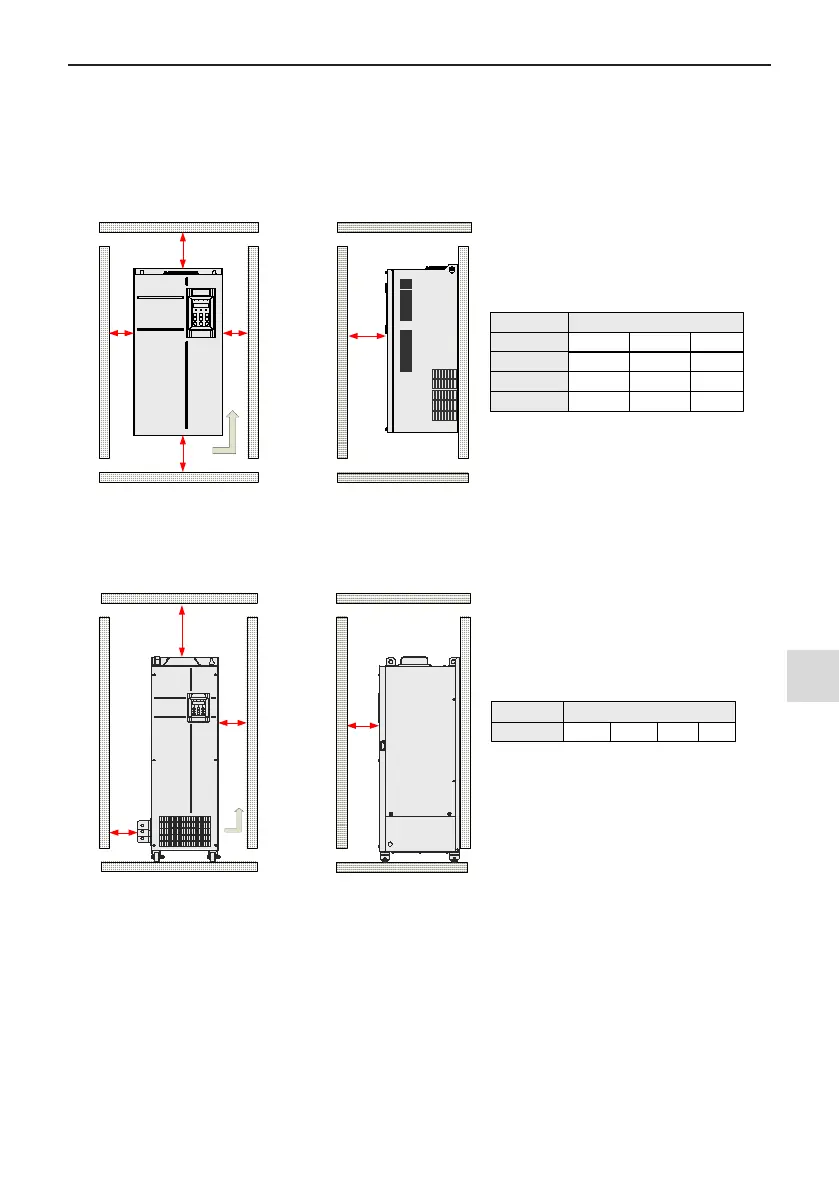

Figure 3-2 Mounting clearance of a single drive (MD500T0.4GB to MD500T160G)
B2
A2
D
Upright
(Side view)(Front view)
C2
D≥20
Clearance Requirements
Power Rating
Clearance Requirements (mm)
200kW~450kW
A2≥10 B2≥250
C2≥20
Figure 3-3 Mounting clearance of a single drive (MD500T200G(-L) to MD500T450G(-L))
■
Clearance for multi-drive installation
The AC drive is designed with the cooling air ow direction from bottom to top. When installing several AC
drives within a cabinet, line up the tops of the drives.
