Appendix A
-
140
-
A.5.6 Extension Differential PG Card with Frequency Dividing (MD38PG6 and MD38P-
G6D)

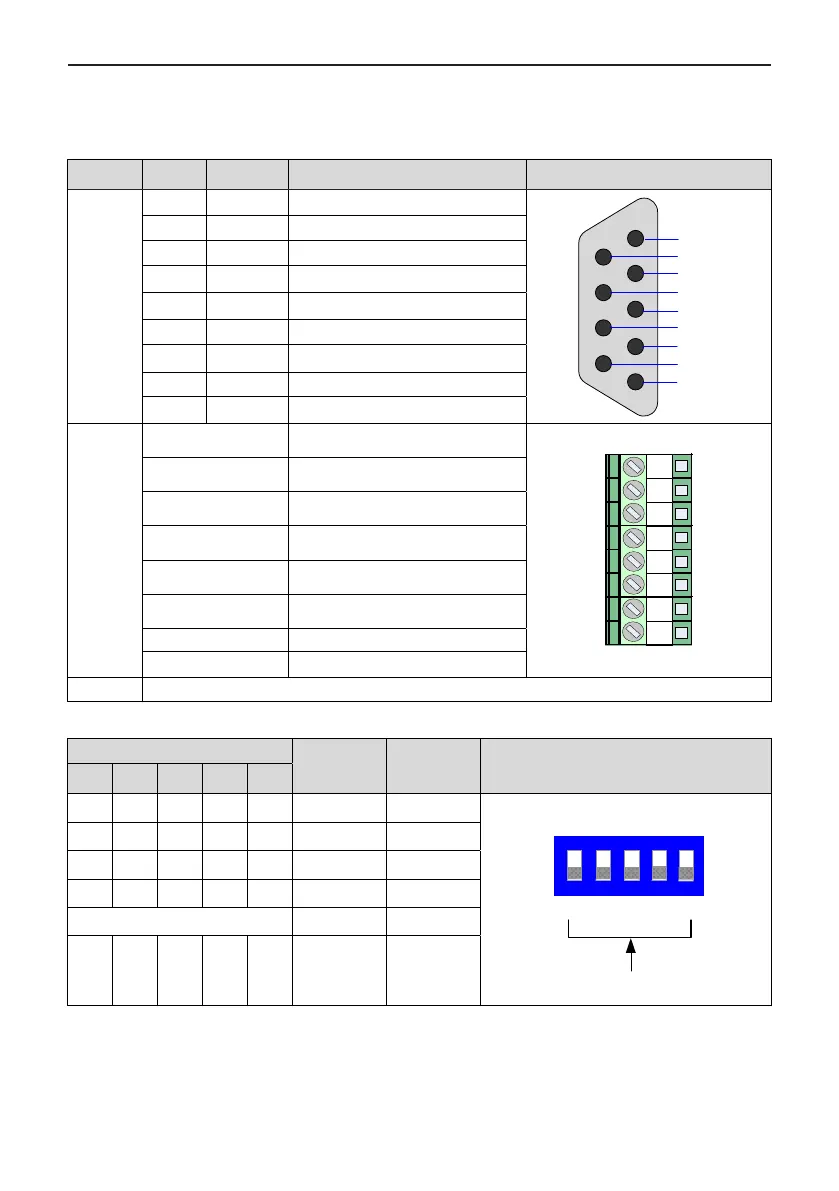

Table A-16 Terminal descriptions of MD38PG6 and MD38PG6D
Terminal Pin Denition Function Description Terminal Arrangement
J3
1 A+ Encoder signal A positive
1
2
3
4
5
6
7
8
9
A+
A-
NC
+5V
B+
COM
B
-
Z-
Z+
2 A- Encoder signal A negative
3 B+ Encoder signal B positive
4 B- Encoder signal B negative
5 Z+ Encoder signal Z positive
6 Null Vacant internally
7 +5V Encoder 5V power supply positive
8 COM Encoder power supply negative
9 Z- Encoder signal Z negative
J7, J8
OA+
Frequency dividing output signal A
positive
OA- OB+ OB- OZ+ OZ-
COM
OA+
PE
OA-
Frequency dividing output signal A
negative
OB+
Frequency dividing output signal B
positive
OB-
Frequency dividing output signal B
negative
OZ+
Frequency dividing output signal Z
positive
OZ-
Frequency dividing output signal Z
negative
COM Signal power ground
PE Shield connecting point
CN1 18-pin FFC interface, connecting to J4 on the control board of the AC drive
Table A-17 Descriptions of DIP Switch of MD38PG6D
DIP Switch Setting
Value
Frequency
Dividing
Coefcient
DIP Switch
1 2 3 4 5
0 0 0 0 0 0 No output
ON
1
2
3
4 5
1 2 3 4 5
Frequency dividing
coefficient setting
S1
0 0 0 0 1 1 No output
0 0 0 1 0 2 4
0 0 0 1 1 3 6
1 1 1 1 1 31 62
