8 Specifications and Model Selection
-
123
-
8
MD500 Model
Power
Capacity
(kVA)
Input Current
(A)
Output
Current
(A)
Applicable Motor
Thermal
Design Power
(kW)
(kW) (HP)
MD500T250G(-L) 404 441 465 250 340 5.06
MD500T280G(-L) 453 495 520 280 380 5.33
MD500T315G(-L) 517 565 585 315 430 5.69
MD500T355G(-L) 565 617 650 355 485 6.31
MD500T400G(-L) 629 687 725 400 545 6.91
MD500T450G(-L) 716 782 820 450 615 7.54
8.8 Mounting Dimensions of External Operating Panels
1. MD32NKE1
MD32NKE1 is the external operating panel applicable to the drive. It adopts the LED display and has the same
operation mode as the operating panel on the drive. It is optional and easy to debug. The following gures
show the appearance and mounting dimensions of MD32NKE1.
10
116
水晶头
104
27
15
2*Ø3.5
76
54
13.25
49.5
27
15
92.5
11
5
6.5
71
Crystal head

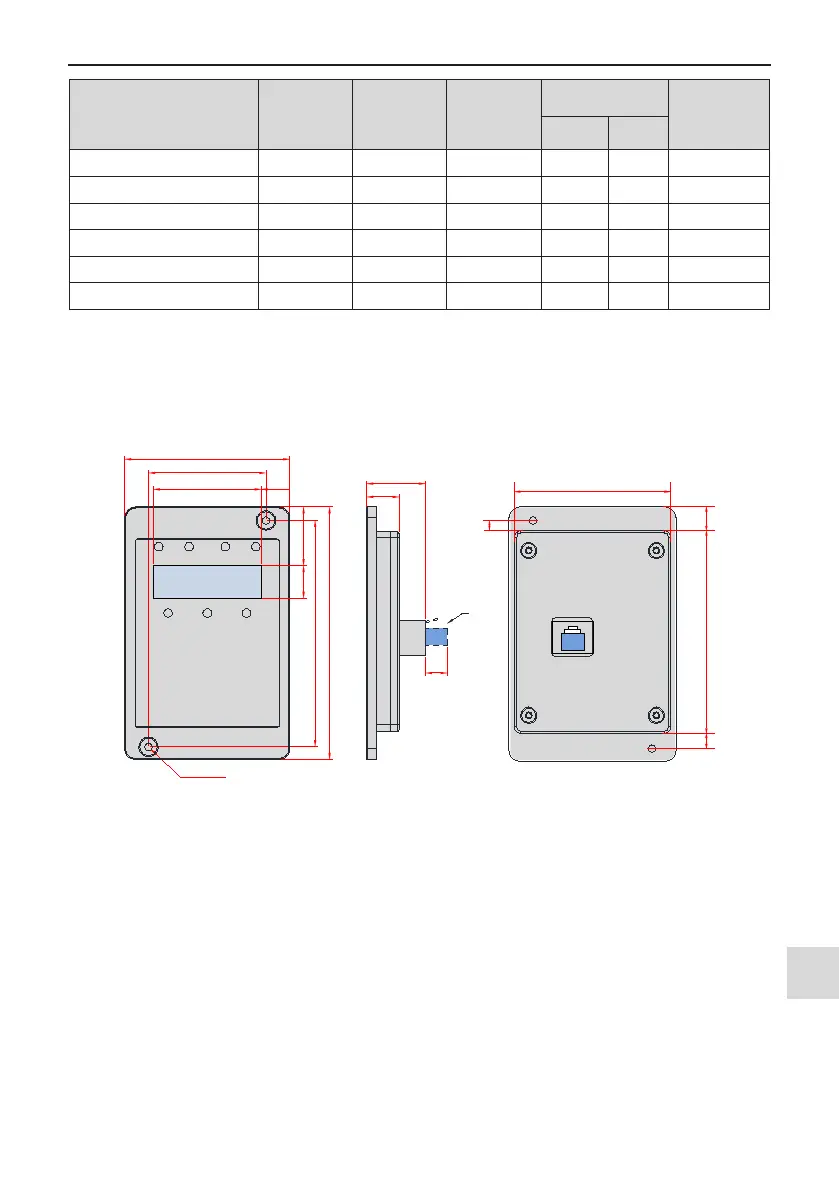

Figure 8-23 Mounting dimensions of MD32NKE1
