Inovance MD500

4 Panel Operation
-
53
-
4
4.2.5 Overall Arrangement of Function Parameters

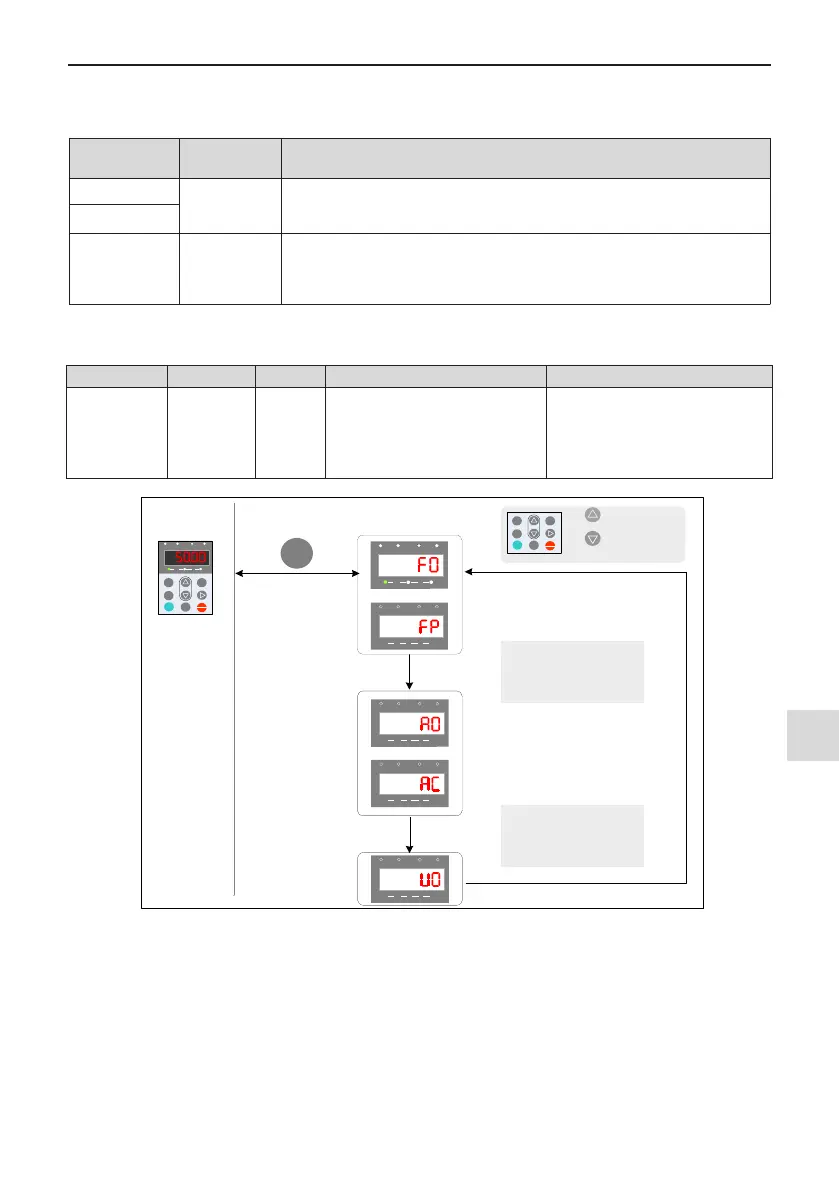

Table 4-4 Overall arrangement of function parameters
Function Code
Group
Function
Description
Description
F0 to FP
Basic function
parameters
Displays parameters such as running commands, frequency commands, motor
parameters, control modes, AI/AO characteristic correction, and optimization
control
A0 to AC
U0
Monitoring
function
parameter
group
Displays basic monitoring parameters
Before viewing function parameters, set FP-02 (SELECTED) to see whether the function parameter group is
displayed. The following gure shows how to view the function parameter group number:
Function Code Denition Default Setting Range Description
FP-02
Parameter
display
property
11
Unit's digit: Group U is displayed.
0: Not displayed; 1: Displayed
Ten's digit: Group A is displayed.
0: Not displayed; 1: Displayed
The value you set for function
parameter GP-02 determines
whether the operating panel displays
groups U and A.
PRG
...
...
MF.K
RUN
STOP
RES
QUICK
PRG
ENTER
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
MF.K
RUN
STOP
RES
QUICK
PRG
ENTER
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT
FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
Status (default
screen
)
Level I menu
(function code group)
When FP-02 = 1x
When FP-02=x1
When FP-02 = 0x (tens
position is 0) , Group A
is not displayed.
When FP-02 = x0 (unit
position is 0) , Group U
is not displayed.
Press to cycle through function
code groups in positive sequence.
Press to cycle through function
code groups in reserve sequence.
Figure 4-4 View the function parameter group number
