4
The following example shows how to modify F3-02 from 10.00 Hz to 15.00 Hz.
(Return
)
PRG
ENTER
ENTER
ENTER
RUN
LOCAL
/
REMOT
FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV
TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV TUNE
/
TC
RPM
%
A VHz
RUN
LOCAL
/
REMOT FED
/
REV
TUNE
/
TC
RPM
%
A VHz

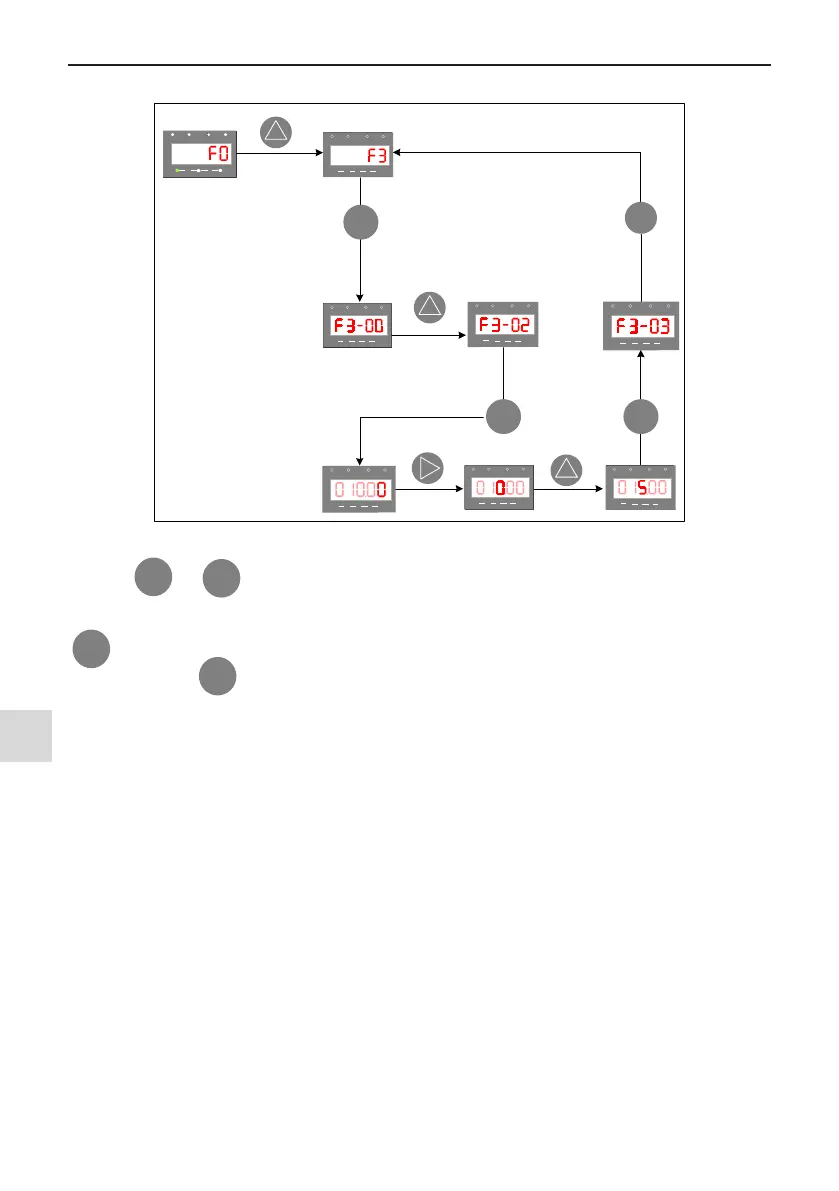

Figure 4-3 How to modify the parameter value
(a) Press
PRG
or
ENTER
from a Level III menu to return to a Level II menu. The difference between the two
keys is:
ENTER
is used to save the parameter value you have set, return to Level II menu and then select the next
function parameter.
PRG
is used to return to Level II menu without saving the parameter value and remain at
the current function code.
(b) When operating in Level III menus, if the parameter does not include a ashing digit, then it is not possible
to modify that parameter. There are two possible reasons for this:
(1) The function parameter you have selected is read-only. This is because the display is showing the AC drive
model; the display is showing an actual parameter detected by the system; or the display is showing a running
record parameter.
(2) The displayed function parameter cannot be modied while the AC drive is in the RUNNING status. You can
modify these types of parameter only when the AC drive is in the STOP status.
