1 Product Information
-
11
-
1
1 Product Information
Safety Information
Caution
◆
Do not lift/carry the drive by carrying the front cover. Failure to comply may result in
personal injury.
◆
Follow proper electrostatic discharge (ESD) procedures when operating the drive.
Failure to comply will risk damaging the internal circuit of the drive.
1.1 Nameplate and Model
MODEL: MD500T
55GB
INPUT: 3PH AC 380-480V 106.0A 50Hz/60Hz
OUTPUT:
3PH AC 0-480V 112.0A 0-500Hz 55kW
Suzhou Inovance Technology Co., Ltd.
S/N: Serial Number
AC drive mode
Rated input
Rated output
Serial No.
Nameplate
AC drive model
Series
Applicable
Motor (
kW)
MD500
55
T
B
Mark
Type of
Applicable Motor
Blank None
Mark
Braking Unit
.
Mark
T
Three-phase
380V~480V
Mark Voltage Class
B
Inbuilt
Braking Unit
…
…
22
22
…
…
450
450
…
…
G
General Type
G
-INT International
Mark
Version
-(a)
Other variants
-T
Inbuilt output DC reactor,
applicable to
MD500T18.5G~MD500T22G
Blank
None
Mark
Output Reactor
-L
Inbuilt output AC reactor,
applicable to MD500T200G-
L~MD500T450G-L
Note (a): The model number may
include a suffix "XXXXXXXXXX",
Where "XXXXXXXXXX" can be blank
or combination of any alphanumeric
And/or symbols that represents
customer identity.
-INT
MD500

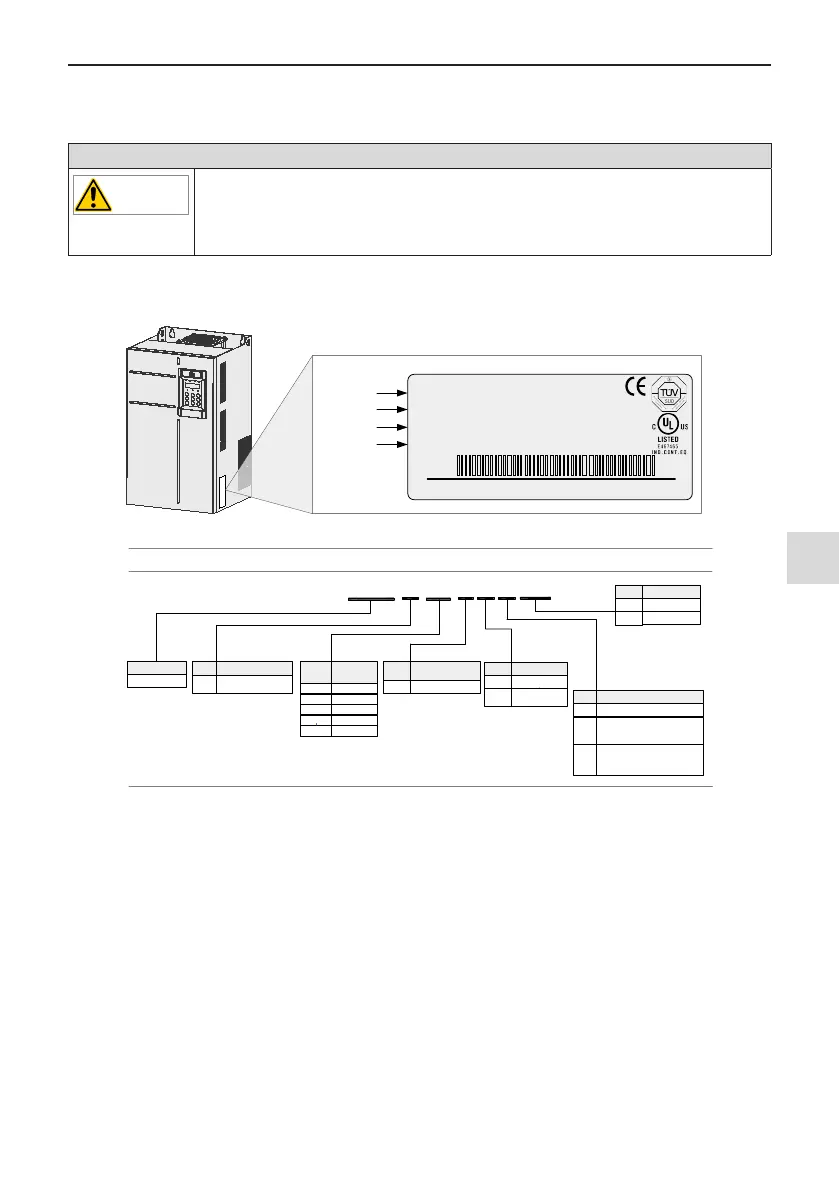

Figure 1-1 Product naming and nameplate
