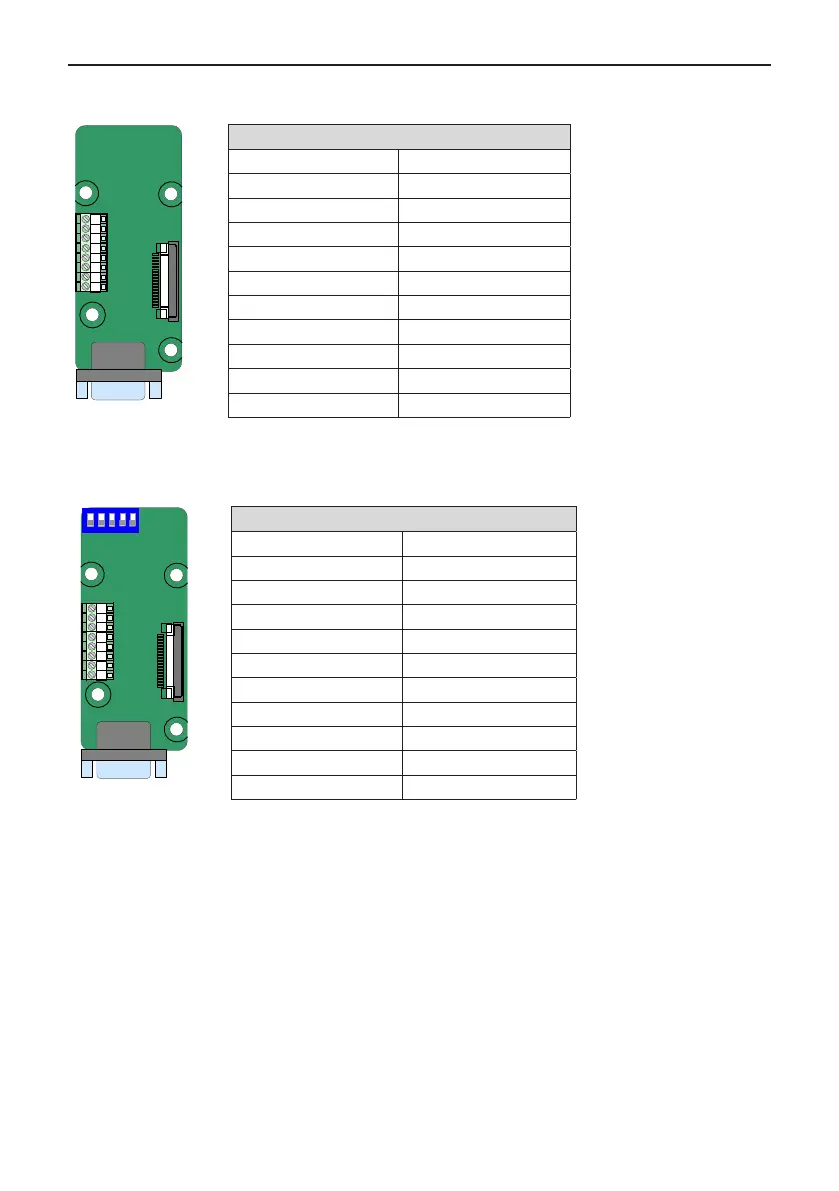

MD38PG6
J3
CN1
OA- OB+ OB- OZ+ OZ-
COM
OA+
PE
MD38PG6 Specication
User interface J3 DB9 female plug
Pluggable Ye s
Cable specication > 22AWG
Max. frequency 500kHz
Differential input limit ≤ 7 V
User interface J7, J8 Oblique terminal block
Clearance 3.5 mm
Screw Flathead
Pluggable No
Frequency dividing rate 500kHz
Frequency dividing 1:1
MD38PG6D
J3
CN1
A- B+ B- Z+ Z-
COM
A+
ON
1
2
3
4
5
PE
MD38PG6D Specication
User interface J3 DB9 female plug
Pluggable Ye s
Cable specication > 22AWG
Max. frequency 500kHz
Differential input limit ≤ 7 V
User interface J7, J8 Oblique terminal block
Clearance 3.5 mm
Screw Flathead
Pluggable No
Frequency dividing rate 500kHz
Frequency dividing 2 to 62 (even number)
