Inovance MD500

3 Installation and Wiring
-
25
-
3
Through-hole
mounting
bracket
Secure the drive to the front of the
supporting surface
.
The mounting bracket
is mounted.
Secure the through-hole mounting brackets
to the left and right of the housing.
The drive is mounted.
Through-
hole
mounting
bracket
1
2
3
4

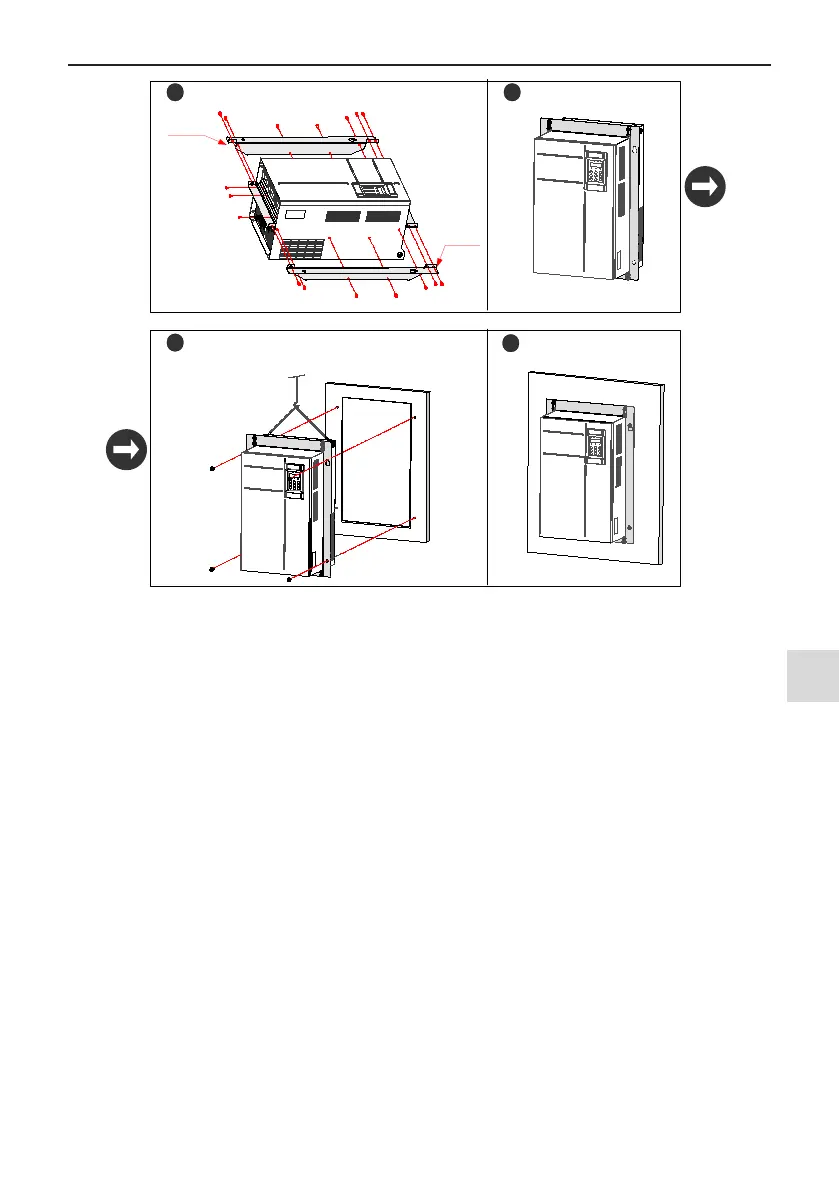

Figure 3-10 Through hole mounting of MD500T45G(B) to MD500T160G
