40
Connecting AV Components
—Continued
• When connecting a CD player to the DTR-10.5, make connections using digital or analog terminals. Before making
connections, refer to page 32 for correct connections. This section shows the connection example when you use the
default audio input assignment settings. However, when you use coaxial cables for digital audio signals, connect the
CD player to any terminal between the AUDIO IN DIGITAL COAXIAL 1 and 6, and remember to configure the
audio input assignment settings in the Audio Assign sub-menu (See page 94).
• When connecting a turntable, use the PH terminal. The PH terminal on the DTR-10.5 is designed for turntables that
use a moving magnet (MM) cartridge. When you want to use a turntable with a moving coil (MC) cartridge, connect
the turntable through a step-up transformer or head amplifier.
• If you assign other terminals to the PHONO input source, you need to configure the audio input assignment settings
in the Audio Assign sub-menu (See page 94).
• When a turntable is equipped with a ground wire, connect the wire to the GND terminal on the DTR-10.5. However,
some turntables may produce noise when the ground wire is connected to the DTR-10.5. In such a case, you do not
have to connect the ground wire.
• When you want to perform analog recording of the audio signal or operate your -compatible Integra products via
connections with the DTR-10.5, you have to make analog audio signal connections. Connect the audio output
terminals on the source device to the AUDIO IN terminals on the DTR-10.5 using analog audio cables (RCA/
phono).

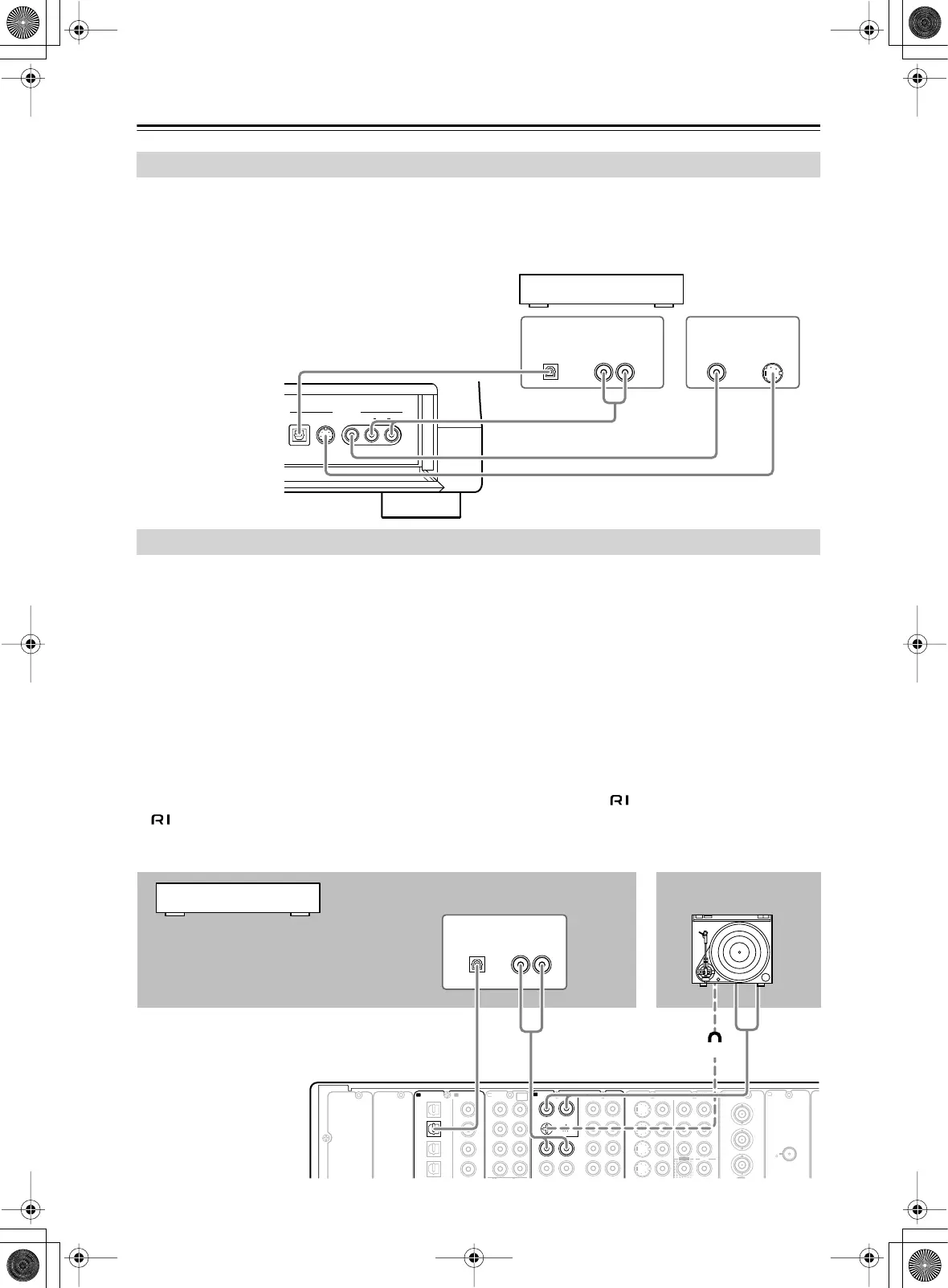

Connecting a Portable DVD Player or Video Camcorder
Connecting a CD Player, Turntable or Tuner
Digital S Video Video AudioLR
Video 7
Input
VIDEO
OUT
R
L
ANALOG
S VIDEO
OUT
DIGITAL
OPTICAL
AUDIO OUT
AUDIO OUT
• When connecting a portable DVD player or video
camcorder to the DTR-10.5, use the Video 7 Input
terminals on the front panel.
• You can change the display name for the input source
to represent the actual connected device (See page
97).
Game, Portable DVD,
Video Camcorder
E
GND
“Net
-
Tune”
is
a
trademark
of
Onkyo
Corporation.
A
44
33
2 2
11
OPTICAL COAXIAL
AUDIO IN
2
1
PH
7
6
5
4
RL
LR
G
S
VIDEO VIDEO
IN IN
IN
1
IN
2
3
2
1
Y
P
B
P
R
COMPONENT
VIDEO
IN
3
4
Y
ANTENNA
FM
75
DIGITAL IN DIGITAL IN
LR
CD
F
L
IH
J
K
OUT
1
FR FL
SBR SBL
SR SL
SUB C
FR
FL
MULTI
-
CH
IN
1
B
OUT
Y
P
B
P
R
COMPONENT VIDEO
IN
(
HD/ BNC
)
R
L
ANALOG
DIGITAL
OPTICAL
AUDIO OUT AUDIO OUT
GNDGND
When connecting to other audio terminals within the
same terminal section, configure the audio input set-
tings accordingly using the Audio Assign sub-menu
(See page 94).
CD Player
Turntable
To Next Page
