Installation and Connections
Connecting AV Components
—Continued
• When connecting a MD recorder, DAT deck or CD recorder to the DTR-10.5, make connections using digital or
analog terminals. Before making connections, refer to page 32 for correct connections.
• Connect a cassette or DAT tape deck to TAPE1, and an MD or CD recorder to TAPE 2.
• When you connect a cassette deck to the DTR-10.5, be sure to use only analog audio terminals. In the initial settings,
no terminal of this unit is assigned to a REC terminal of the cassette deck. To achieve the assignment, connect the
REC terminal of the cassette deck to any of the AUDIO OUT 1 to 5 terminals and set the terminal to “Tape 1 Rec
Out” in the Audio Output Assign sub-menu (See page 91). In addition, you can switch the input source “TAPE2” to
MD or CDR. Press the [Tape 2] button on the front panel to display “TAPE 2,” then press the [Tape 2] button again
and hold it for 3 seconds. This changes the display to “MD.” If you wish to change it to “CDR,” release the button
once, and press and hold it again for 3 seconds. This operation enables you to operate Onkyo’s MD or CD recorders
with the remote controller of this unit (Please note that the connection is required).
• When connecting to other terminals, remember to configure the audio input assignment in the Audio Assign sub-
menu (See page 94) and the audio output assignment in the Audio Output Assign sub-menu (See page 91).
• You can change the display name for the input source to represent the actual connected device (See page 97).
• When you want to perform analog recording of an audio signal or operate your -compatible Integra products via
connections with the DTR-10.5, you have to make analog audio signal connections. Connect the audio output
terminals on the source device to the AUDIO IN terminals on the DTR-10.5 using analog audio cables (RCA/
phono).

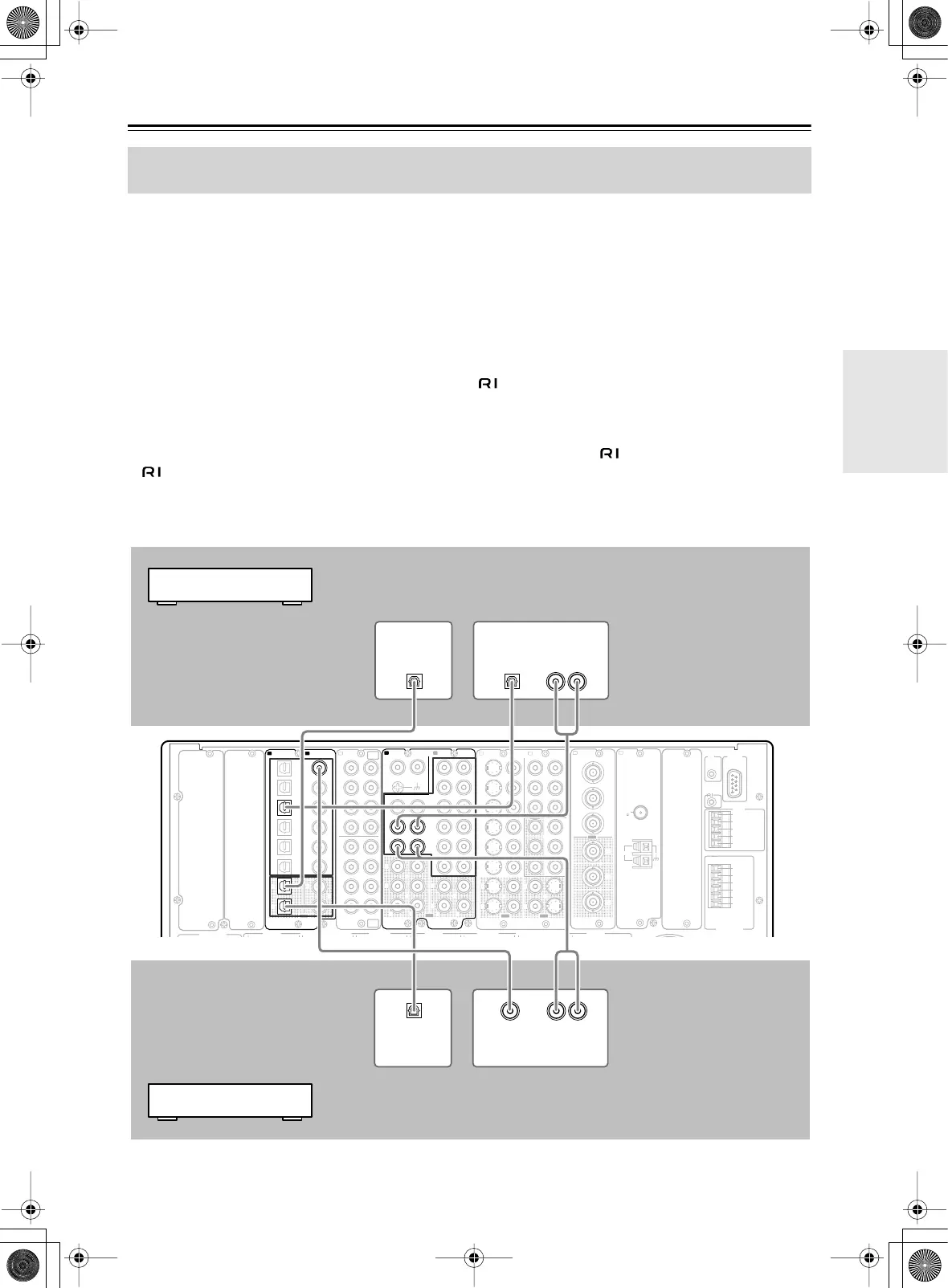

Connecting a Recording Device such as MD Recorder, DAT Deck, CD Recorder
or Cassette Deck
