Integra DTR-10.5 User Manual

52

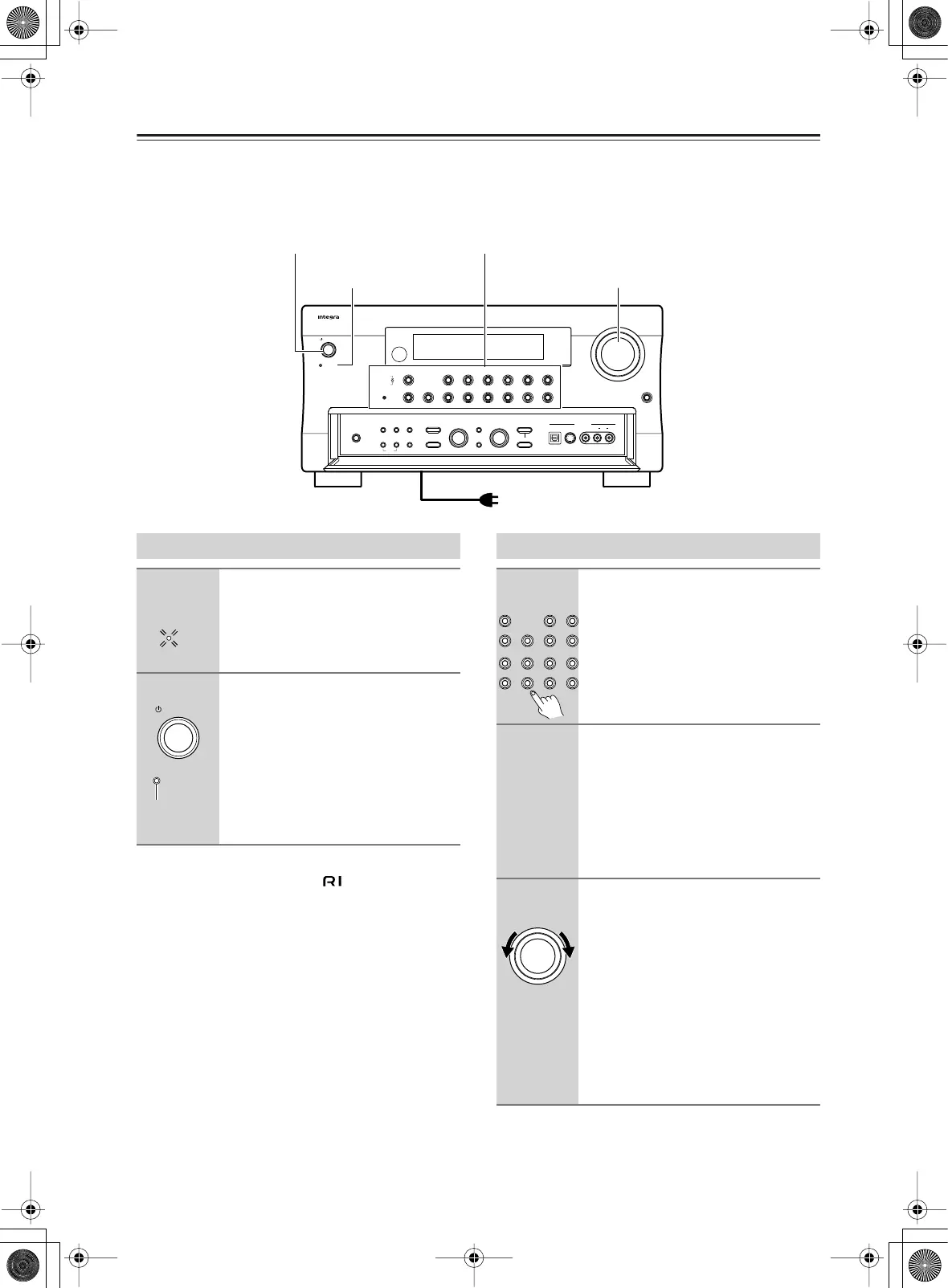

Connecting the Power/Basic Operations
• Before you plug in the DTR-10.5, confirm that all connections have been made properly.
• Turning on the power may cause a momentary power surge, which might interfere with other electrical equipment
on the same circuit, such as computers. If this happens, use a wall outlet on a different circuit.
Note:
Any components connected via will also be turned
on when the remote controller’s [On] button is pressed.
Phones
Listening
Mode
Audio
Selector
Tone Zone 2
Select/
Preset
Push To Enter
Setup
Control
/ Tuning
Push To Enter
Rec/ Zone 3
Digital S Video Video AudioLR
Video 7
Input
LevelExitLevelDimmerMemory
Tuning
Mode
Clear
Pure Audio
Open
DVD
Display Tape 1 Tape 2 Tuner Phono C
D Net Audio
Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7
Standby
Master Volume
Rec/ Zone 3 Red
)
(
Main
Blue
(
)
Zone 2
Green
(
)
Standby/On
Standby/On
Master Volume
Standby indicator
Input source buttons
To wall outlet
Turning on the Power
1
Plug the power cord into an AC
wall outlet.
The [Standby] indicator will light up.
2
Press the [Standby/On] button to
turn on the DTR-10.5.
The display will light up and the
[Standby] indicator will turn off.
If you press the [Standby/On] button
again, the DTR-10.5 returns to the
standby state.
Standby
Standby
Standby/On
Turn off
Operating on the DTR-10.5
1
Select an input source.
Press the input source button.
*You cannot listen to a source in main
room A, and to another source in main
room B.
2
Start playing the device selected.
When playing a picture device such as a
DVD player, you need to switch input to
a monitor such as a TV set.
Some picture-playing devices such as a
DVD-type game machine may also
require setting of sound output. Refer to
the manual of the device connected.
3
Adjust the volume level with the
[Master Volume] dial.
You can adjust the volume level in the
range from – ∞ , –81.5 dB to 18.0 dB
(Max) (when Relative is selected in the
Volume Setup sub-menu).
Hint:
The DTR-10.5 is a product for users to
enjoy home theater, so it is equipped
with a wide range of volume levels.
Please fine tune the volume level
according to your preferences.
Display Tape 1 Tape 2
Video 4 Video 5 Video 6 Video 7
DVD
Video 3
Video 2Video 1
C
D Net AudioPhonoTuner
Master Volume

Integra DTR-10.5 Specifications

Amplifier Specifications

amplifier power output at 6 ohms	200 W per channel
amplifier power output at 8 ohms	150 W per channel
dynamic power output at 3 ohms	2 x 340 W
dynamic power output at 4 ohms	2 x 260 W
dynamic power output at 8 ohms	2 x 175 W
frequency response	5 Hz to 100 kHz
signal-to-noise ratio	110 dB
total harmonic distortion	0.08%
damping factor	60 at 8 ohms

Input and Output Specifications

line input sensitivity and impedance	200 mV, 50 k ohms
multi-channel input sensitivity and impedance	200 mV, 50 k ohms
subwoofer input sensitivity and impedance	36 mV, 50 k ohms
rec out level and impedance	200 mV, 470 ohms
pre out level and impedance	1 V, 470 ohms
zone 2/3 line output level and impedance	100 mV, 470 ohms

Radio Specifications

AM tuning range	530–1, 710 kHz
AM usable sensitivity	30 µV
FM tuning range	87.5–108.0 MHz
FM usable sensitivity, stereo	17.2 dBf, 2.0 µV (75 ohms IHF)

Phono and Tone Control

phono input sensitivity	2.5 mV, 50 k ohms
phono overload	70 mV RMS at 1 kHz, 0.5% THD
RIAA deviation	20 Hz to 20 kHz: ±0.8 dB
phono signal-to-noise ratio	80 dB
bass control	±12 dB at 50 Hz
mid range control	±12 dB at 1, 000 Hz
treble control	±12 dB at 20, 000 Hz

General Specifications

power supply	AC 120 V, 60 Hz
power consumption	13.0 A
dimensions	435 x 175 x 429 mm
weight	32.1 kg
