Integra DTR-10.5 User Manual

55
Operations
Connecting the Power/Basic Operations —Continued
Using the Sleep Timer (remote controller only)
With the sleep timer you can set the DTR-10.5 so that it
automatically turns off after a set period.
Temporarily Changing the Speaker Output
Levels (remote controller only)
To change the individual speaker volumes temporarily,
follow the procedure given below. Each channel can be
set between –12 and +12 decibels (between –15 and
+12 decibels for the subwoofer). Note that the speaker
volumes will return to the original settings when the
DTR-10.5 is put in the standby state.
Note:
You cannot select a speaker if it is set to “Not Used” in
the Speaker Configuration Sub-menu of the Speaker/
Output Setup Menu.

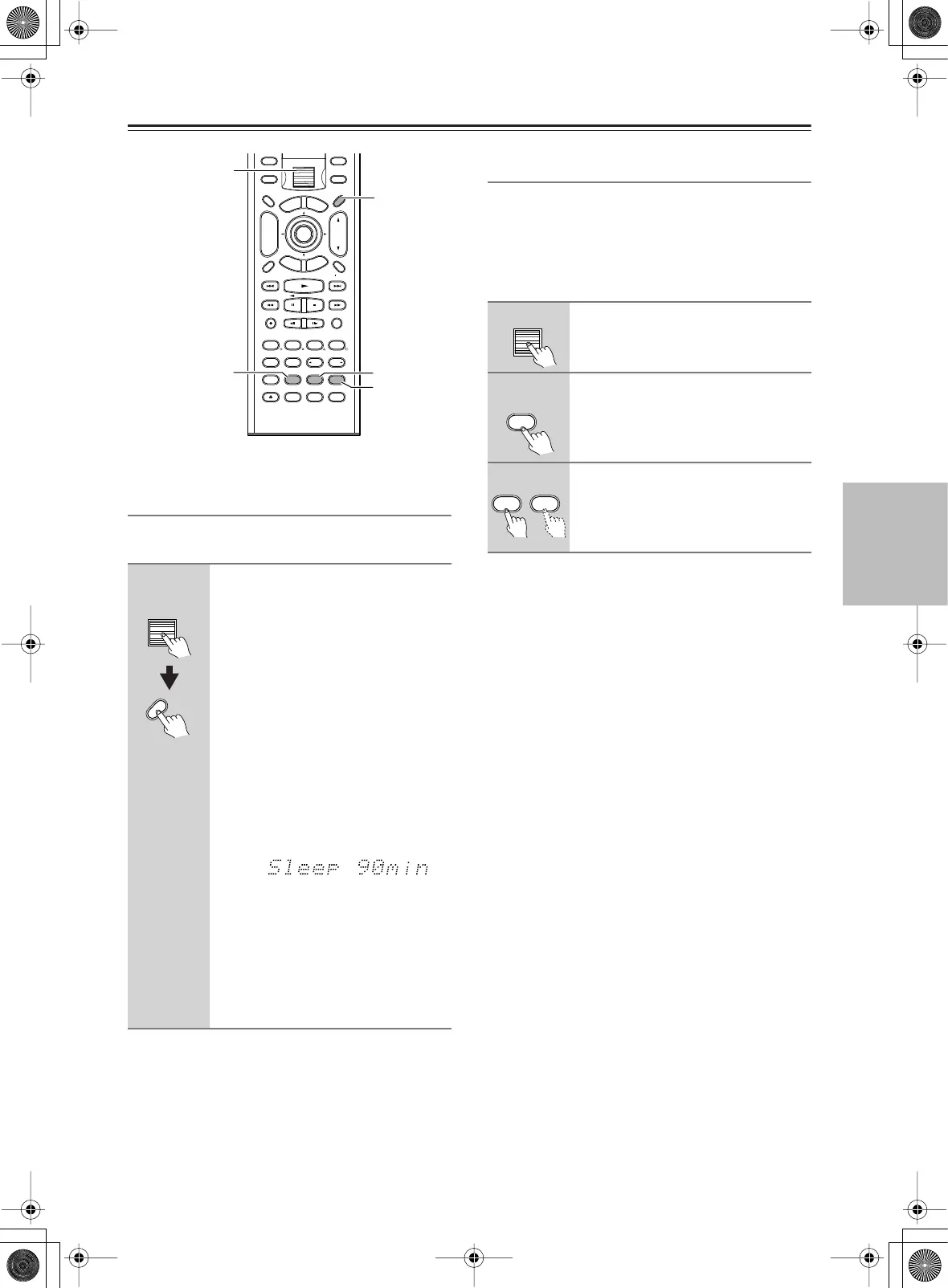

Press the scroll wheel, and then
press the [Sleep] button repeat-
edly to select the required sleep
time.
You can set the sleep time from 90 to 10
minutes in 10 minute increments.
The [SLEEP] indicator appears on the
display when the sleep timer has been
set, as shown. The specified sleep time
appears on the display for about five
seconds, then the previous display
reappears.
Note:
If you are using the remote zone (Zone 2
or 3), it will turn off at the same time as
the main zone.
To cancel the sleep timer, press the
[Sleep] button repeatedly until the
[SLEEP] indicator disappears.
To check the remaining sleep time,
press the [Sleep] button. Note that if you
press the [Sleep] button while the sleep
time is being displayed, you’ll shorten
the sleep time by 10 minutes.
Caps Delete Language Loca t ion
Album Ar tist GenrePlaylist
Repeat Video Music Photo
Display
Dimmer
T V
Input
Sleep
Random
Main A Main B
Muting
AngleSubtitleAudio
MemorySearchA
-
BRepeat
E
x
i
t
G
u
i
d
e
Rec
Last Memory
Prev
CH
Enter
S
e
t
u
p
R
e
t
u
r
n
Test Tone CH SEL
Pure A
Surround
Direct
Stereo
Re
-
EQ
THX A ll CH ST
Level
+
Level
-
L Night Audio SEL
DSP DSP
T
o
p
M
e
n
u
M
e
n
u
VOL
CH
Disc
+
-
Zone 2
InputMode
Macro
S
e
r
v
e
r
A
u
d
i
o
A
D
J
CH SEL
Level –
Level +
Sleep
Scroll wheel
RC-556M
Sleep
Remote
controller
1
Press the scroll wheel to enter the
AMP mode.
2
Press the [CH SEL] button and
select the desired speaker.
3
Press the [Level –] or [Level +] but-
ton to adjust the volume level.
CH SEL
Level
+
Level
-

Integra DTR-10.5 Specifications

Amplifier Specifications

amplifier power output at 6 ohms	200 W per channel
amplifier power output at 8 ohms	150 W per channel
dynamic power output at 3 ohms	2 x 340 W
dynamic power output at 4 ohms	2 x 260 W
dynamic power output at 8 ohms	2 x 175 W
frequency response	5 Hz to 100 kHz
signal-to-noise ratio	110 dB
total harmonic distortion	0.08%
damping factor	60 at 8 ohms

Input and Output Specifications

line input sensitivity and impedance	200 mV, 50 k ohms
multi-channel input sensitivity and impedance	200 mV, 50 k ohms
subwoofer input sensitivity and impedance	36 mV, 50 k ohms
rec out level and impedance	200 mV, 470 ohms
pre out level and impedance	1 V, 470 ohms
zone 2/3 line output level and impedance	100 mV, 470 ohms

Radio Specifications

AM tuning range	530–1, 710 kHz
AM usable sensitivity	30 µV
FM tuning range	87.5–108.0 MHz
FM usable sensitivity, stereo	17.2 dBf, 2.0 µV (75 ohms IHF)

Phono and Tone Control

phono input sensitivity	2.5 mV, 50 k ohms
phono overload	70 mV RMS at 1 kHz, 0.5% THD
RIAA deviation	20 Hz to 20 kHz: ±0.8 dB
phono signal-to-noise ratio	80 dB
bass control	±12 dB at 50 Hz
mid range control	±12 dB at 1, 000 Hz
treble control	±12 dB at 20, 000 Hz

General Specifications

power supply	AC 120 V, 60 Hz
power consumption	13.0 A
dimensions	435 x 175 x 429 mm
weight	32.1 kg
