Intel® Server Board S2600WF Product Family Technical Product Specification
105
11. Reset and Recovery Jumpers
The server board includes several jumper blocks which can be used to configure, protect, or recover specific
features of the server board. Figure 73 identifies the location of each jumper block on the server board. Pin 1
of each jumper block can be identified by the arrowhead (▼) silkscreened on the server board next to the
pin.

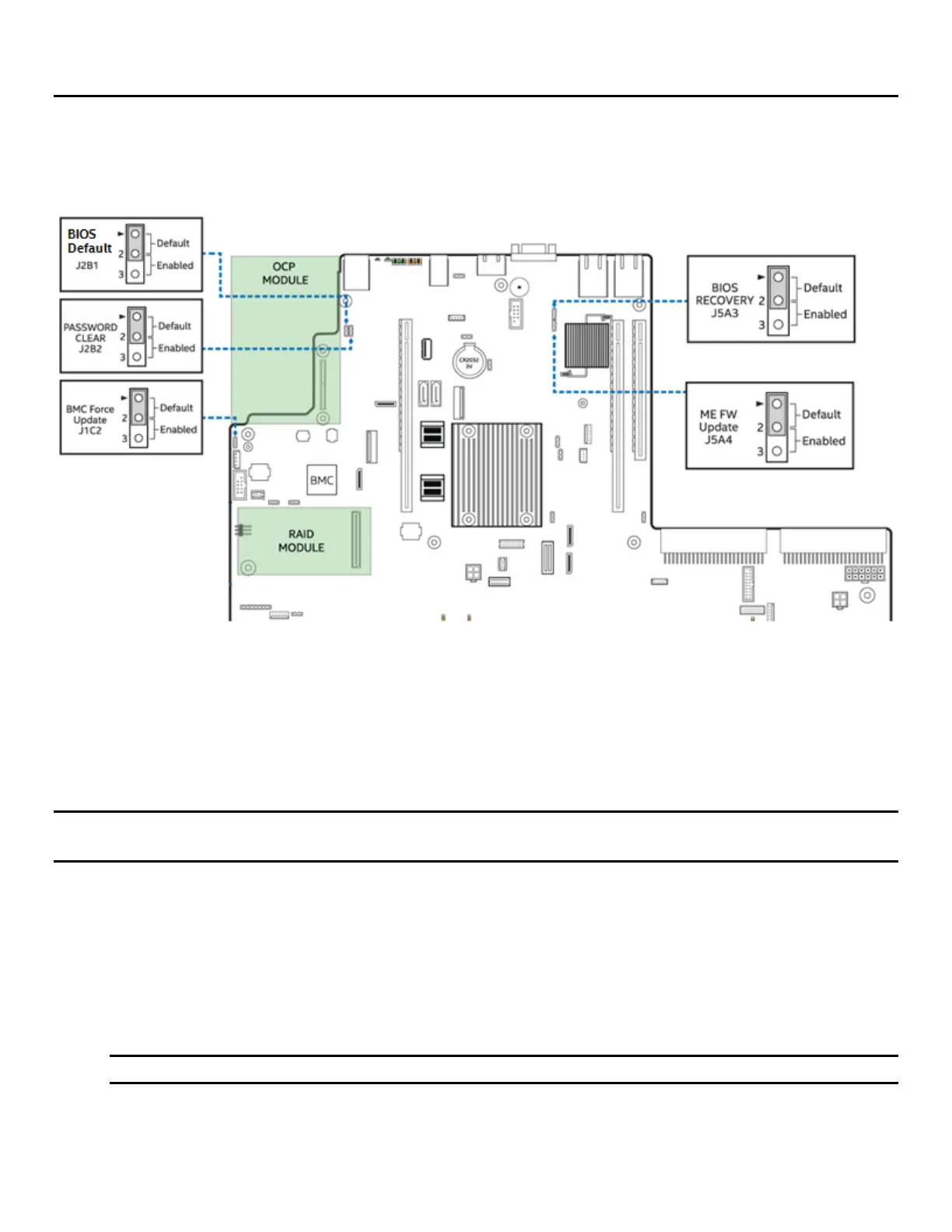

Figure 73. Reset and recovery jumper block location
The following sections describe how each jumper block is used.
11.1 BIOS Default Jumper Block
This jumper resets BIOS options, configured using the <F2> BIOS Setup Utility, back to their original default
factory settings.
Note: This jumper does not reset administrator or user passwords. To reset passwords, the password clear
jumper must be used.
To use the BIOS default jumper, perform the following steps:
1. Power down the server and unplug the power cord(s).
2. Remove the system top cover and move the “BIOS DFLT” jumper from pins 1-2 (normal operation) to
pins 2-3 (set BIOS defaults).
3. Wait five seconds then move the jumper back to pins 1-2.
4. Re-install the system top cover.
5. Re-Install system power cords.
Note: The system automatically powers on after AC is applied to the system.
6. During POST, press <F2> to access the BIOS setup utility to configure and save desired BIOS options.
