Intel® Server Board S2600WF Product Family Technical Product Specification
61
6.2.4 Intel® Integrated RAID Module Support
The server board has support for many Intel and non-Intel PCIe add-in 12 Gb RAID adapters that can be
installed in available PCIe add-in cards slots. For system configurations with limited add-in card slot
availability, an optional Intel® Integrated RAID mezzanine module can be installed onto a high-density,
80-pin connector labeled “SAS Module” on the server board.

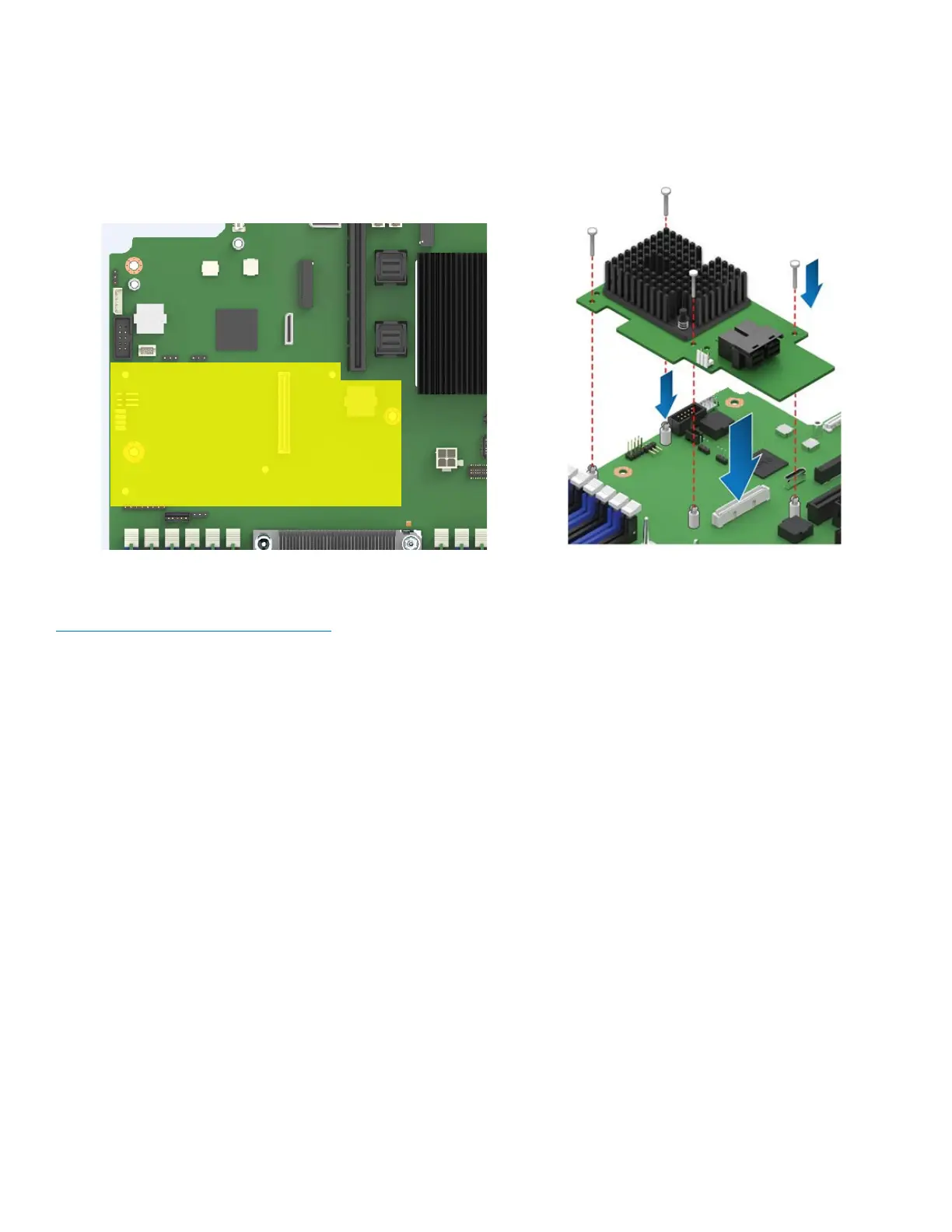

Figure 35. Intel® Integrated RAID module
For a list of supported Intel Integrated RAID module options, visit the Intel® Server Configurator Tool at
https://serverconfigurator.intel.com
.
6.3 Onboard Storage Subsystem
The Intel Server Board S2600WF product family includes support for many storage related technologies and
onboard features to support a wide variety of storage options. These include:
• (2) – M.2 PCIe*/SATA
• (4) – PCIe* OCuLink
• Intel® Volume Management Device (Intel® VMD) for NVMe*
• Intel® Virtual RAID on CPU (Intel® VROC) for NVMe
• (2) – 7-pin single port SATA
• (2) – Mini-SAS HD (SFF-8643) 4-port SATA (S2600WFT and S2600WF0 boards only)
• Onboard SATA RAID aptions
o Intel® Rapid Storage Technology enterprise (Intel® RSTe) 5.0 for SATA
o Intel® Embedded Server RAID Technology 2 (Intel® ESRT2) v1.60 for SATA
The following sections provide an overview of each option.
6.3.1 M.2 SSD Support
The Intel Server Board S2600WF product family includes two M.2 SSD connectors labeled
“M2_x4PCIE/sSATA_1” and “M2_x2PCIE/sSATA_2” on the server board as shown in Figure 36.
Intel® Integrated SAS
RAID Module

Intel S2600WF Specifications

General

Memory Slots	16 DIMM slots
Chipset	Intel C621
Memory Support	DDR4 ECC RDIMM/LRDIMM
Expansion Slots	Up to 6 PCIe 3.0 slots
Storage Options	SATA, SAS
SATA Ports	Up to 10 SATA ports
CPU Socket Type	Socket P (LGA 3647)
