Intel® Server Board S2600WF Product Family Technical Product Specification
57

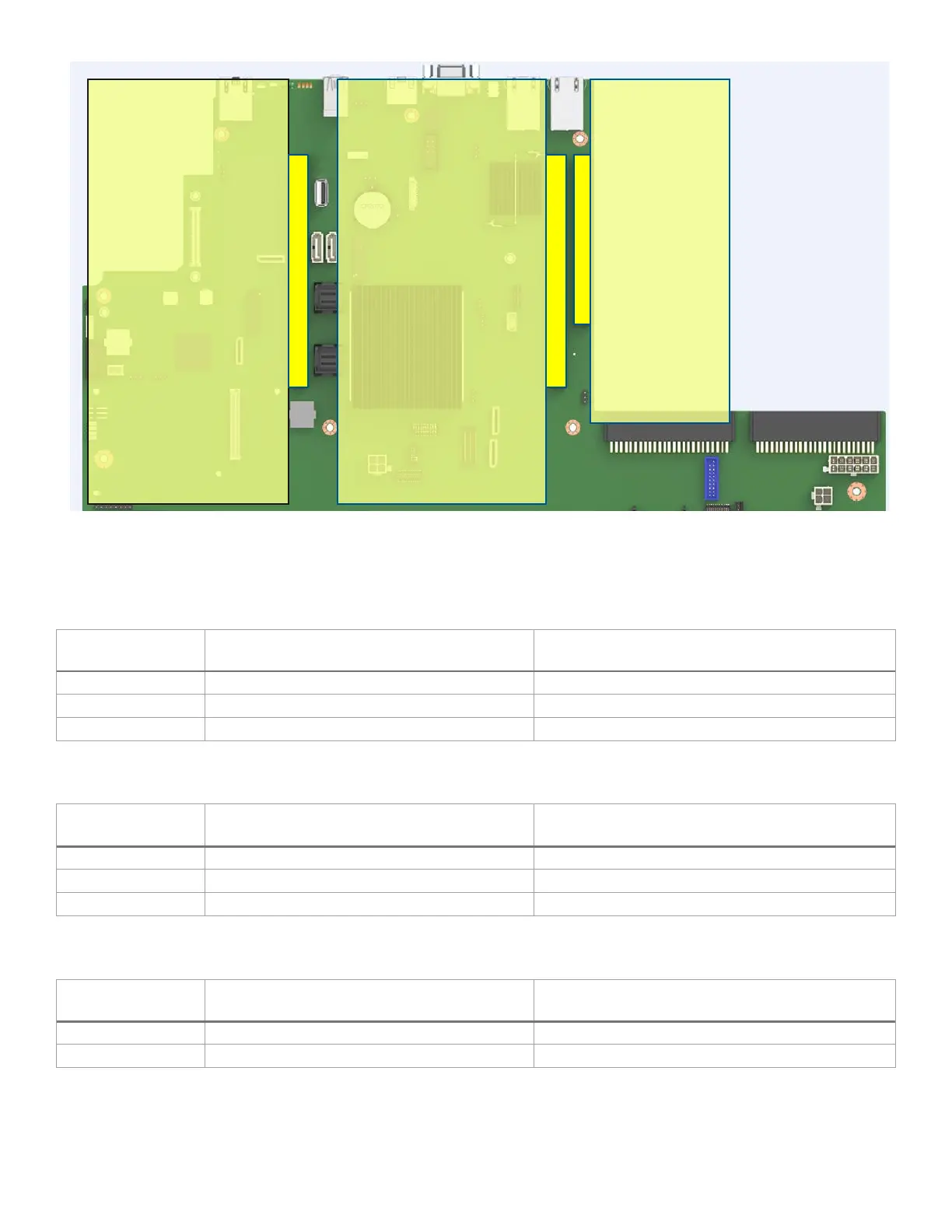

Figure 29. PCIe* add-in card support
Table 13. Riser slot #1 PCIe* root port mapping
PCIe* Slot
2U – 3-Slot Riser Card
iPC – A2UL8RISER2
2U – 2-Slot Riser Card
iPC – A2UL16RISER2
Top
CPU #1 – Ports 1A and 1B (x8 elec, x16 mech)
CPU #1 – Ports 1A thru 1D (x16 elec, x16 mech)
Middle
CPU #1 – Ports 1C and 1D (x8 elec, x16 mech)
N/A
Bottom
CPU #2 – Ports 1C and 1D (x8 elec, x8 mech)
CPU #2 – Ports 1C and 1D (x8 elec, x8 mech)
Table 14. Riser slot #2 PCIe* root port mapping
PCIe* Slot
2U – 3-Slot Riser Card
iPC – A2UL8RISER2
2U – 2-Slot Riser Card
iPC – A2UL16RISER2
Top
CPU #2 – Ports 2A and 2B (x8 elec, x16 mech)
CPU #2 – Ports 2A thru 2D (x16 elec, x16 mech)
Middle
CPU #2 – Ports 2C and 2D (x8 elec, x16 mech)
N/A
Bottom
CPU #2 – Ports 1A and 1B (x8 elec, x8 mech)
CPU #2 – Ports 1A and 1B (x8 elec, x8 mech)
Table 15. Riser slot #3 PCIe* root port mapping
PCIe* Slot
2U – Low Profile Riser Card
iPC – A2UX8X4RISER
Notes
Top
CPU #2 – DMI x4 (x4 elec, x8 mech)
Low profile cards only.
Bottom
CPU #2 – Ports 3C and 3D (x8 elec, x8 mech)
Low profile cards only.
6.2.1 Riser Slot #1 and Riser Slot #2 Riser Card Options
Several multi-slot PCI riser card options are available for this server product family. Available riser cards for
riser slots #1 and #2 are common between the two slots.
PCIe* Add-In Card
Support
Riser Slot #1
x24 PCIe* 3.0
X16 PCIe* – CPU#1
+
X8 PCIe* – CPU#2
PCIe* Add-in Card
Support
Riser Slot #2
X24 PCIe* 3.0
X24 PCIe*– CPU #2
PCIe* Add-in
Card support
Riser Slot #3
X12 PCIe* 3.0
X8 PCIe*
CPU #2
+
X4 DMI
CPU #2
Riser #1
Riser #2
Riser #3

Intel S2600WF Specifications

General

Memory Slots	16 DIMM slots
Chipset	Intel C621
Memory Support	DDR4 ECC RDIMM/LRDIMM
Expansion Slots	Up to 6 PCIe 3.0 slots
Storage Options	SATA, SAS
SATA Ports	Up to 10 SATA ports
CPU Socket Type	Socket P (LGA 3647)
