Intel® Server Board S2600WF Product Family Technical Product Specification
48
4.2 Supported Memory

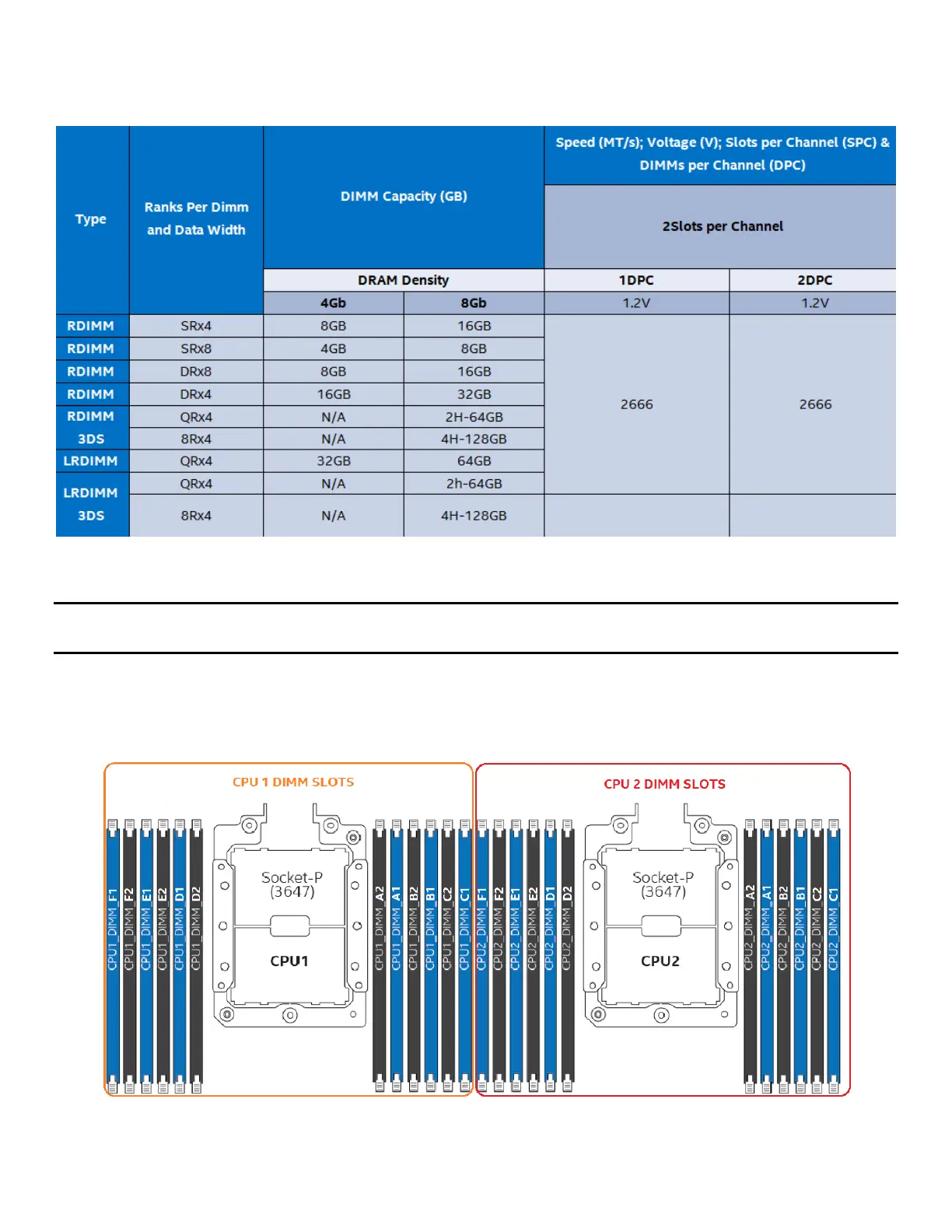

Table 10.DDR4 RDIMM and LRDIMM support
4.3 Memory Slot Identification and Population Rules
Note: Although mixed DIMM configurations may be functional, Intel only supports and performs platform
validation on systems that are configured with identical DIMMs installed.
On the Intel® Server Board S2600WF, a total of 24 DIMM slots are provided – 2 CPUs, 6 Memory
Channels/CPU, 2 DIMMs/Channel. Figure 25 identifies all DIMM slots on the server board.
Figure 25. Intel® Server Board S2600WF memory slot layout
The following memory population rules apply when installing DIMMs:

Intel S2600WF Specifications

General

Memory Slots	16 DIMM slots
Chipset	Intel C621
Memory Support	DDR4 ECC RDIMM/LRDIMM
Expansion Slots	Up to 6 PCIe 3.0 slots
Storage Options	SATA, SAS
SATA Ports	Up to 10 SATA ports
CPU Socket Type	Socket P (LGA 3647)
