Intel® Server Board S2600WF Product Family Technical Product Specification
58
6.2.1.1 1U One-Slot PCIe Riser Card (iPC – F1UL16RISER3APP)
Each riser card assembly has support for a single full height, ½ length PCIe add-in card. However, riser card
#2 may be limited to ½ length, ½ height add-in cards if either of the two mini-SAS HD connectors on the
server board are used.
Note: Add-in cards that exceed the PCI specification for ½ length PCI add-in cards (167.65mm or 6.6in) may
interfere with other installed devices on the server board.

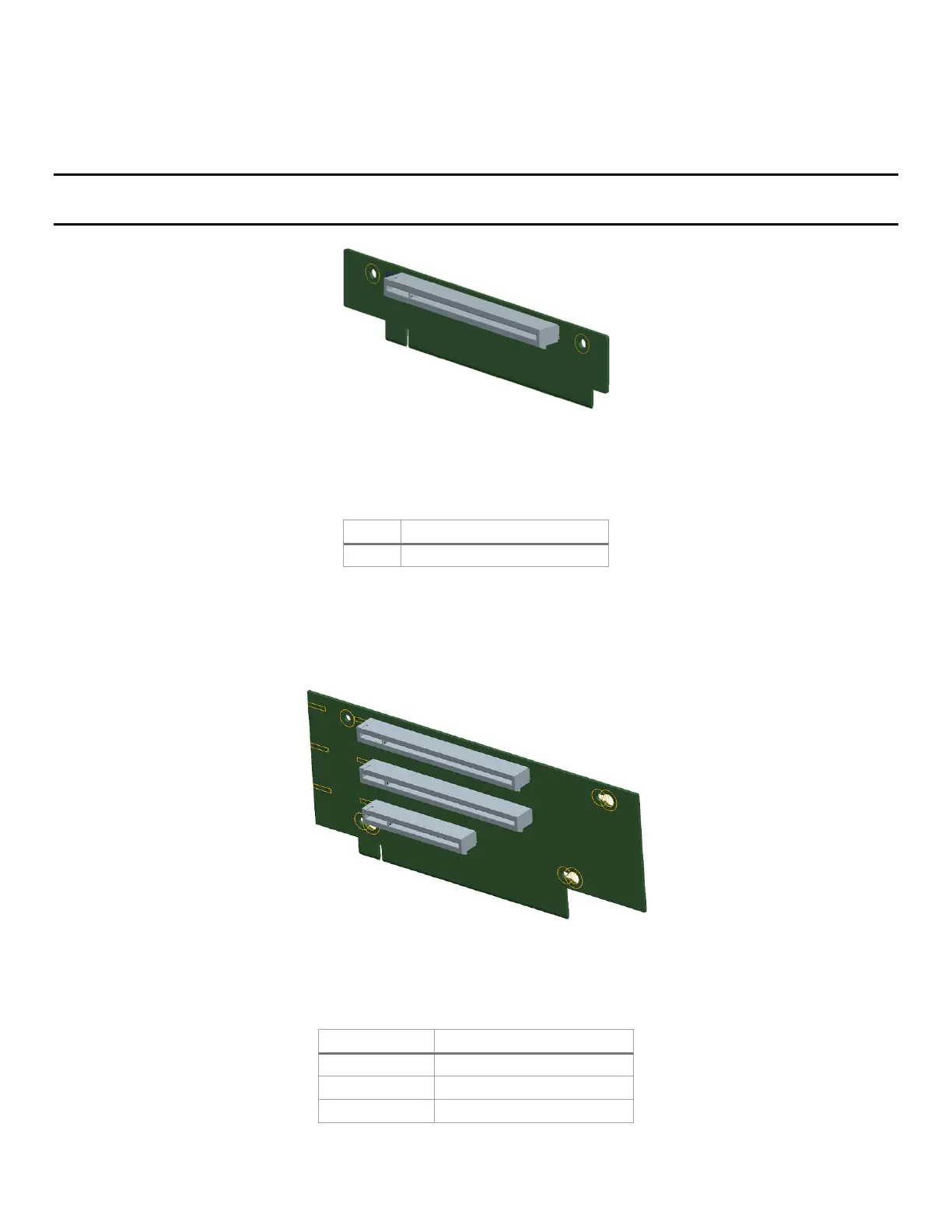

Figure 30. 1U one-slot PCIe* riser card (iPC – F1UL16RISER3APP)
Table 16. One-slot PCIe* riser card slot description
Slot #
Description
Slot-1
PCIe x16 elec, x16 mechanical
6.2.1.2 2U Three-Slot PCIe Riser Card (iPC – A2UL8RISER2)
Each riser card assembly has support for up to two full height full length add-in cards (top and middle slots)
and one full height ½ length add-in card (bottom slot).
Figure 31. 2U three-slot PCIe* riser card (iPC – A2UL8RISER2)
Table 17. Three-slot PCIe* riser card slot description
Slot #
Description
Slot-1 (top)
PCIe x8 elec, x16 mechanical
Slot-2 (middle)
PCIe x8 elec, x16 mechanical
Slot-3 (bottom)
PCIe x8 elec, x8 mechanical
