Intel® Server Board S2600WF Product Family Technical Product Specification
75
6.6 USB Support
USB support is provided through several onboard internal and external connectors as described in the
following sections.
6.6.1 External USB 3.0 Connector
The server board includes three (1x3 stacked) USB 3.0 ports on the back edge of the server board.

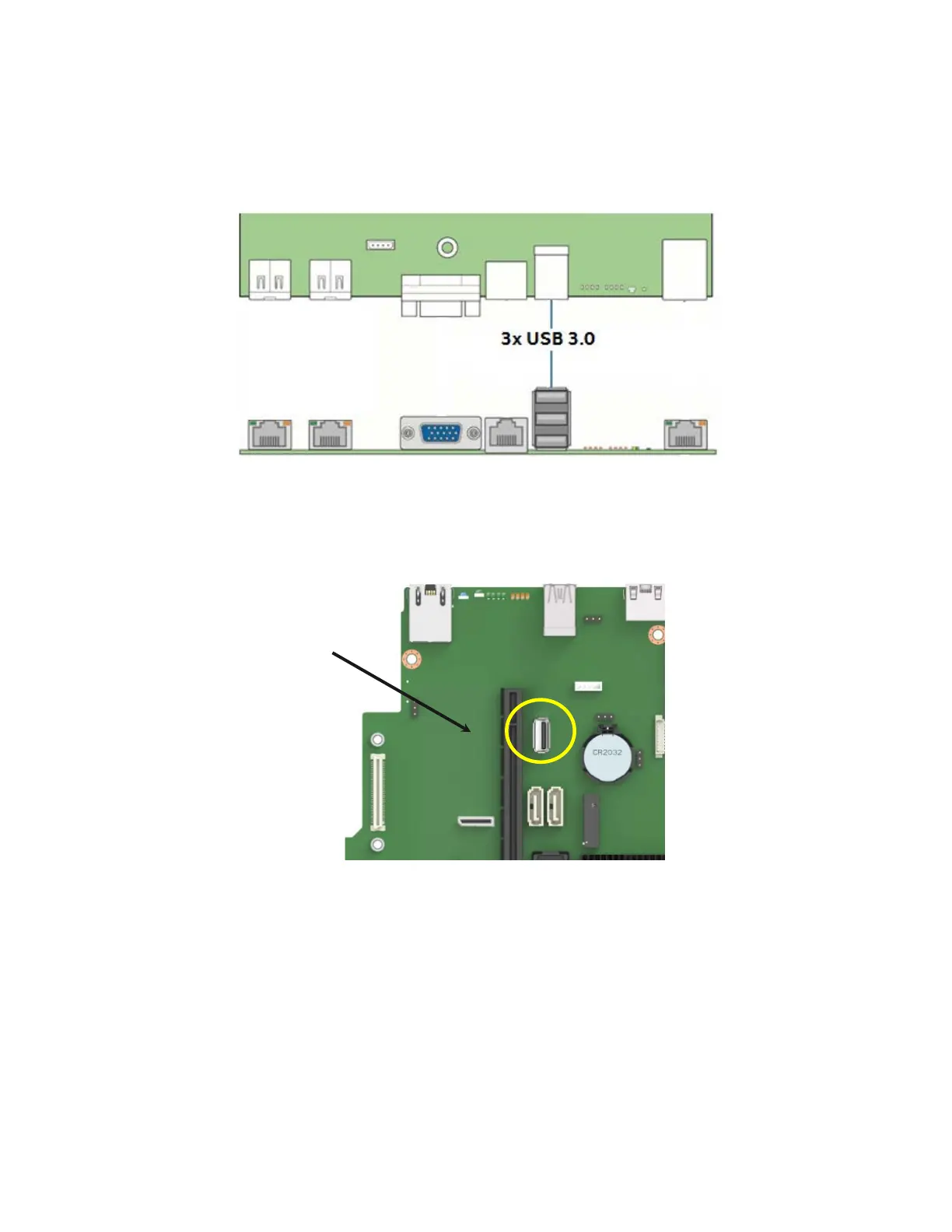

Figure 51. External USB 3.0 ports
6.6.2 Internal USB 2.0 Type-A Connector
The server board includes one internal Type-A USB 2.0 connector.
Figure 52. Internal USB 2.0 type-A connector
6.6.3 Front Panel USB 3.0 Connector
A blue 20-pin (2x10) shrouded connector on the server board (labeled “FP_USB_2.0/3.0”) provides the
option of routing two USB 3.0 ports to the front of a given chassis. Table 27 provides the connector pin-out.
Type-A
USB 2.0
