• Four ports from the mini-SAS HD (SFF-8643) connector labeled “SATA Ports 0-3” on the
server board.
• Four ports from the mini-SAS HD (SFF-8643) connector labeled “SATA Ports 4-7” on the
server board.
Note: The onboard SATA controllers are not compatible with and cannot be used with SAS expander cards.

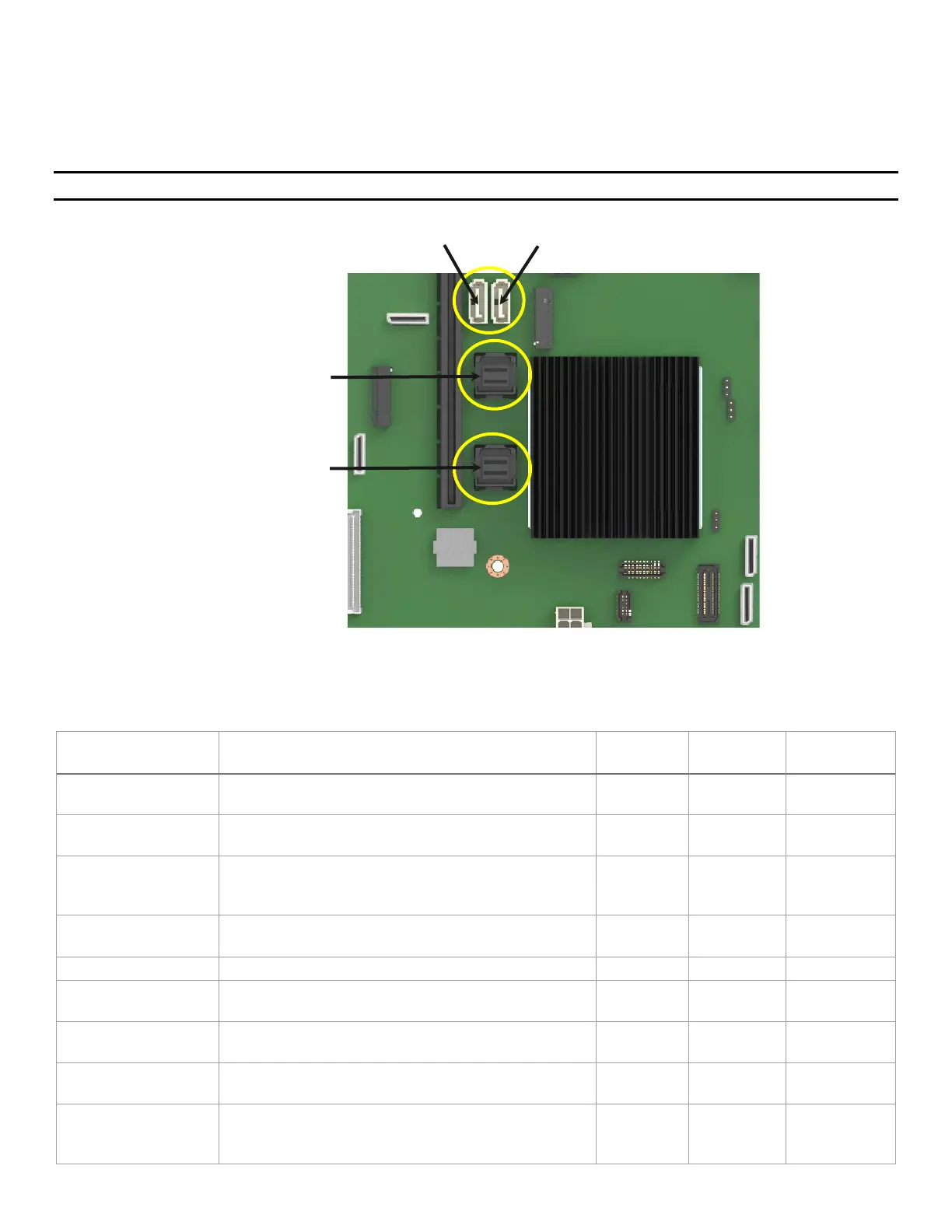

Figure 43. Onboard SATA port connector identification
Table 22. SATA and sSATA controller feature support
Native Command
Queuing (NCQ)
Allows the device to reorder commands for more
efficient data transfers
Supported Supported
Collapses a DMA Setup then DMA Activate sequence
into a DMA Setup only
Supported Supported
Allows for device detection without power being applied
and ability to connect and disconnect devices without
prior notification to the system
Supported Supported
Asynchronous Signal
Recovery
Provides a recovery from a loss of signal or establishing
communication after hot plug
Supported Supported
Capable of data transfers up to 6 Gb/s
Notification
A mechanism for a device to send a notification to the
host that the device requires attention
Supported Supported
Host & Link Initiated
Power Management
Capability for the host controller or device to request
Partial and Slumber interface power states
Supported Supported
Enables the host the ability to spin up hard drives
sequentially to prevent power load problems on boot
Supported Supported Supported
Coalescing
Reduces interrupt and completion overhead by allowing
a specified number of commands to complete and then
generating an interrupt to process the commands
Supported N/A
SATA ports 0-3
SATA ports 4-7
sSATA port 4 sSATA port 5
