Intel® Server Board S2600WF Product Family Technical Product Specification
42

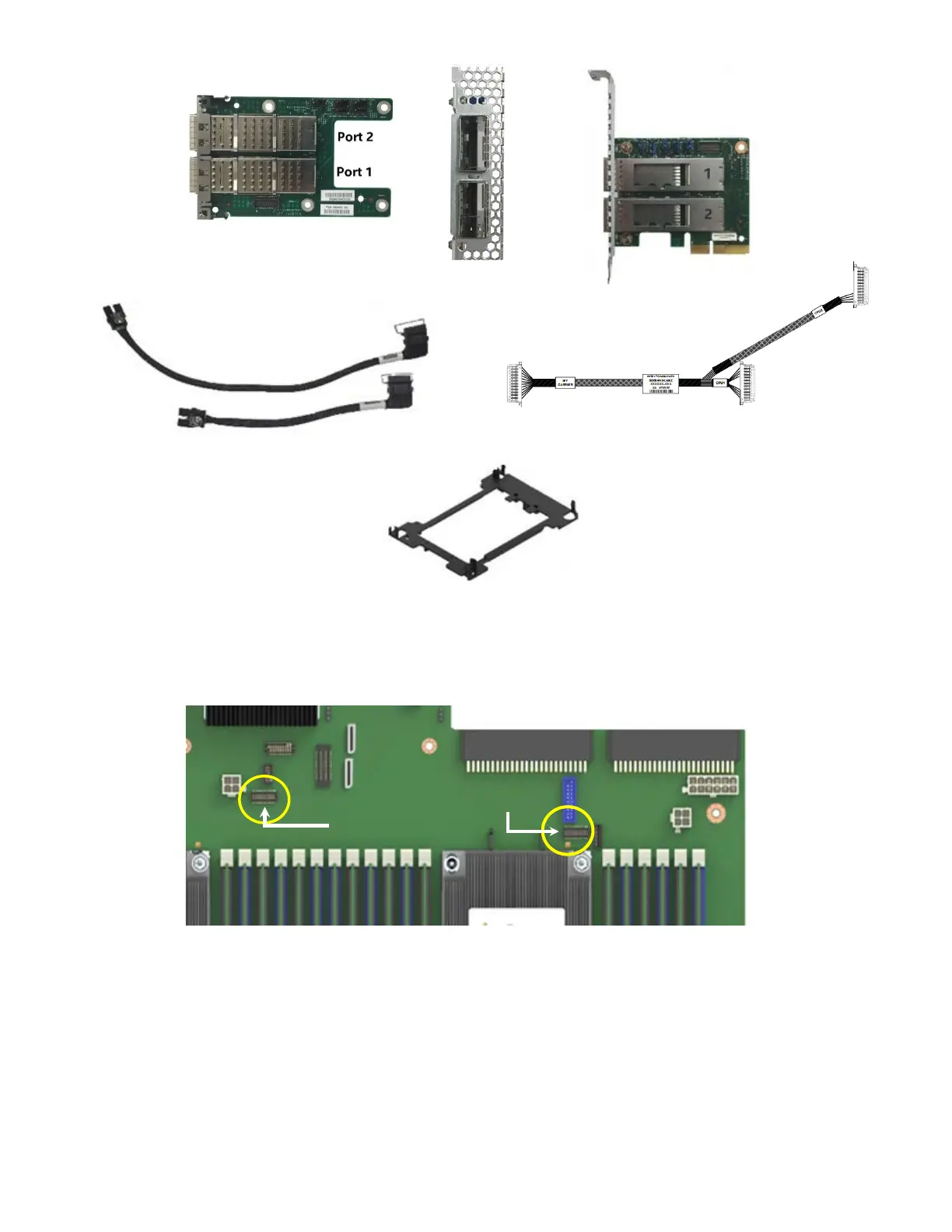

Figure 21. Intel® Omni-Path IFT Carrier Accessory Kit components
The sideband cable connects the IFT carrier board to each fabric processor sideband connector on the
server board. The sideband connectors are shown in Figure 22.
Figure 22. Server board sideband connectors
Each IFT carrier port has one green status LED as shown in Figure 23
Mezzanine IFT Carrier Card
PCIe* IFT Carrier Card
External QSFP28
Connectors
Internal Omni-Path Sideband
Internal Omni-Path IFT Card-to-CPU
Fabric Procsessor Carrier x2
Fabic Sideband
CPU1
Fabic Sideband
CPU2

Intel S2600WF Specifications

General

Memory Slots	16 DIMM slots
Chipset	Intel C621
Memory Support	DDR4 ECC RDIMM/LRDIMM
Expansion Slots	Up to 6 PCIe 3.0 slots
Storage Options	SATA, SAS
SATA Ports	Up to 10 SATA ports
CPU Socket Type	Socket P (LGA 3647)
