Intel® Server Board S2600WF Product Family Technical Product Specification
67

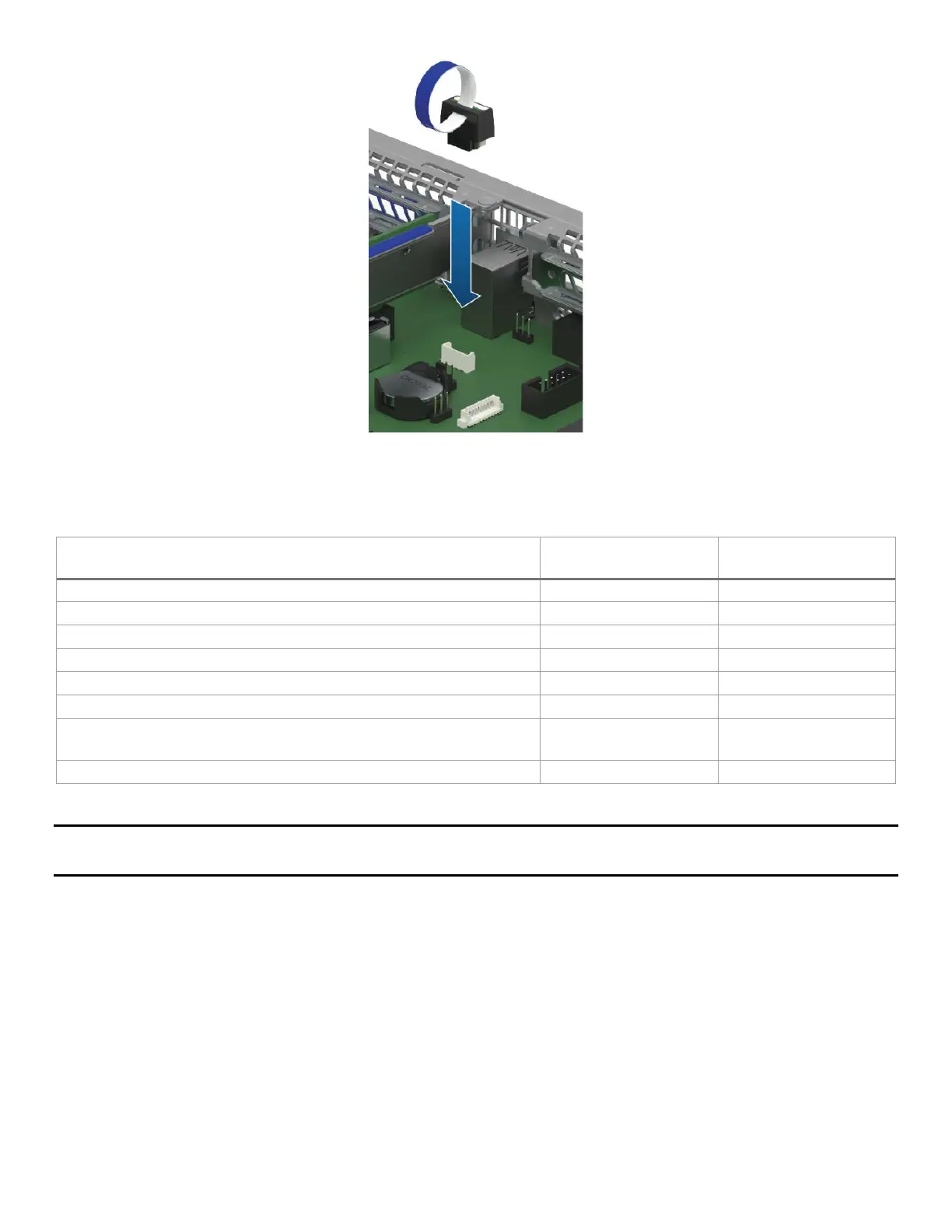

Figure 42. Intel® VROC upgrade key
Table 21. Intel® VROC upgrade key options
NVMe* RAID Major Features
Standard Intel® VROC
(iPC VROCSTANMOD)
Premium Intel® VROC
(iPC VROCPREMMOD)
CPU attached NVMe SSD – high perf.
√
√
Boot on RAID volume
√
√
Third party vendor SSD support
√
√
Intel® RSTe 5.0 RAID 0/1/10
√
√
Intel® RSTe 5.0 RAID 5
-
√
RAID write hole closed (RMFBU replacement)
-
√
Hot plug/ surprise removal
(2.5” SSD form factor only
√ √
Enclosure LED management
√
√
Note: Intel VROC upgrade keys referenced in Table 21
are used for PCIe NVMe SSDs only. For SATA RAID
support, see Section 6.3.6.
6.3.5 Onboard SATA Support
The server board utilizes two chipset embedded AHCI SATA controllers, identified as “SATA” and “sSATA”,
providing for up to twelve 6 Gb/sec SATA ports.
The AHCI sSATA controller provides support for up to four SATA ports on the server board:
• Two ports accessed via two white single port 7-pin connectors labeled “sSATA-4” and “sSATA-5” on
the server board.
• Two ports (sSATA 1 and sSATA 2) via two M.2 SSD connectors
The AHCI SATA controller provides support for up to eight SATA ports on the server board (Intel Server
Boards S2600WFT and S2600W0 only):
