Intel® Server Board S2600WF Product Family Technical Product Specification
59
6.2.1.3 2U Two-Slot PCIe Riser Card (iPC – A2UL16RISER2)
Each riser card assembly has support for one full height full length add-in card (top slot) and one full height
½ length add-in card (bottom slot).

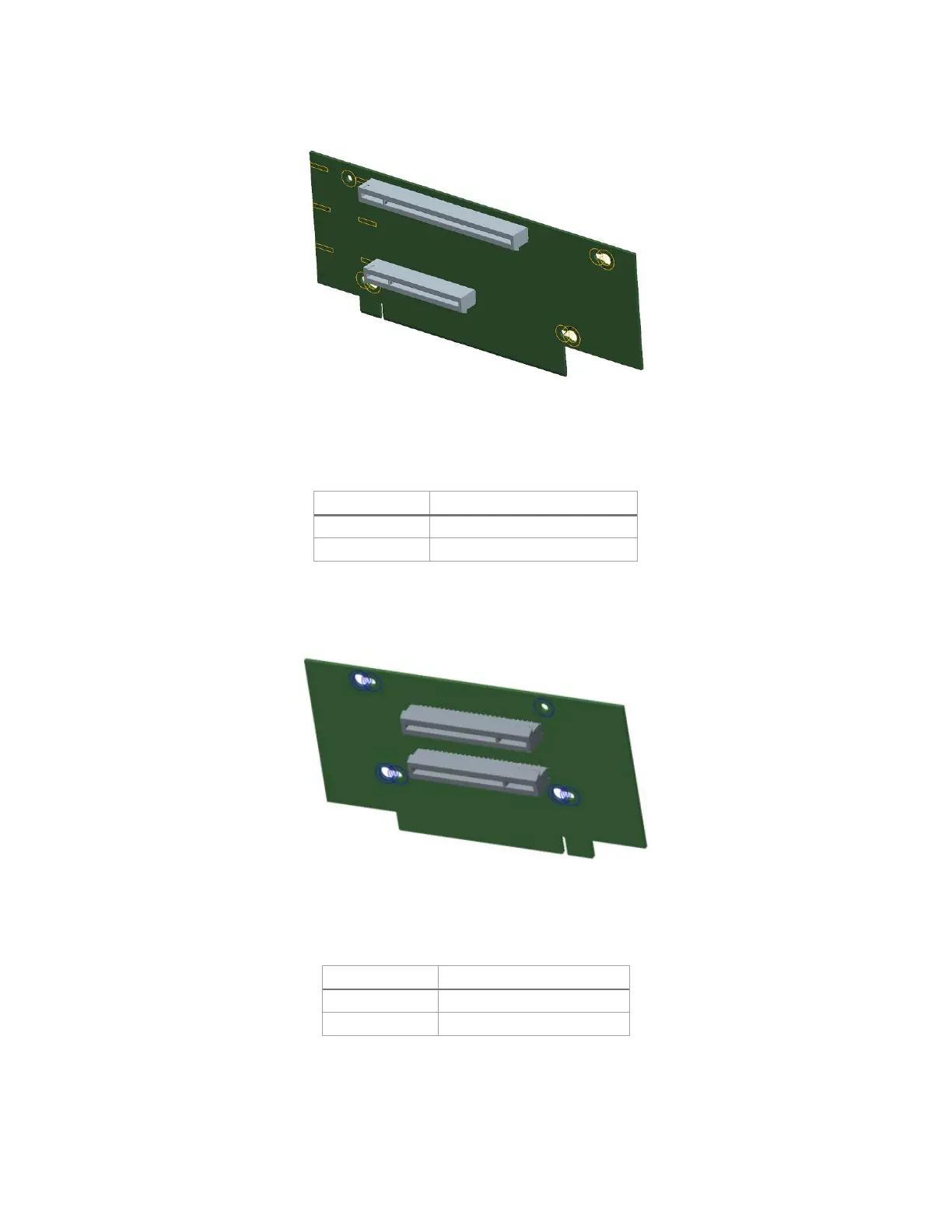

Figure 32. 2U two-slot PCIe* riser card (iPC – A2UL16RISER2)
Table 18. Two-slot PCIe* riser card slot description
Slot #
Description
Slot-1 (top)
PCIe x16 elec, x16 mechanical
Slot-2 (bottom)
PCIe x8 elec, x8 mechanical
6.2.2 Riser Slot #3 Riser Card Option (iPC – A2UX8X4RISER)
Riser slot #3 is provided to support up to two additional PCIe add-in card slots for 2U server configurations.
The available riser card option is designed to support low profile add-in cards only.
Figure 33. Low profile riser card (iPC – A2UX8X4RISER)
Table 19. Low profile riser card slot description
Slot #
Description
Slot-1 (top)
PCIe x4 elec, x8 mechanical
Slot-2 (bottom)
PCIe x8 elec, x8 mechanical
6.2.3 Intel® Ethernet Network Adapter for OCP* Support
The Intel Server Board S2600WF product family offers a line of LAN KR OCP mezzanine modules that follow
the OCP 2.0 form factor.
