Intel® Server Board S2600WF Product Family Technical Product Specification

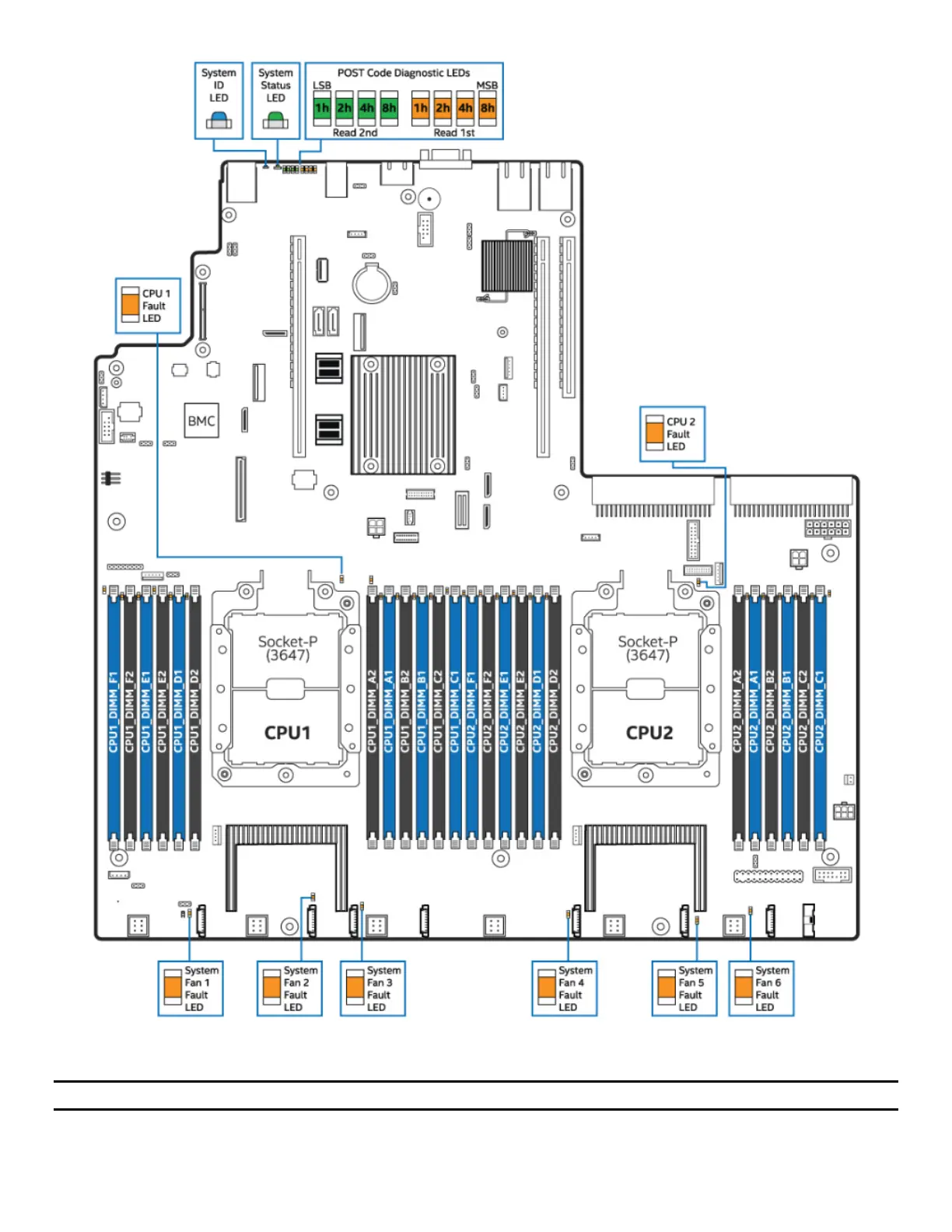

Figure 6. Intel® Light Guided Diagnostic – LED identification

Note: See Appendix B

for POST Code Diagnostic LED decoder information.
