Intel® Server Board S2600WF Product Family Technical Product Specification
78
2D Mode
2D Video Support (Color Bit)
Resolution
8 bpp
16 bpp
24 bpp
32 bpp
1920 x 1200
60
60
Not Supported
Not Supported

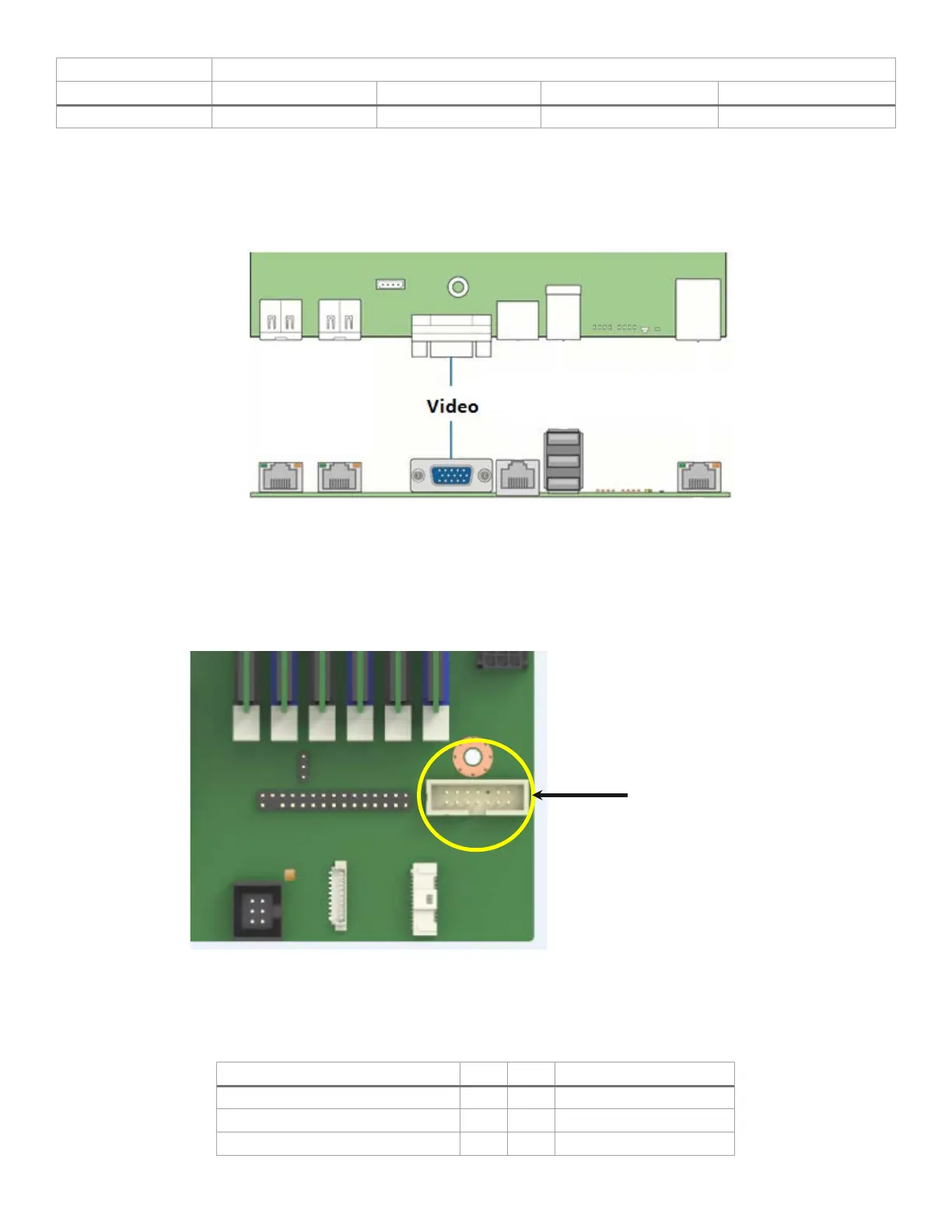

6.7.1 Onboard Video Connectors
The server board includes two options to attach a monitor to the server system:
• A standard 15-pin video connector located on the back edge of the server board.
Figure 55. Rear external video connector
• On the server board near the front right edge, is A connector near the front right edge of the server
board labeled “FP_VIDEO” that, when cabled, can provide video from the front of the server system.
When a monitor is attached to the front of the system, the video out the back is disabled. Table 30
provides the pinout for this connector.
Figure 56. Front panel video connector
Table 30. Front panel video connector pinout ("FP VIDEO")
Signal Description
Pin#
Pin#
Signal Description
V_IO_FRONT_R_CONN
1
2
GROUND
V_IO_FRONT_G_CONN
3
4
GROUND
V_IO_FRONT_B_CONN
5
6
GROUND
Front panel
video connector
