Intel® Server Board S2600WF Product Family Technical Product Specification

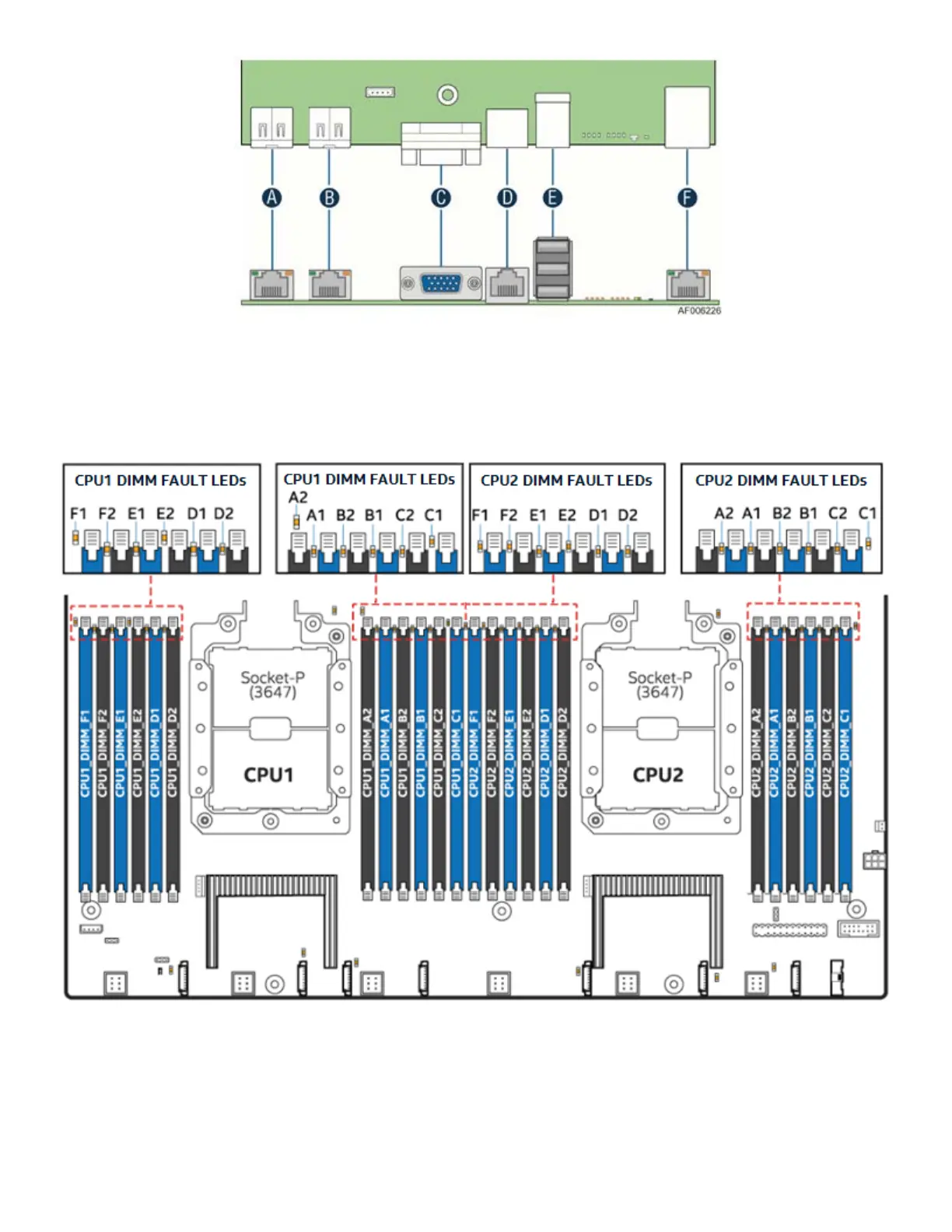

Figure 4. Intel® Server Board S2600WF external I/O connector layout

Figure 5. Intel® Light Guided Diagnostics - DIMM fault LEDs

A – RJ45 network port – NIC #1

B – RJ45 network port – NIC #2

C – Video

D – RJ45 serial A port

E – Stacked 3-port USB 3.0

F – RJ45 dedicated management port
