Intel® Server Board S2600WF Product Family Technical Product Specification
41

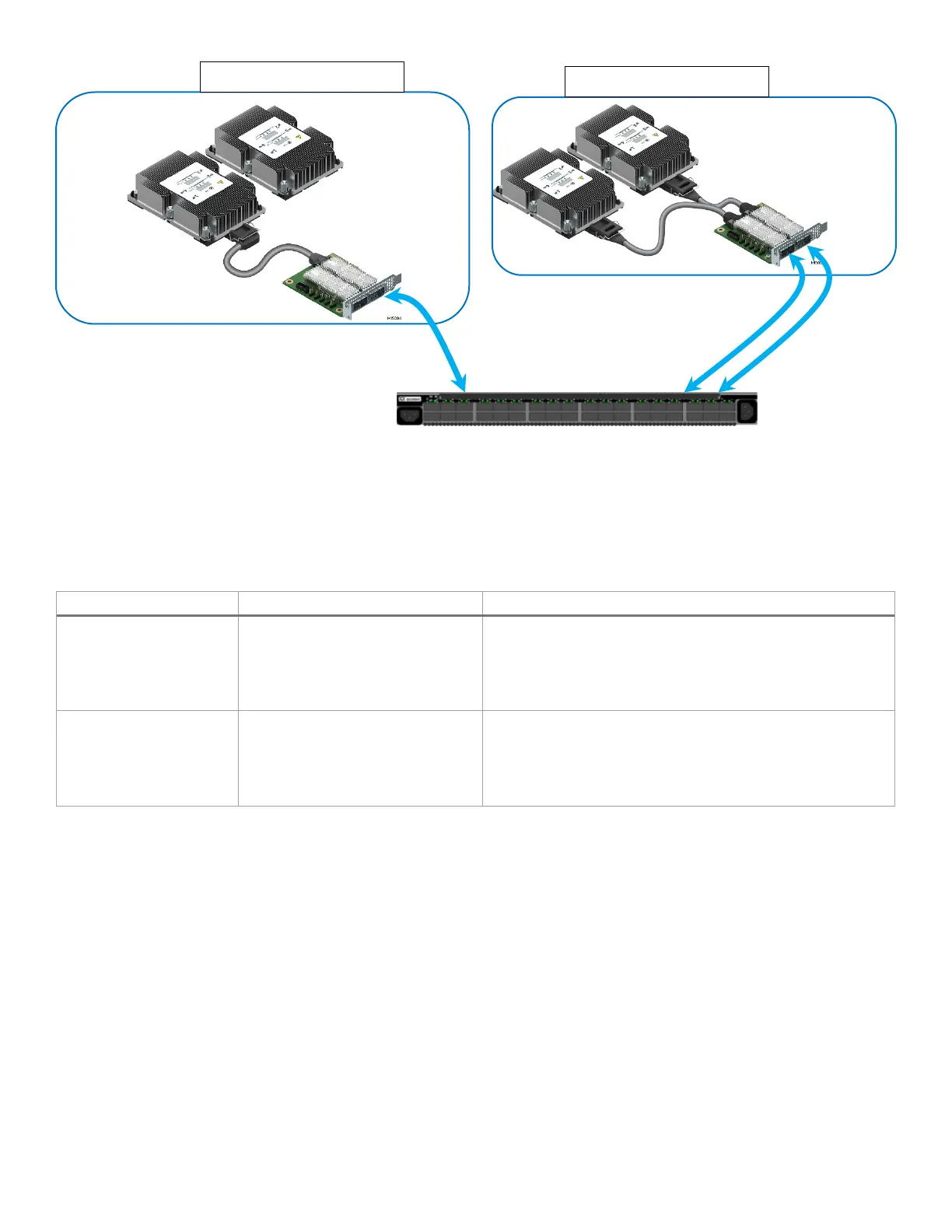

Figure 20. Dual processor configurations with one or two fabric processors
3.3.3 Intel®Omni-Path IFT Carrier Accessory Kits
All necessary components to support up to two fabric processors are included in orderable accessory kits
(AWF1PFABKITM and AWF1PFABKITP).
Intel Product Code (iPC)
Description
Accessory Kit Contents
AWF1PFABKITM Intel IFT Carrier Kit – Mezzanine
1 – Dual port IFT Carrier Mezzanine Card
1 – Internal Omni-Path Cable (CPU1)
1 – Internal Omni-Path Cable (CPU2)
1 – Internal Omni-Path Sideband Cable
2 – Fabric Processor Carriers
AWF1PFABKITP Intel IFT Carrier Kit – PCIe*
1 – Dual Port IFT Carrier PCIe Add-in Card
1 – Internal Omni-Path Cable (CPU1)
1 – Internal Omni-Path Cable (CPU2)
1 – Internal Omni-Path Sideband Cable
2 – Fabric Processor Carriers
Two options for the IFT carrier card are offered:
• Mezannine – Mounted directly to the server board in the designated OCP module mounting location.
• PCIe add-in card – Installed to any available riser slot 2 PCIe add-in slot.
Intel® Omni-Path Fabric Switch
Intel® Xeon® processor
Scalable family with
Integrated Intel® OP HFI
Internal Intel® OP HFI cable
to QSFP Interface card
Intel® OP HFI QSFP
Interface card
Intel® Server S2600WF
Intel® Server S2600WF
Dual Intel® Xeon® processor
Scalable family with
Integrated Intel® OP HFI
Intel® Xeon®
processor Scalable
family

Intel S2600WF Specifications

General

Memory Slots	16 DIMM slots
Chipset	Intel C621
Memory Support	DDR4 ECC RDIMM/LRDIMM
Expansion Slots	Up to 6 PCIe 3.0 slots
Storage Options	SATA, SAS
SATA Ports	Up to 10 SATA ports
CPU Socket Type	Socket P (LGA 3647)
