114 Intel Server Board SE7501BR2 Product Guide
Clearing the Password with the Password Jumper
If the user or administrator password(s) is lost or forgotten, moving the password clear jumper into
the “clear” position clears both passwords. The password clear jumper must be restored to its
original position before a new password(s) can be set. The password clear jumper is located on
jumper block J1H1 on the SE7501BR2 board.
1. Power down the system and disconnect the AC power.
2. Open the server chassis.
3. Move the Password Clear jumper to the Erase position, covering pins 6 and 7 as indicated in
the following diagram.

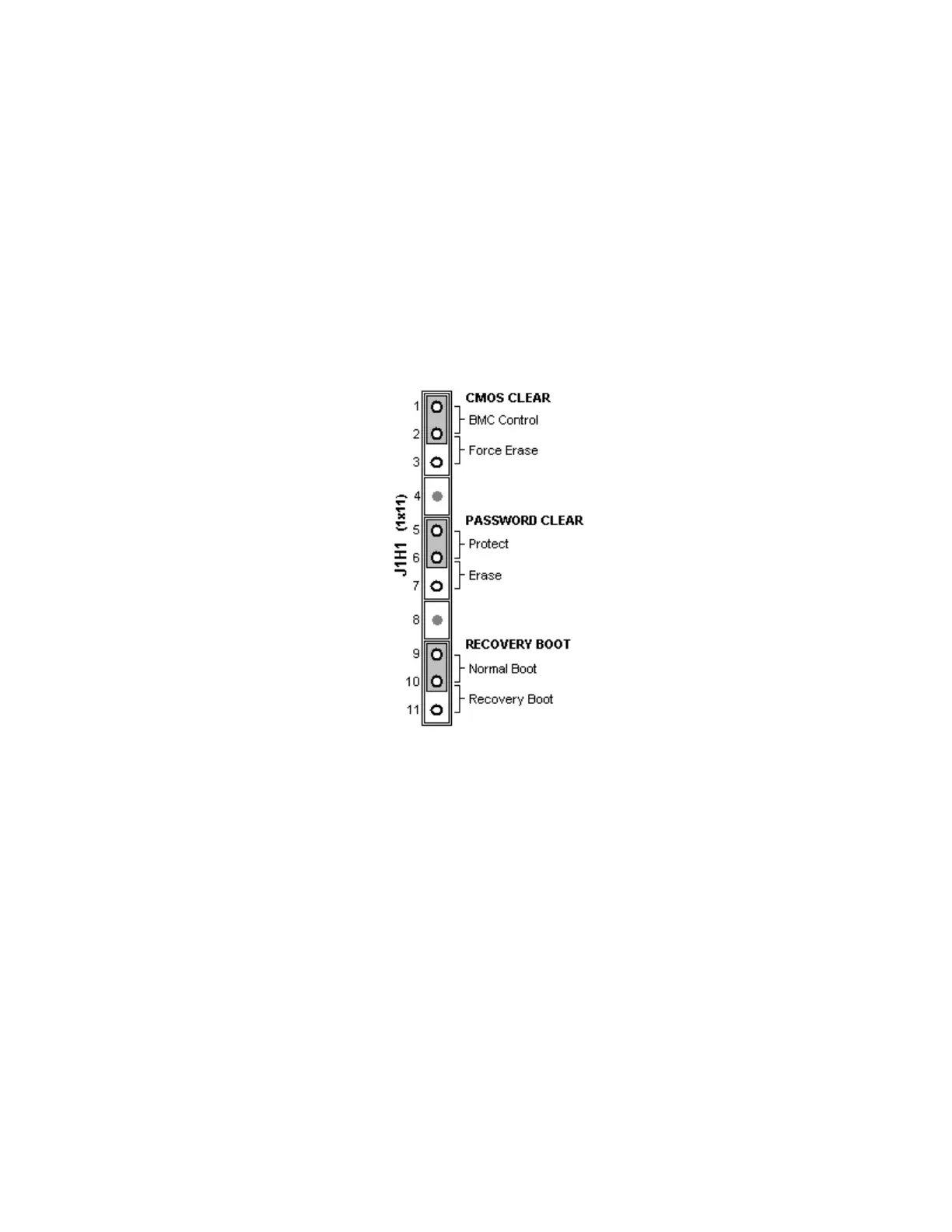

Figure 30. Password Recovery Jumper
4. Reconnect the AC power, power up the system.
5. Power down the system and disconnect the AC power.
6. Return the Password Clear jumper to its original position, covering pins 5 and 6.
7. Close the server chassis.
