42 Intel Server Board SE7501BR2 Product Guide
8. Align the heat sink over the processor and set it into place.
9. Position the retention clips over the plastic tabs at the center of the retention mechanism. Note
that the slot in the clip provides room for side-to-side motion. Push down on the top of each
retention clip while sliding it to over. (Figure 14, 1).
10. Engage each end of the retention clips over the plastic tabs at the sides of the retention
mechanism (Figure 14, 2).
11. Press downward on the ends of the retention clips to lock them into place over the plastic tabs
(Figure 14, 3 and 4).
✏
NOTE
Make sure the center tab engages in the heat sink base.
A
OM15039A
C
C
B
D
E
1
2
3
4

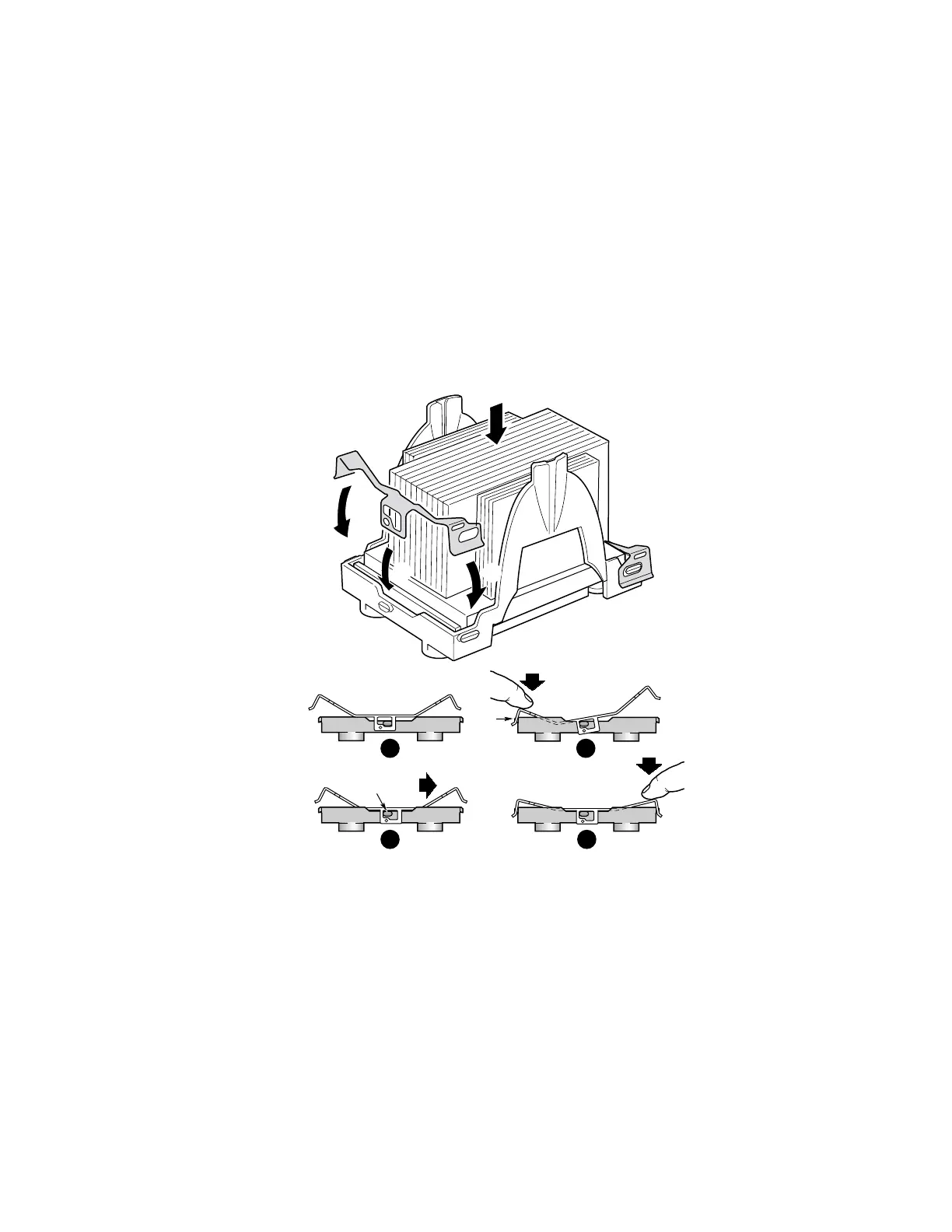

Figure 14. Attaching the Heat Sink and Retention Clip
