Server Board Installation and Upgrades 49

5. Lower the locking bar completely.

OM14135

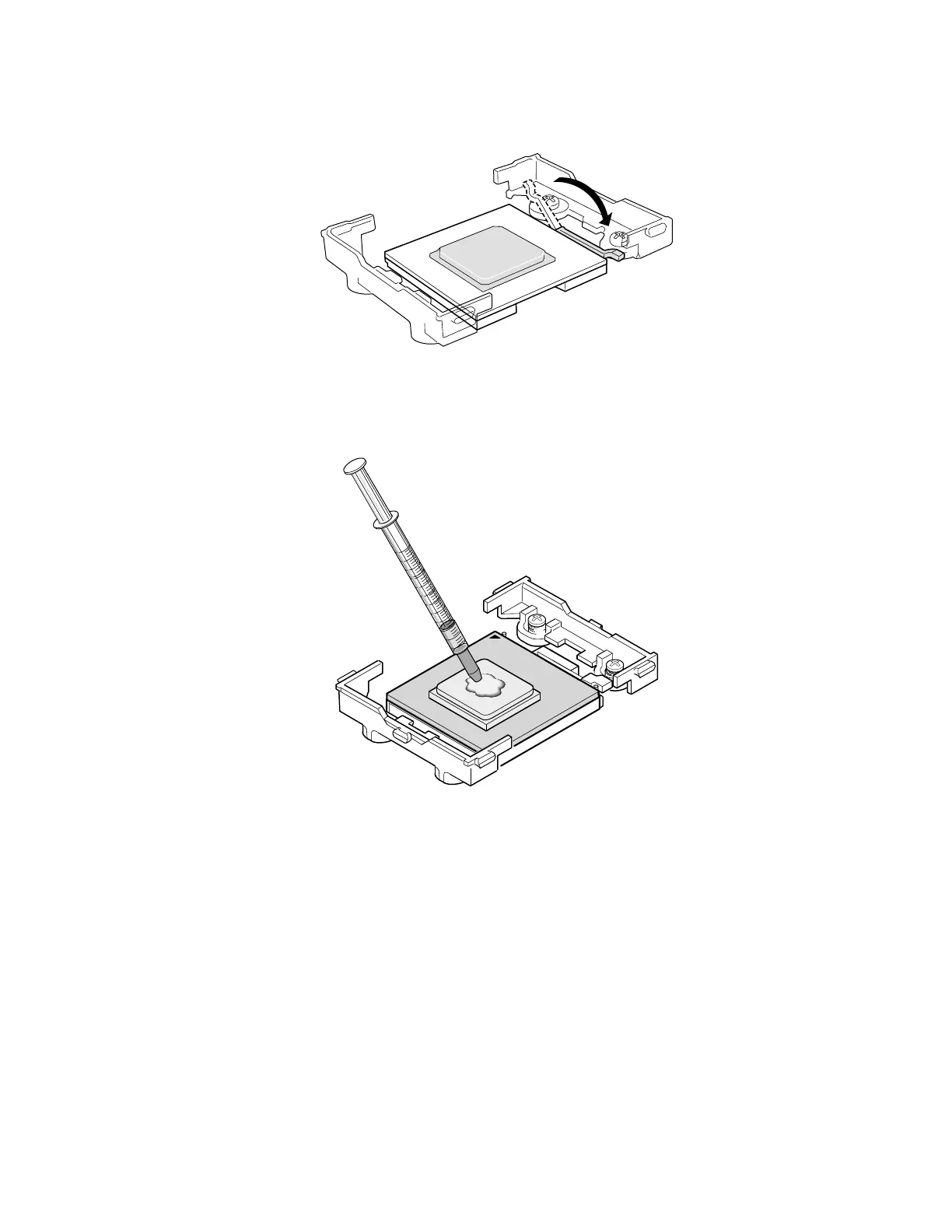

Figure 22. Lower Locking Bar

6. Apply thermal grease to the top of the processor as shown.

OM14366

Figure 23. Applying Thermal Grease
