Configuration Jumpers
OM14670
J106

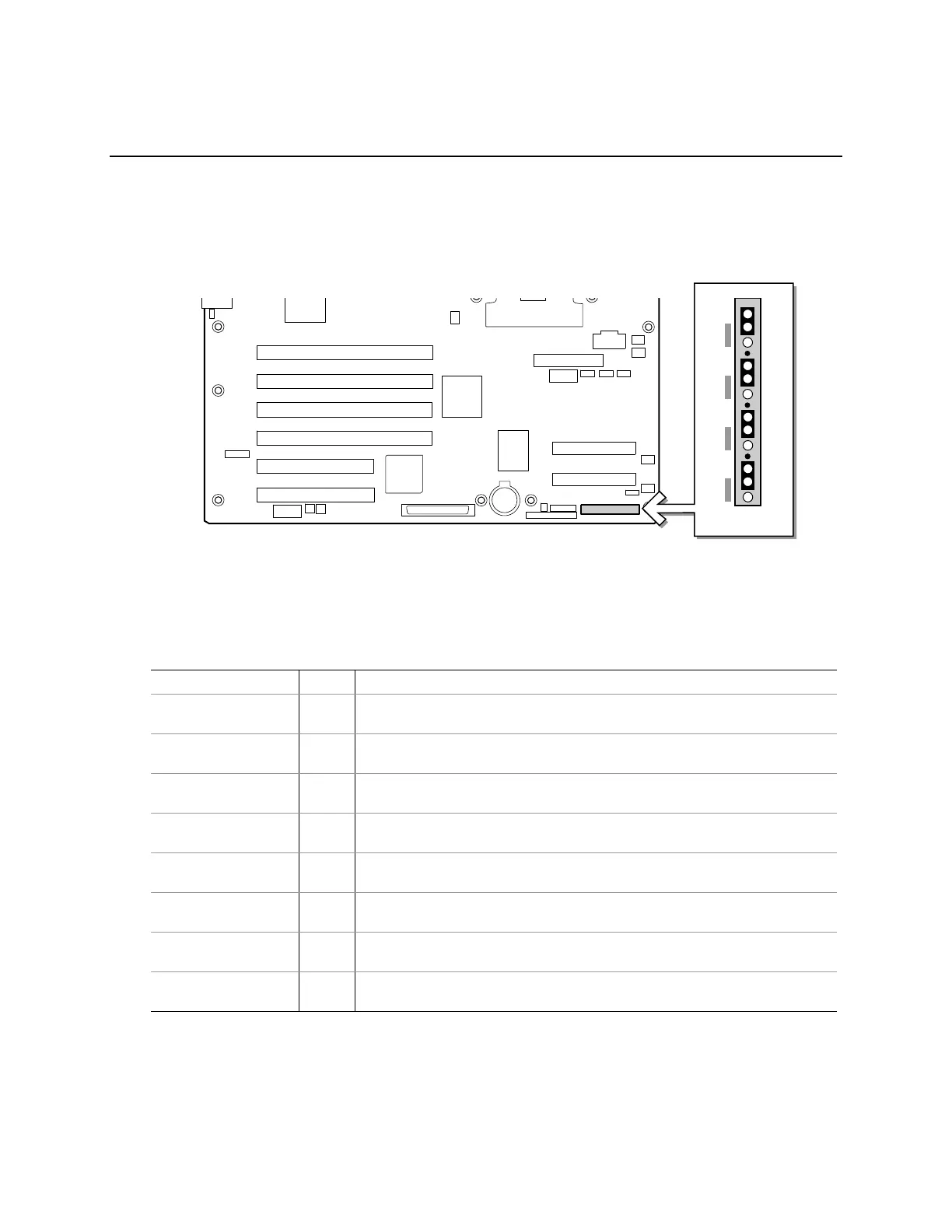

Figure 32. Configuration Jumper Location
Table 33. Configuration Jumper (J1H1)
Jumper Name Pins What happens at system reset
CMOS normal
operation
1-2 These pins are for normal operation.
CMOS clear 2-3 If these pins are jumpered, the CMOS settings will be cleared on the next
reset. These pins should not be jumpered for normal operation.
Password normal
operation
5-6 These pins are for normal operation.
Password Clear 6-7 If these pins are jumpered, the password will be cleared on the next reset.
These pins should not be jumpered for normal operation.
BIOS normal
operation
9-10 These pins are for normal operation.
BIOS Recovery 10-11 If these pins are jumpered, the system will attempt BIOS recovery. These
pins should not be jumpered for normal operation.
BMC normal
operation
1-2 These pins are for normal operation.
BMC Flash EN 2-3 If these pins are jumpered, the system will allow the BMC Flash to be
overwritten by the firmware update utility.
