44 Intel Server Board SE7501BR2 Product Guide

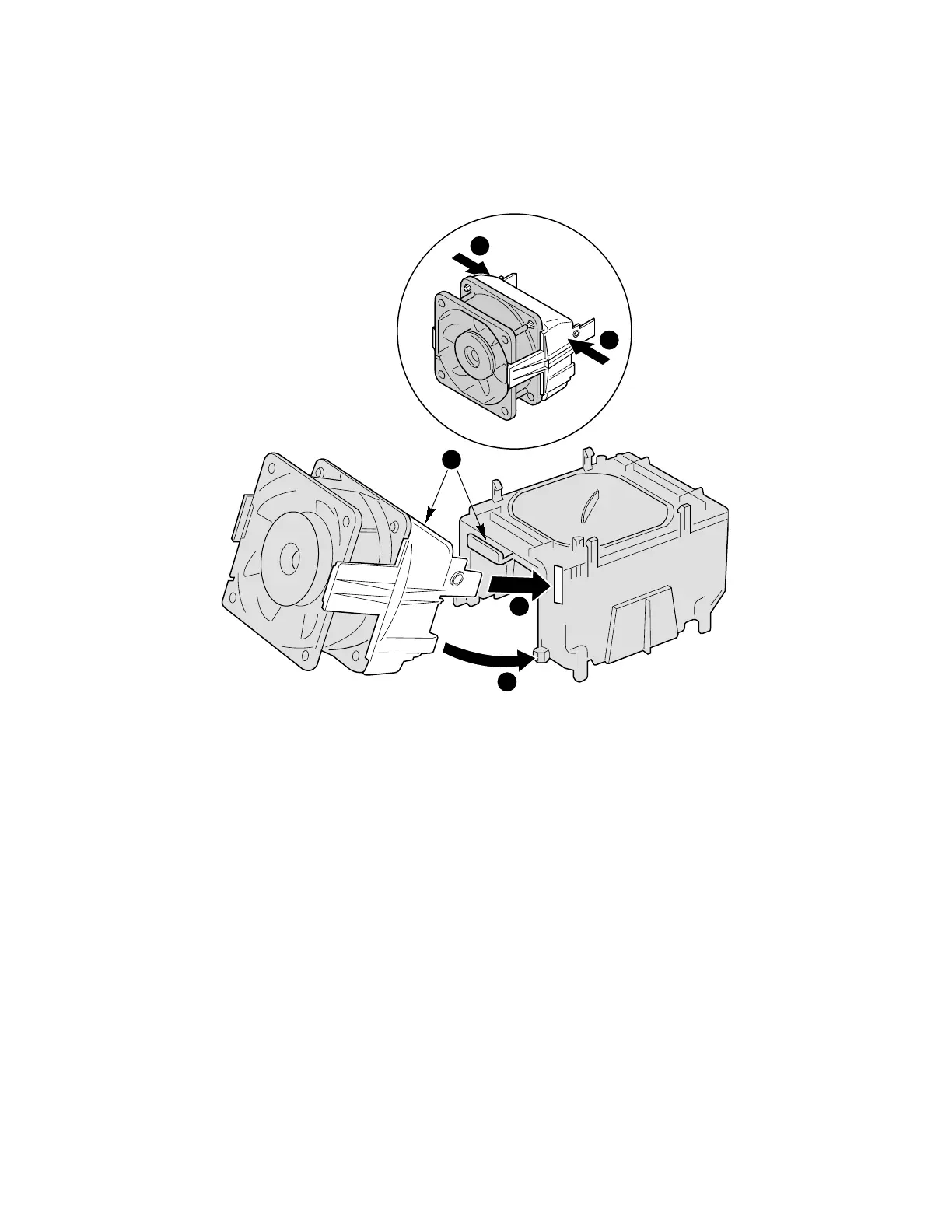

13. Attach the fan assembly to the top of the PWT. Position the fan assembly at approximately a
45
o
angle and engage the clip as shown in Figure 16, 1. Gently squeeze the tabs at the side of
the fan assembly (Figure 16, 2) and insert them into the corresponding slots (Figure 16, 3).
Rotate the fan assembly downward to engage the clips at the bottom (Figure 16, 4).
OM15044
1
3
4
2
2
Figure 16. Attaching the Heat Sink Fan to the Top of the PWT
