Server Board Installation and Upgrades 47
Installing the Processor in the SC5200 Hot Swap Redundant Power Chassis
✏
NOTE
Use these instructions if you are installing a processor in the Intel® Chassis SC5200 HSRP. When
using this chassis, do not install the Processor Wind Tunnel. When installing the processor in any
chassis other than the HSRP, disregard this section and follow the instructions in the section titled
“Installing the Processor and the Processor Wind Tunnel in the SC5200 Chassis or in a Reference
Chassis” on page 40.
Two sets of RM (Retention Mechanism) brackets are included with each SC5200 HSRP chassis.
For each bracket, do the following:
1. Place the bracket (letter A in the following diagram) on the server board.
2. Insert and tighten two screws (letter B in the diagram) to secure the bracket to the board.
OM14144
B
A

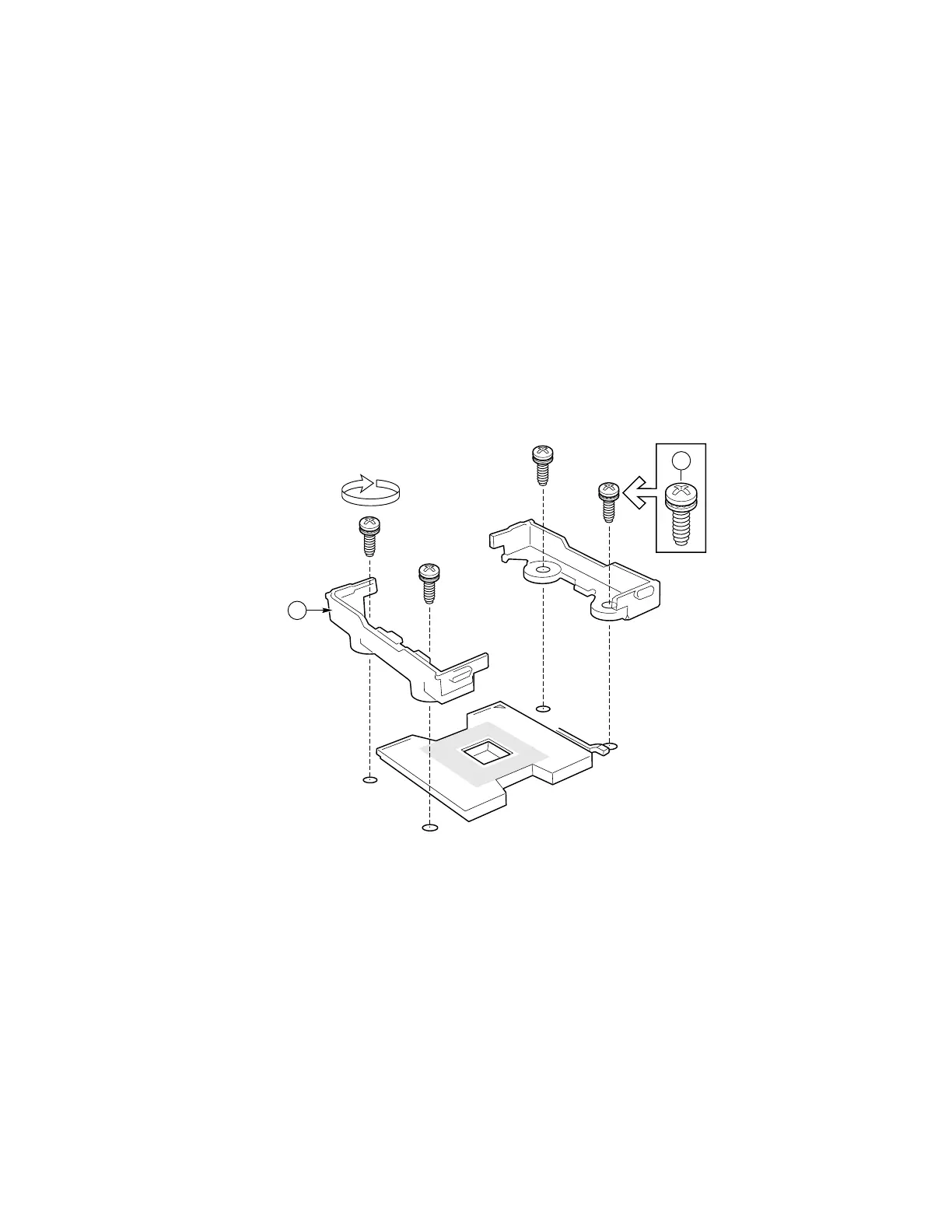

Figure 19. Installing the Processor Retention Brackets
