46 Intel Server Board SE7501BR2 Product Guide
When assembled, the Processor Wind Tunnel will look similar to the figure below. The dashed
lines over CPU2 (Figure 18, B) indicate that this processor assembly is only required when
configuring the server with two processors. The direction of the airflow is indicated by the arrow at
(Figure 18, C).
OM15038
C
A
B

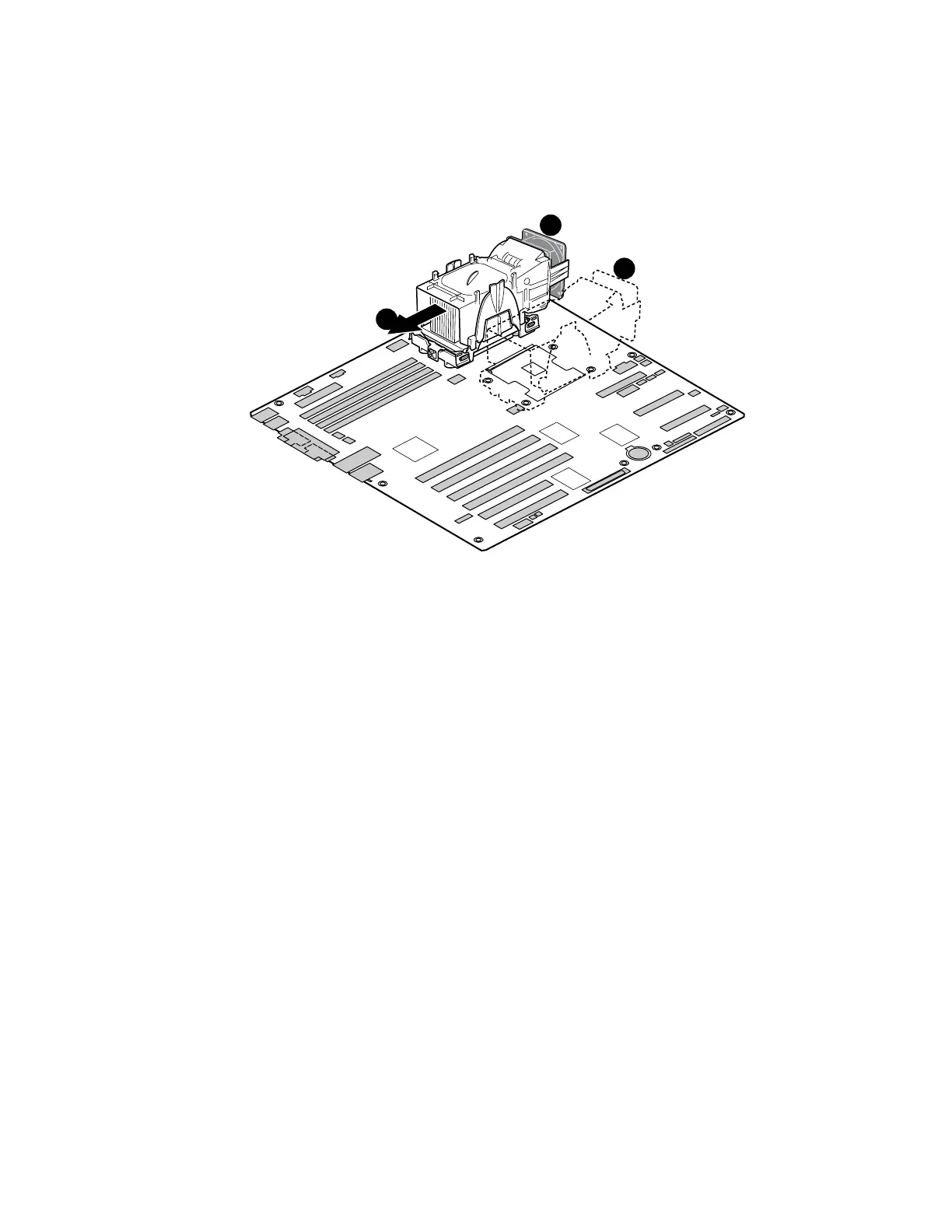

Figure 18. Processor and Wind Tunnel Installed
