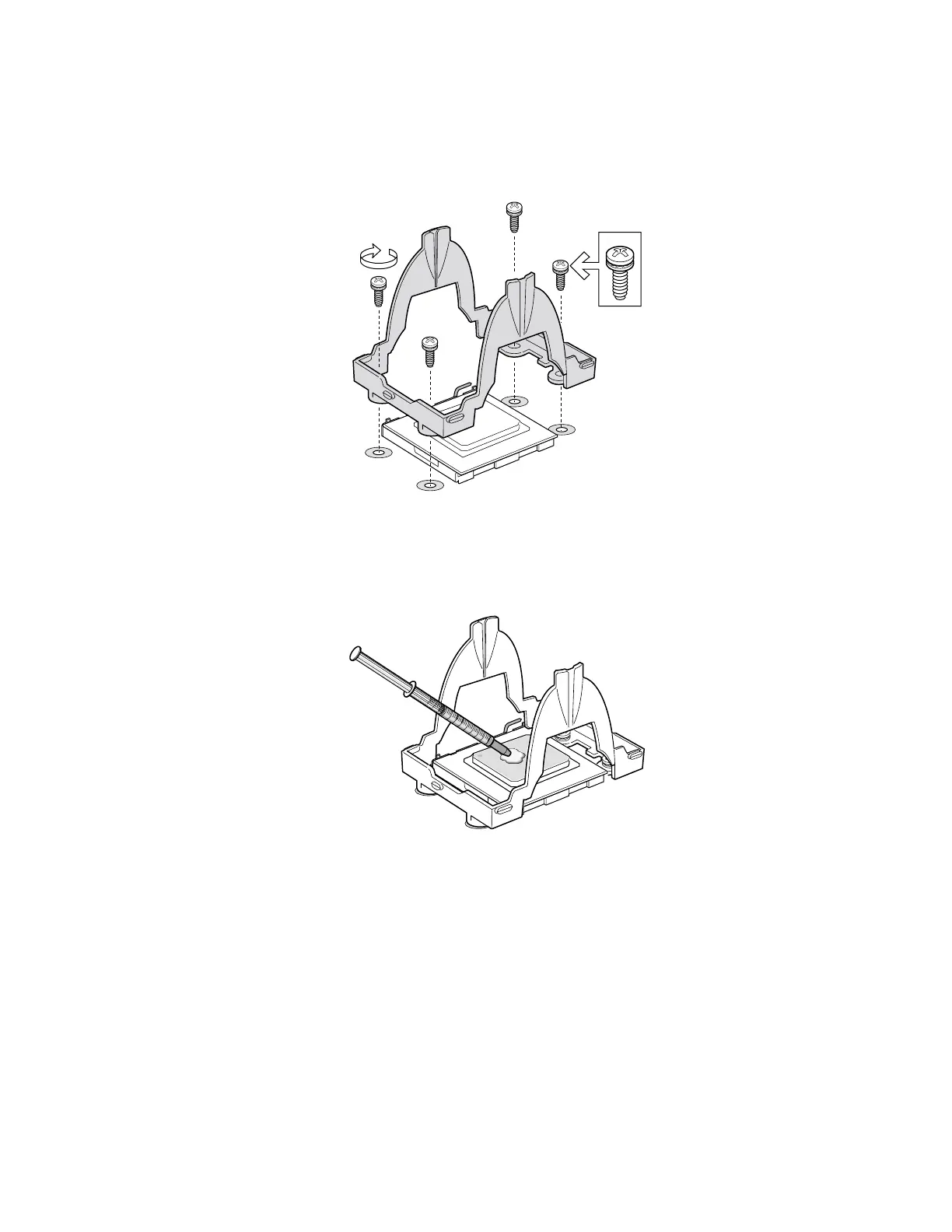

Server Board Installation and Upgrades 41
6. Install the PWT retention mechanism over the top of the processor with the screws provided, as
shown in Figure 12.
OM15037
Figure 12. Attaching Retention Mechanism
7. Apply thermal grease to the top of the processor as shown in Figure 13.
OM15040
Figure 13. Applying Thermal Grease
