12. Attach the fan between the two large plastic tabs at each side of the fan assembly component of
the PWT (Figure 15, B). To ensure that the airflow direction is correct, insert the fan so that
the label shows through the assembled unit (Figure 15, A).
OM15041
A
B
B
C

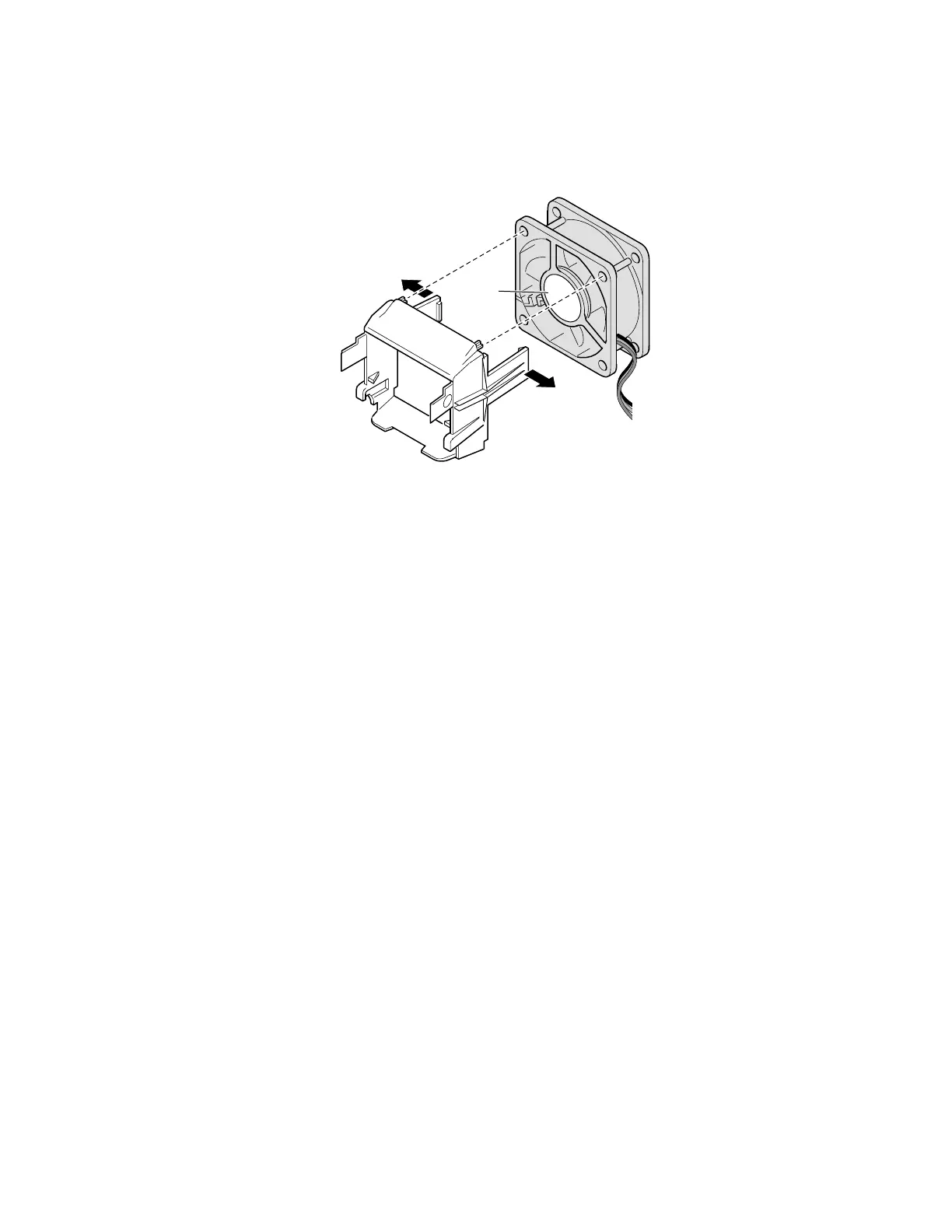

Figure 15. Attaching the Wind Tunnel Fan
