50 Intel Server Board SE7501BR2 Product Guide
7. Position the heat sink above the processor
8. Aligning the raised metal surfaces, place the heat sink on top of the processor.
OM14134

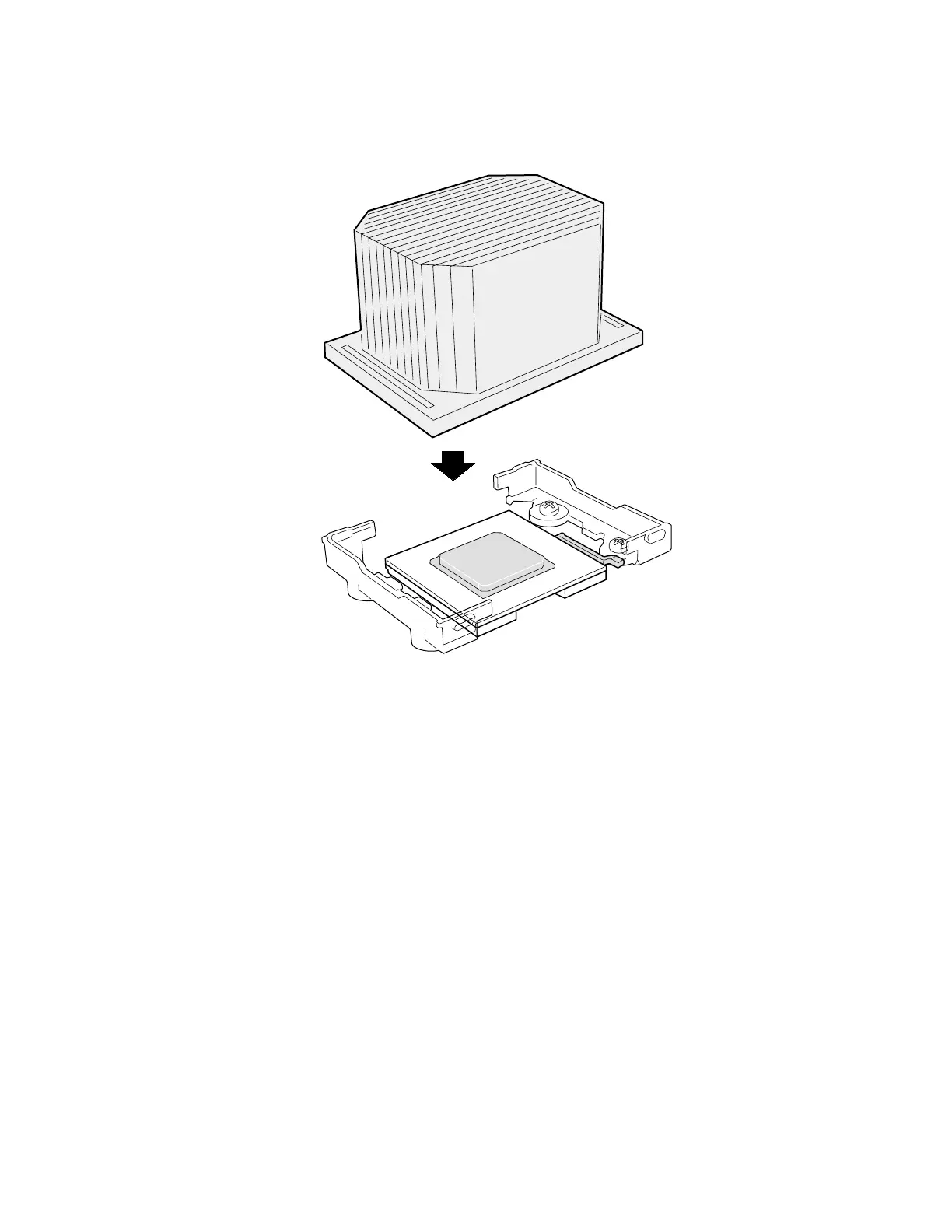

Figure 24. Installing the Heat Sink
