Attaching the Label to the I/O Shield
1. Remove the backing from the label included with your server board.
2. Press the label onto the outside face of the I/O shield.
OM14360
Outside face
of I/O shield
P
A
R
A
L
L
E
L
K
Y
B
D
M
O
U
S
E
10/10
0 M
B
N
E
T
1
2
3
U
S
B

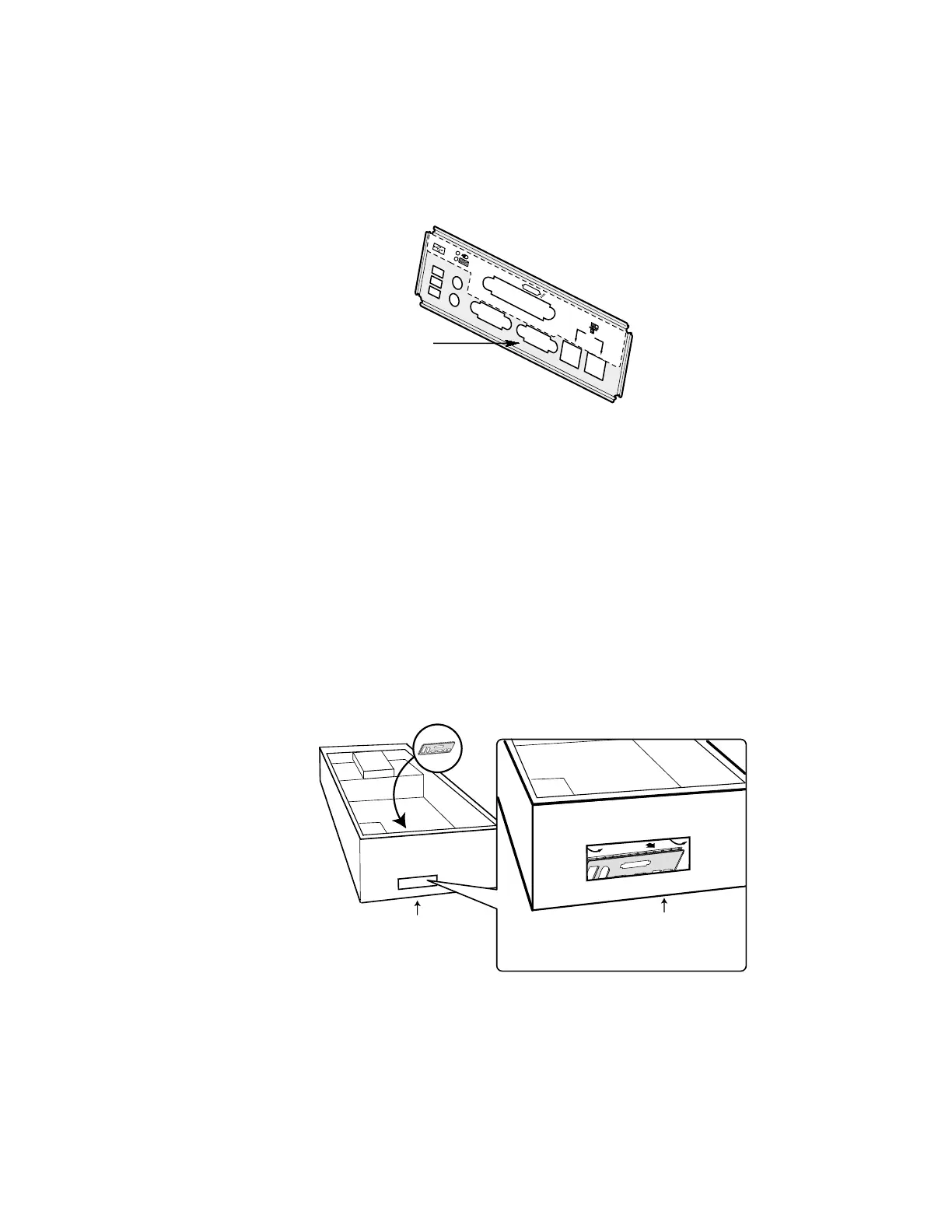

Figure 4. Attaching the Label to the I/O Shield
Installing the I/O Shield
The shield fits the rectangular opening in the back of a chassis. The shield has cutouts that match
the I/O ports on the server board. Install the shield from inside the chassis before installing the
server board.
1. Position one edge so that the dotted groove is outside the chassis wall, and the lip of the shield
rests on the inner chassis wall.
2. Hold the shield in place, and push it into the opening until it is seated. Make sure the I/O shield
snaps into place all the way around.
OM14625
Chassis back
Shield installs
from inside
of chassis.
Rotate into chassis opening
until shield clicks into place.
Insert top edge
as shown.
Chassis back
Figure 5. Installing the I/O Shield
