v130 – Marine Satellite Communication System
28
Ø48 cm (18.9")
Radome Hatch
24.75 cm (9.74")
v110 : Ø48 cm (18.9")
v130 : Ø54 cm (21.3")
v110 Radome Bottom
Ø54 cm (21.3")
Radome Hatch
v130 Radome Bottom
4-Ø13 mm(0.5") Holes
v110
v130
v110 : Ø48 cm (18.9")
v130 : Ø54 cm (21.3")
24.75 cm (9.74")
BOW direction
BOW direction
BOW direction

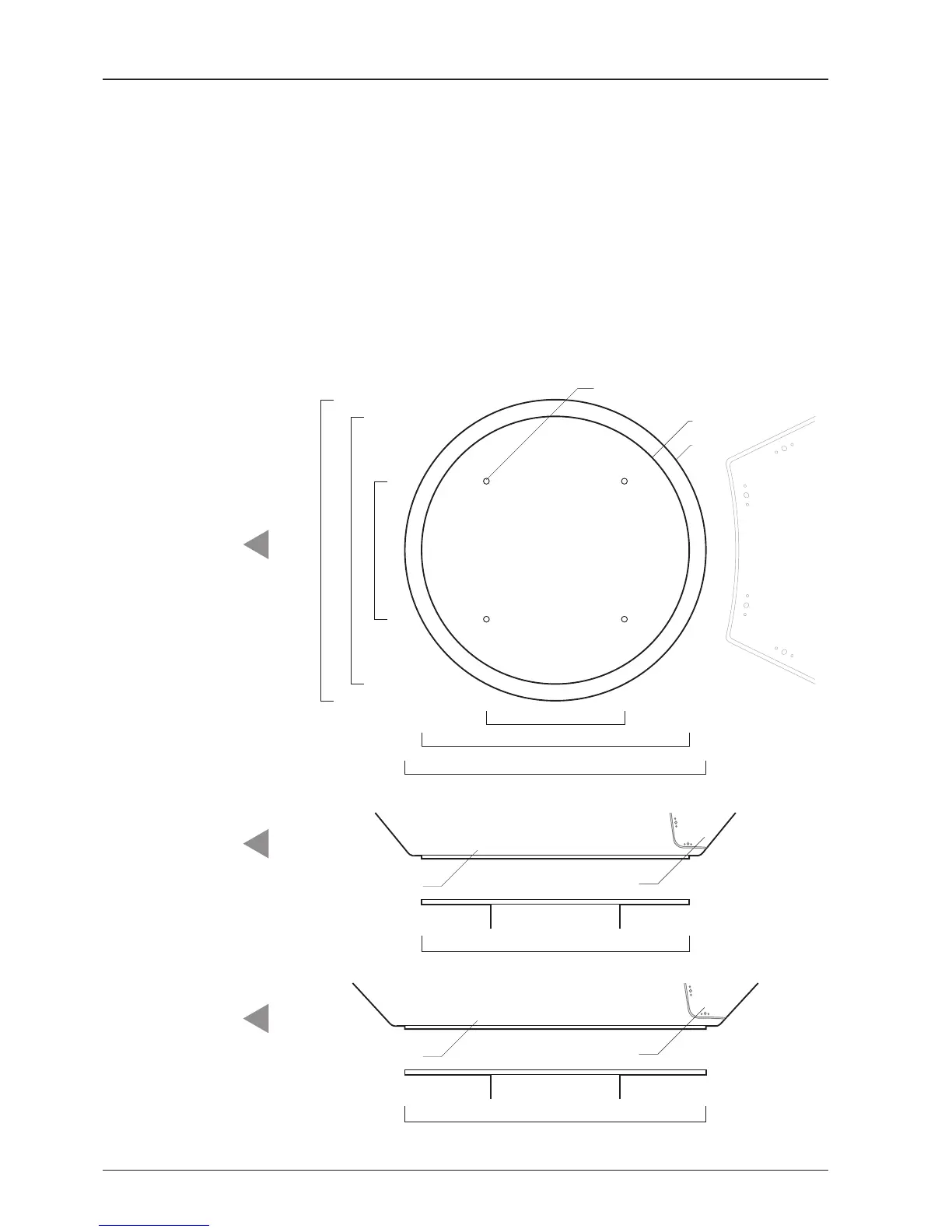

Antenna Mounting Templates
The mounting holes must be in the exact same place as shown in the diagram
below. The radome should be positioned with the Bow marker aligned as close
as possible to the centerline of the ship. Variation from actual alignment can be
compensated with the "BOW Adjust" settings in the ACU.
