Ship Gyro Connection
Connecting the System with a Ship’s Gyro
The ship’s gyrocompass provides true heading input to the antenna which easily
allows the antenna to target and acquire the desired satellite. Intellian always
recommend to connect a ship’s gyro to the antenna through the gyro interface on
the ACU. If the ship’s gyrocompass output is other than NMEA 0183 and Synchro
separate purchase of a gyro converter is required.
• NMEA 0183 Gyro Compass Interface Cable (Customer Supplied)
• Type: 2 conductors for NMEA 0183
• NMEA heading sentence: xx HDT (4800 Baud, 8, N,1)
If there is no HDT sentence then use HDM sentence instead.
WARNING: Determine the type of gyrocompass OUTPUT on the ship, assure that the
GYRO TYPE parameter is set correctly (refer to the operation section of this menu).
Heading in most cases will be 000.0 and you will have to enter the initial value of ships
current value whenever you turn on the ACU. The ship’s heading is not required to
input when your system is connected to NMEA or 1:1 synchro gyrocompass output.

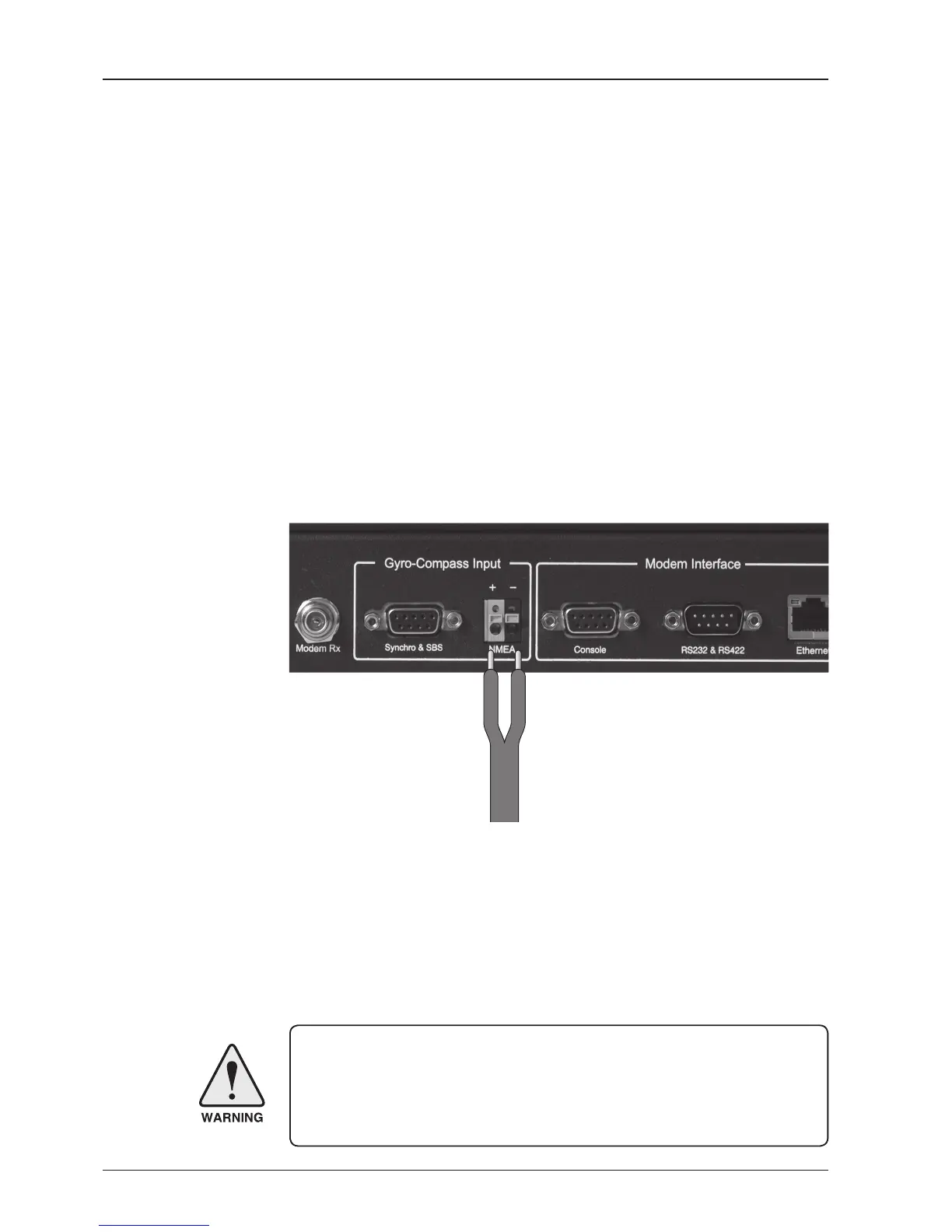

Ship’s Gyro Connection
Strip the cable for 5 mm (0.2")
Do not solder the cable
To Next Page
