Intellian v130 User Manual

v130 – Marine Satellite Communication System
94

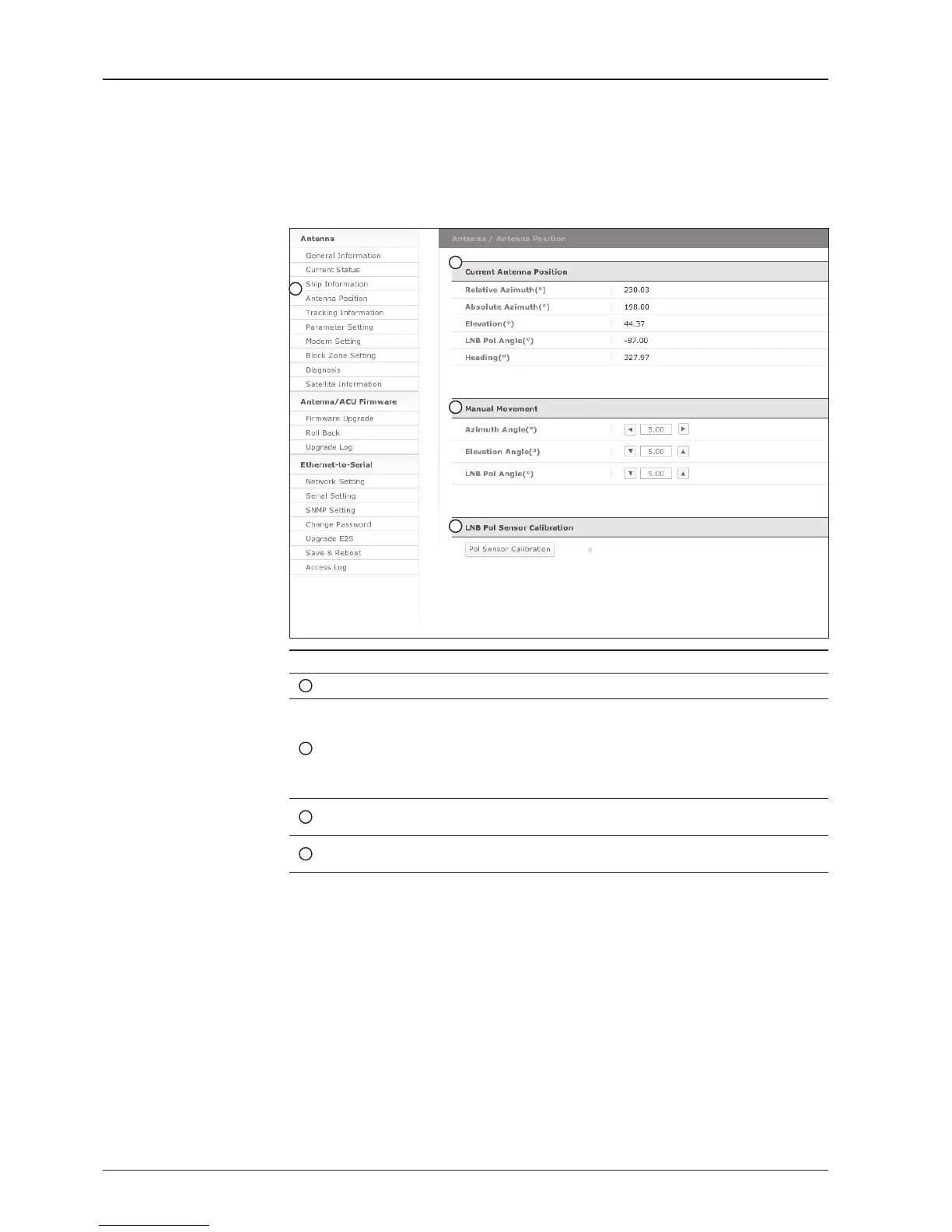

Antenna Position
No. Item Description
1
Antenna Position
Display current antenna position.
2
Current Antenna Position
Display current antenna position.
- Relative Azimuth: display antenna relative AZ angle.
- Absolute Azimuth: display antenna absolute AZ angle.
- Elevation: display antenna elevation angle.
- LNB Pol Angle: display LNB pol angle.
- Heading: display ship’s heading information.
3
Manual Movement
Move antenna azimuth and elevation angles and
LNB pol angle to nd the desired satellite manually.
4
LNB Pol Sensor Calibration
Calibrate the LNB pol angle when the control board,
potentiometer or belt is replaced.
1
2
3
4
