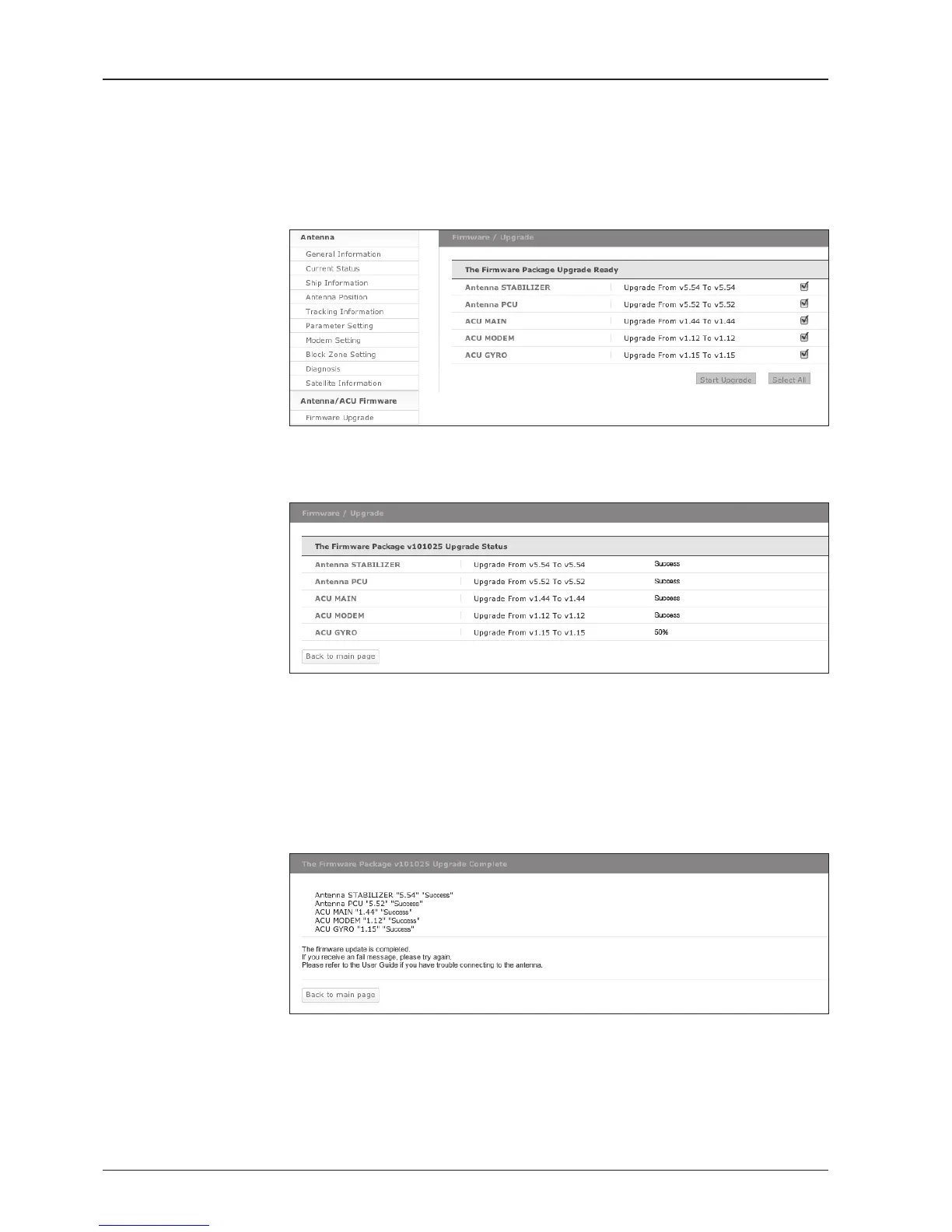

5. It will display information about the upgrade process status on full

screen.

Firmware upgrade

status page

Upgrade process

status page

6. If the rmware is successfully upgraded, it will display “The rmware update is

completed.”

7. Click on "Back to main page" to go out of the screen.

To verify the upgraded rmware version, go to the right-side menu of "General

information"

Upgrade

complete page
