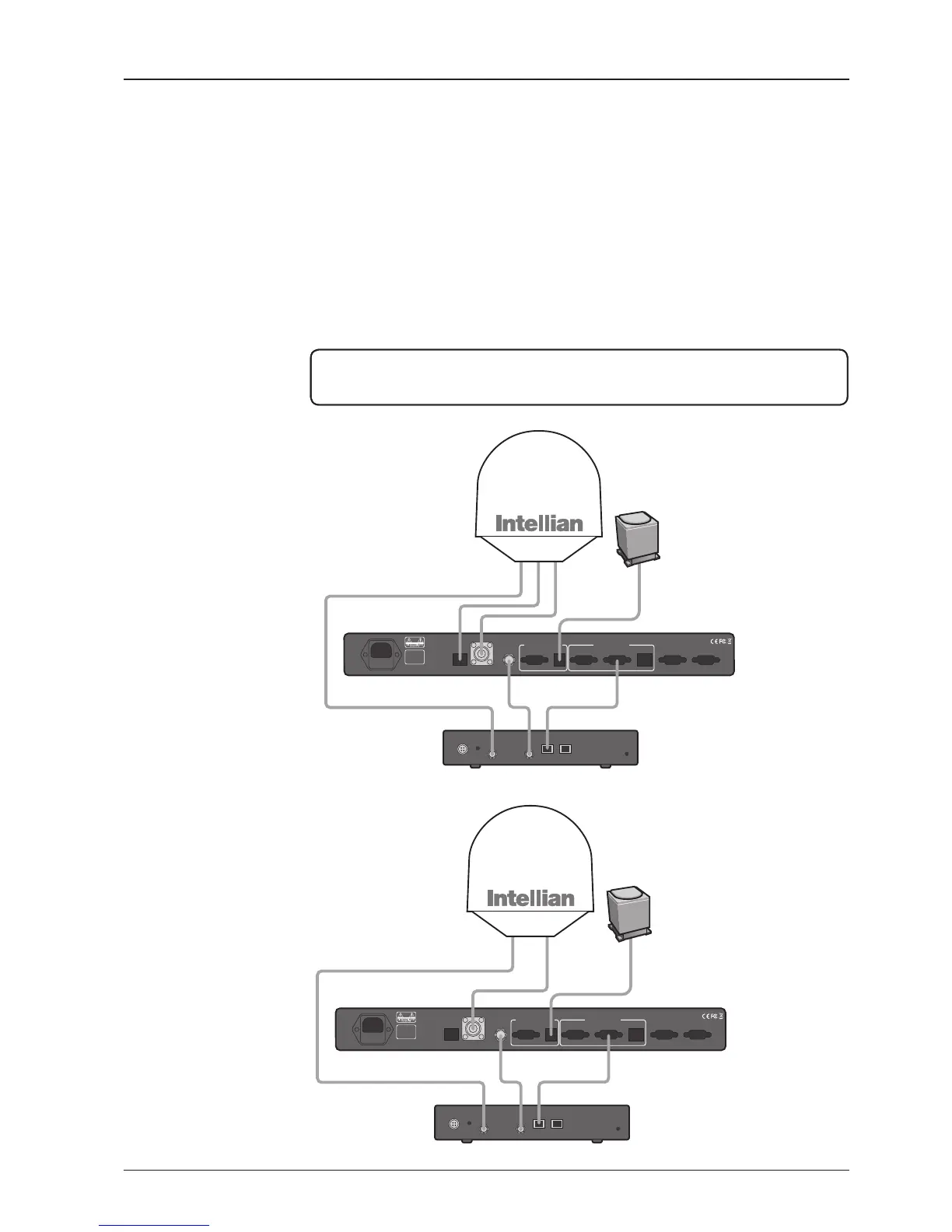

System Congurations
For your satellite communication system to work properly, the system will have to
be connected with all of the provided components properly, as shown in the gure
below. Separate purchase of a satellite modem, ship’s gyrocompass, and Intellian
Dual VSAT Mediator are required.
Basic System
Conguration
(8W BUC)
Basic System
Conguration
(4W BUC)
MODEM Interface
Gyro-Compass Input
RS-232/RS-422
Antenna Rx
24 V == 5 A
BUC
Power
Modem Rx
Satellite Modem
(Not supplied)
Antenna Control Unit
Modem InterfaceModem RX
Antenna TX
Antenna RX
BUC
Power
AC 100 ~ 240 V
(50~60 Hz 4A)
Ship’s Gyrocompass
(Not supplied)
NOTE: BUC power should set to ON from the modem when you connect to a 4W
BUC. BUC power should set to OFF from the modem when you connect to an 8W
BUC.
MODEM Interface
Gyro-Compass Input
RS-232/RS-422
Antenna Rx
24 V == 5 A
BUC
Power
Modem Rx
Satellite Modem
(Not supplied)
Antenna Control Unit
Modem InterfaceModem RX
Antenna TX
Antenna RX
AC 100 ~ 240 V
(50~60 Hz 4A)
Ship’s Gyrocompass
(Not supplied)
To Next Page
