Appendix C — Setup Parameters (Fingerprint)
EasyCoder PD42 Printer User’s Guide 93
Print Window: 8 dots/mm standard printhead
Media Type
The Media Type parameter controls how the label stop sensor
(LSS) and the media feed work. There are five media type
options, see also Appendix B, “Media Specifications”:
• Label (w gaps) is used for adhesive labels mounted on liner.
• Ticket (w mark) is used for labels, tickets, or continuous
stock provided with black marks at the back.
• Ticket (w gaps) is used for tickets and tags with detection
slits.
• Fix length strip is used for continuous stock where the length
of the print window decides the length of media to be fed out.
• Var length strip is used for continuous stock. The size of the
print images decides the length of each copy.

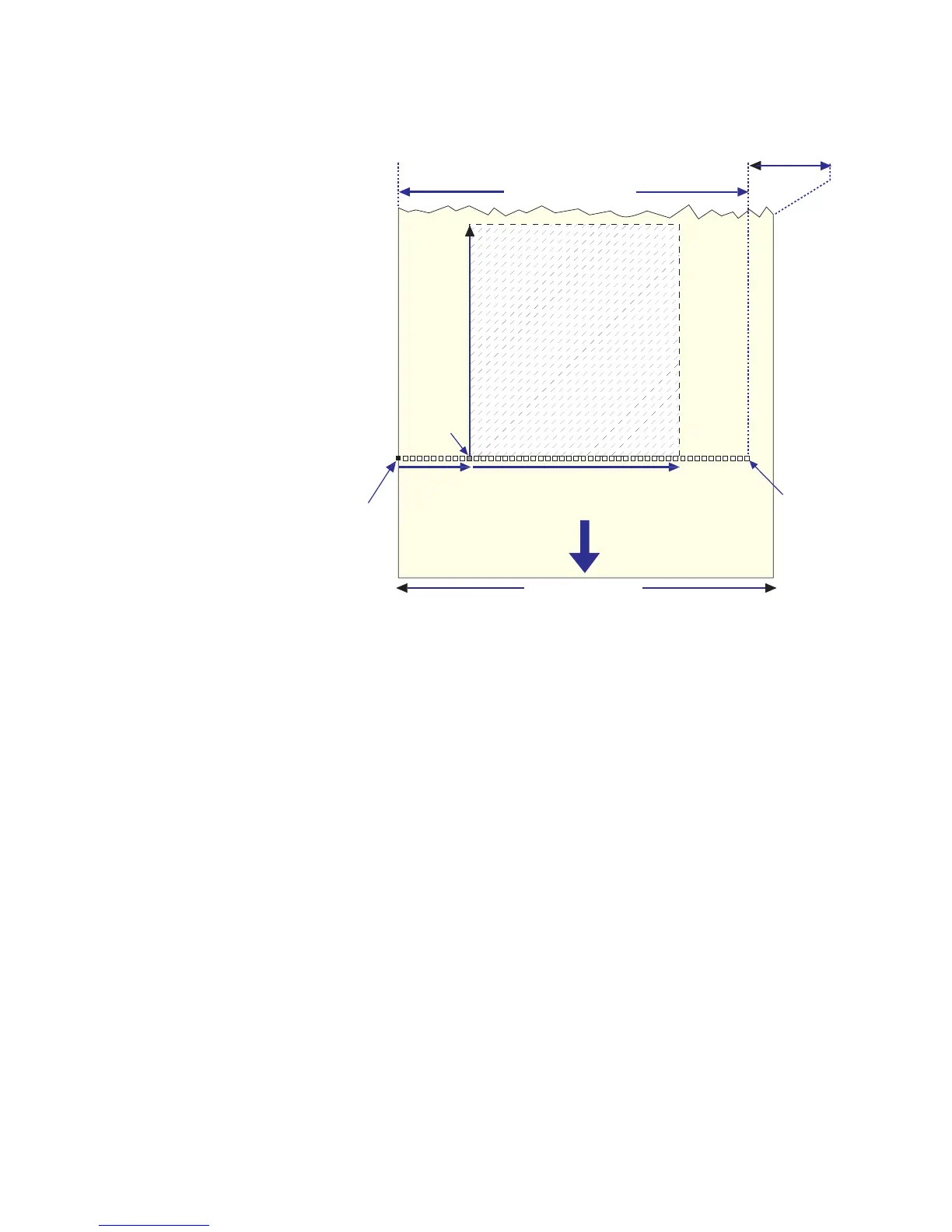

FEED
DIRECTION
Dot #0
Dot-line
on printhead
X-start Width (1-832 dots)
Origin
Length
Dot #831
14 mm (0.55 in)
PRINTPRINT
WINDOWWINDOW
PRINT
WINDOW
max. 104.0 mm (4.095 in)
25-118 mm (1-4.65 in)
