PM43 Service Work Instructions
PM43,PM43C
SWIPM43x-000
Page
64 of 70
Intermec Proprietary Document

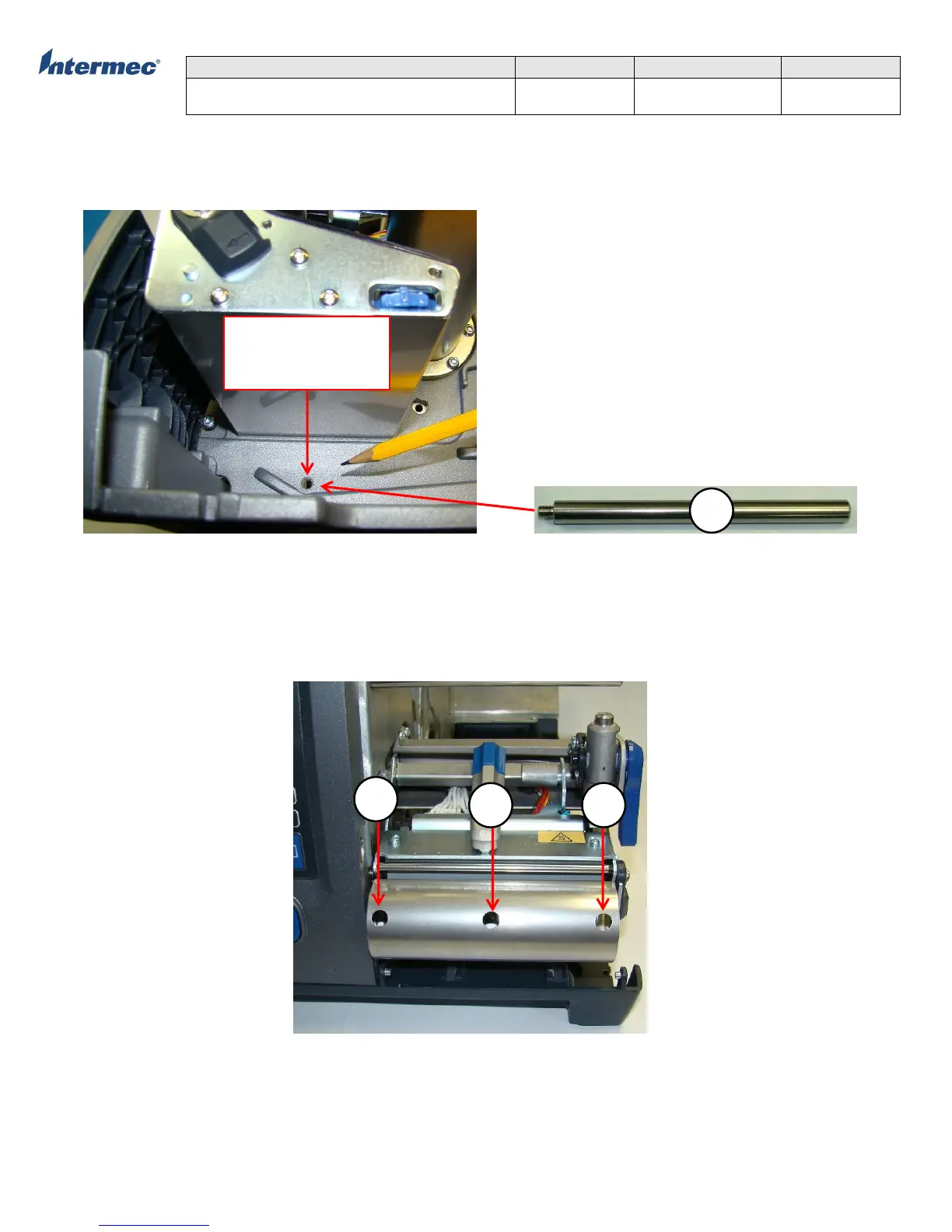

Media Shaft Divert Installation
1. Open media cover
2. Hand screw media shaft divert to the spine (main deck).
Figure 6 – Location of media shaft divert Media Shaft Divert
Batch Plate Installation
1. Remove front media door. See page 26 on how to remove the front media door.
2. Remove tear bar and re-use the 3 Torx screws for batch plate installation
3. Install batch plate. See Figure 5.
Figure 7 – Batch Plate Installation
7
6
Media Shaft Divert
Installation
Location
9
9
9
